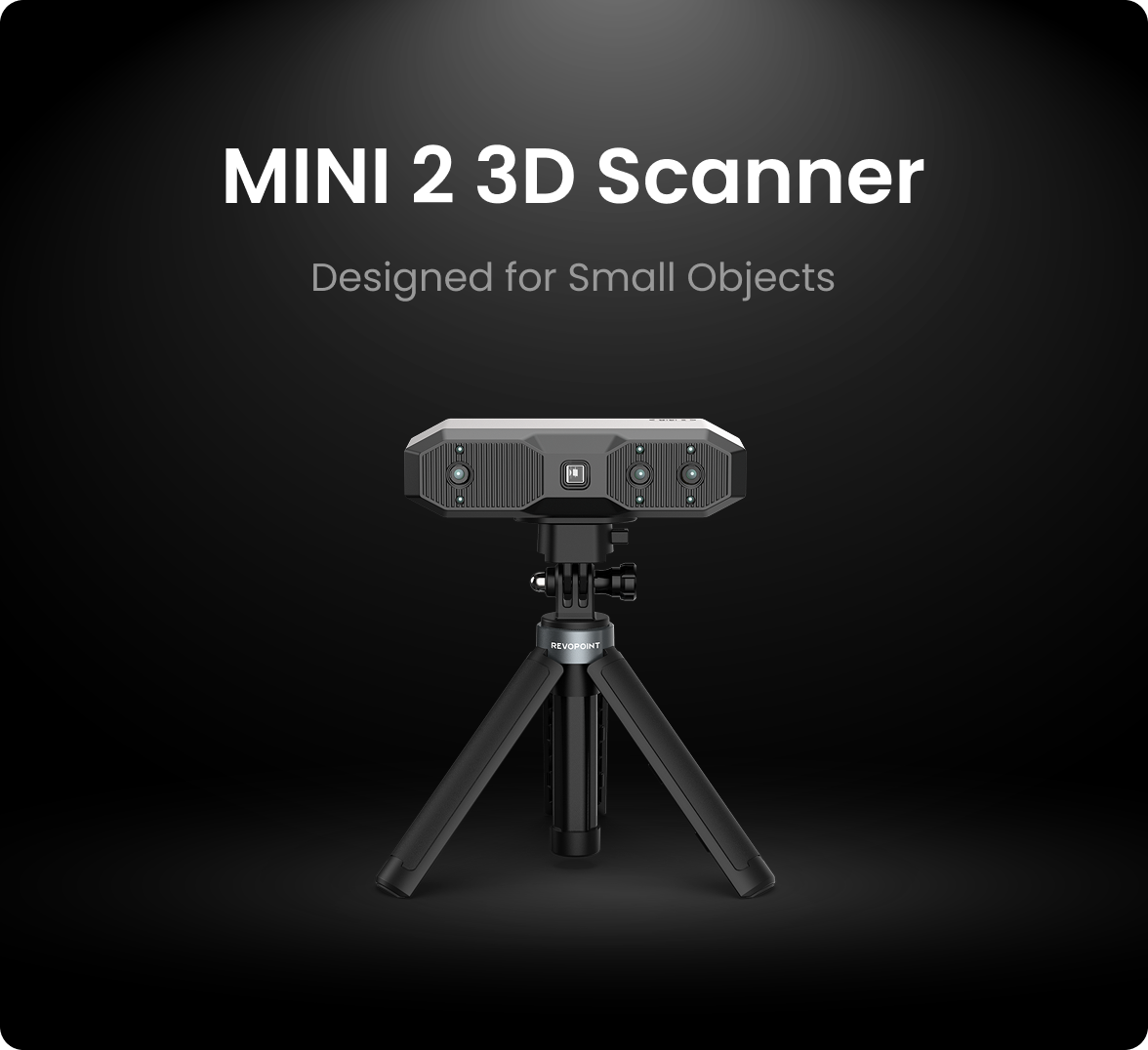

MINI 2 3D Scanner

Unleash Precision, Embrace Innovation
Buy Now

Overview

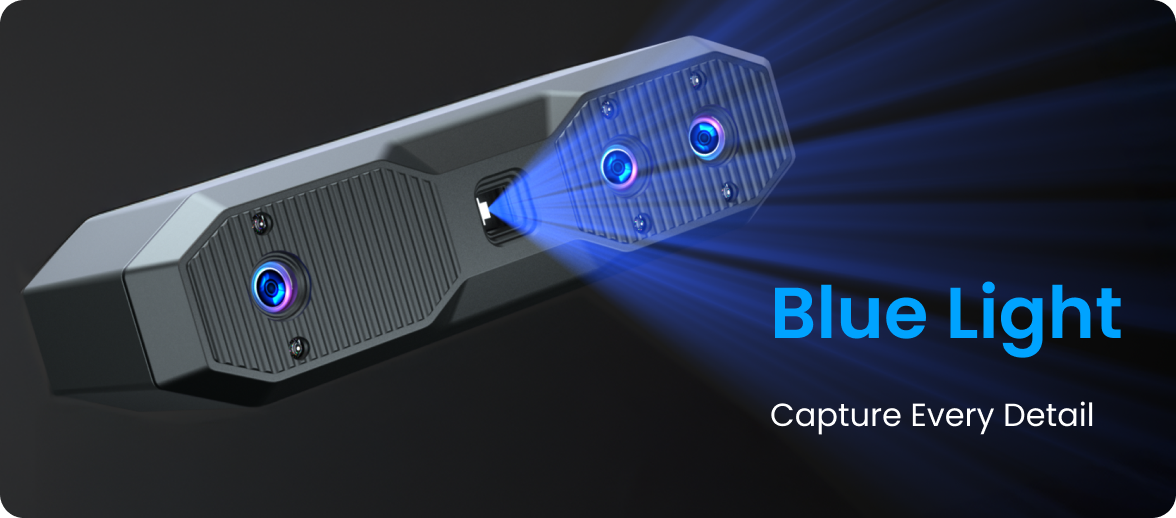

Total Precision

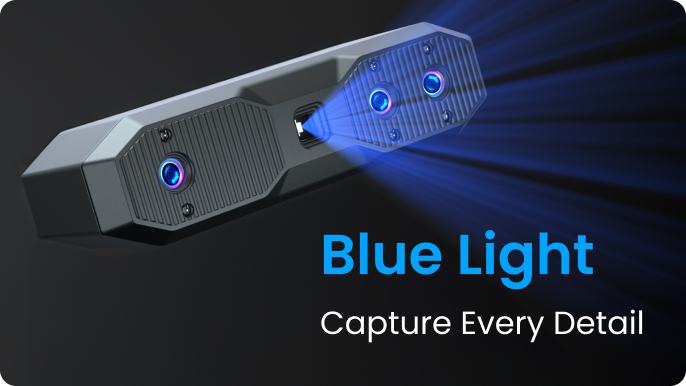

When repeatability matters, MINI 2 is ready with its ultra-high resolution blue light technology to consistently capture objects with a single-frame precision of up to 0.02 mm.

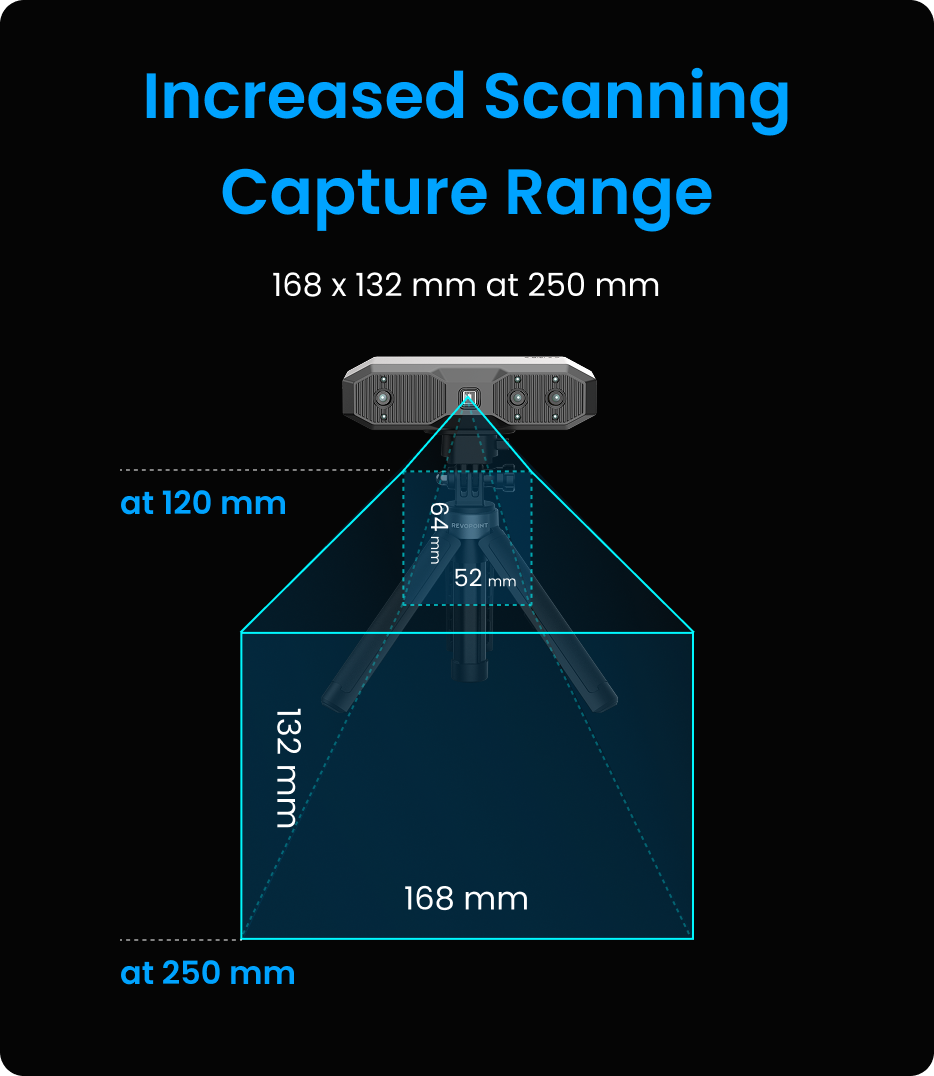

Extended Single Capture Range

Enjoy better tracking and faster scans with MINI 2's bigger working distance of 120 ~ 250 mm and 168 x 132 mm single capture range, streamlining the scanning process.

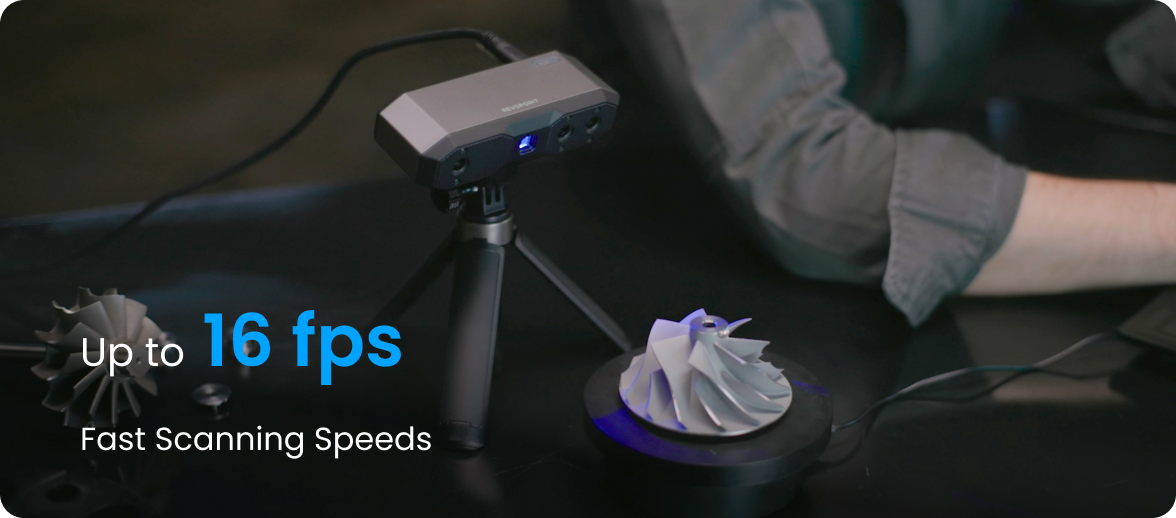

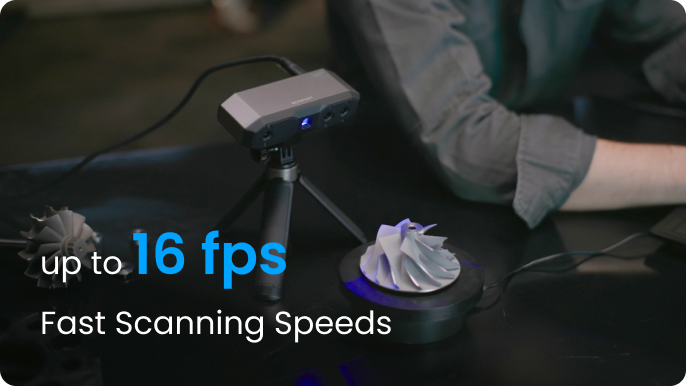

Fast 16 fps Scanning Speeds

Jumpstart your projects by creating ultra-detailed 3D models in seconds with MINI 2's fast scanning speeds of up to 16 frames per second.

Uniform Color Scans

Capture crispier, more uniform color scans with MINI 2's new higher-resolution RGB camera and Flash LEDs to evenly light objects and remove shadows.

Resolution

2 Megapixels

Depth-camera

RGB-camera

IMU Stabilization

Experience improved tracking and frame stitching with MINI 2’s advanced 9-axis IMU, eliminating faulty frames caused by sudden movement or unsteady hands.

CPU

2 core
1.8 GHz

Position Sensors

9-axis IMU

Faster Connectivity

Get lower latency and more stable mobile scanning with MINI 2's new Wi-Fi 6 connection and plug-and-play setup with its USB Type-C connection.

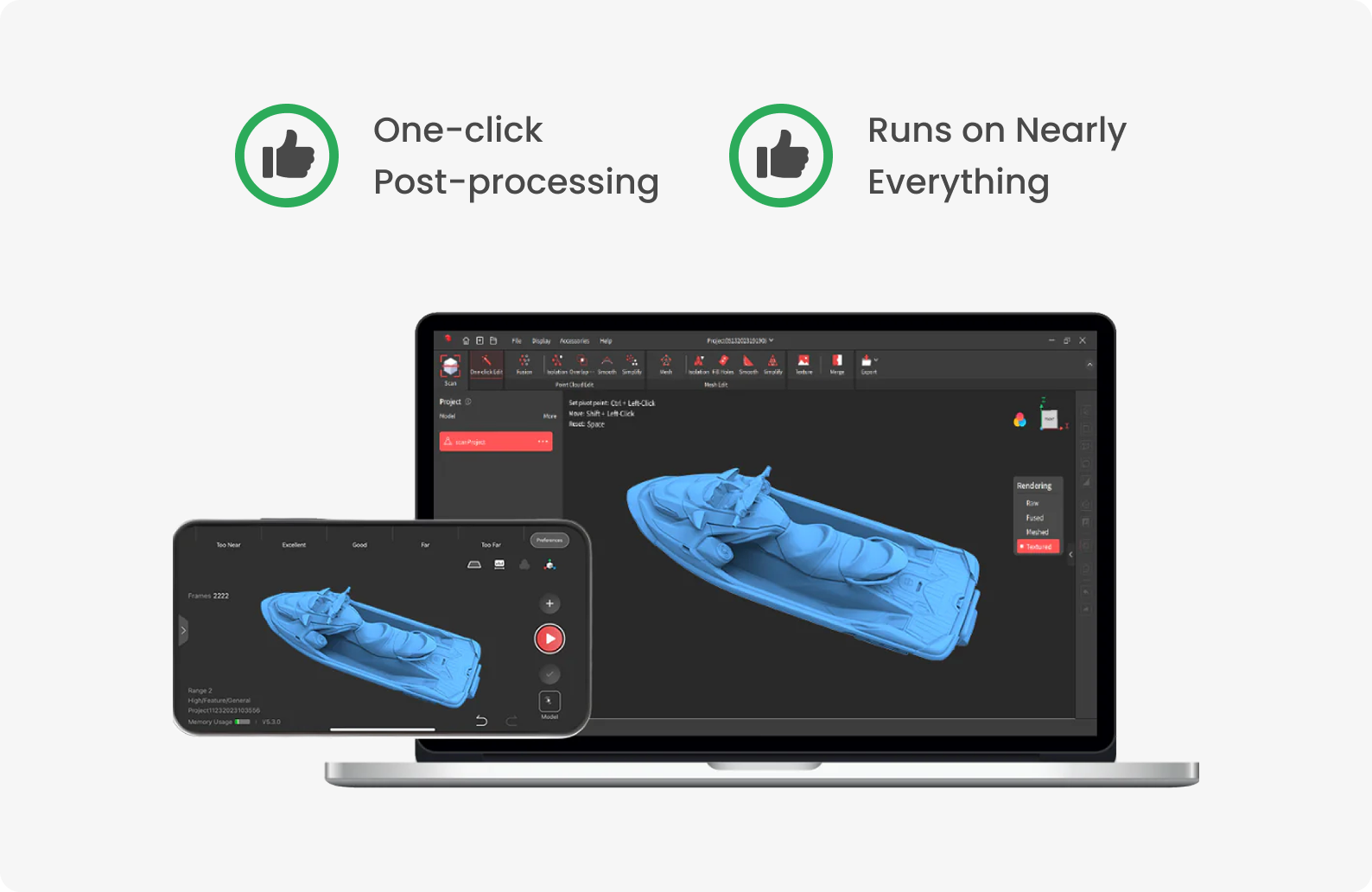

High-Performance Software

Revo Scan 5 is your portal to intuitive 3D scanning and powerful editing. And it runs on nearly everything, with full support for iOS, Android, Windows, and macOS devices. Export your models in PLY, OBJ, STL, ASC, 3MF, GLTF or FBX formats for compatibility with most CAD, 3D modeling, and slicer software.

Revo Scan 5

Integrates model scanning, post-processing, and multi-model alignment functionalities

Learn More >

Models Made With MINI 2

Applications

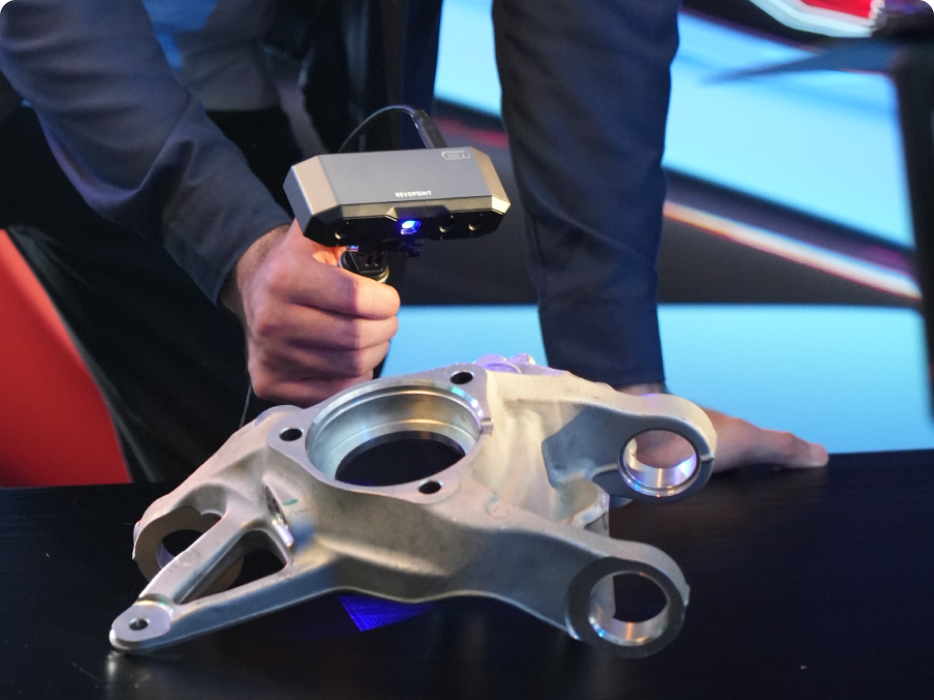

Quality Control

Speed up projects and production by reliably capturing every dimension, surface flaw, and imperfection with clarity.

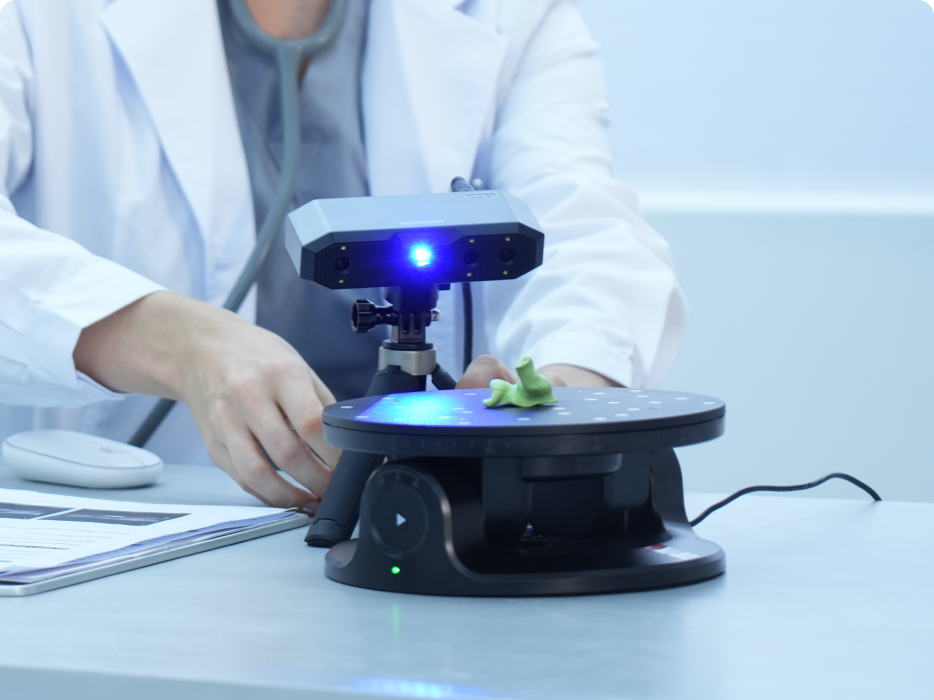

Customized Healthcare

Quickly capture dental molds or ear canals to create perfectly fitting customized healthcare solutions.

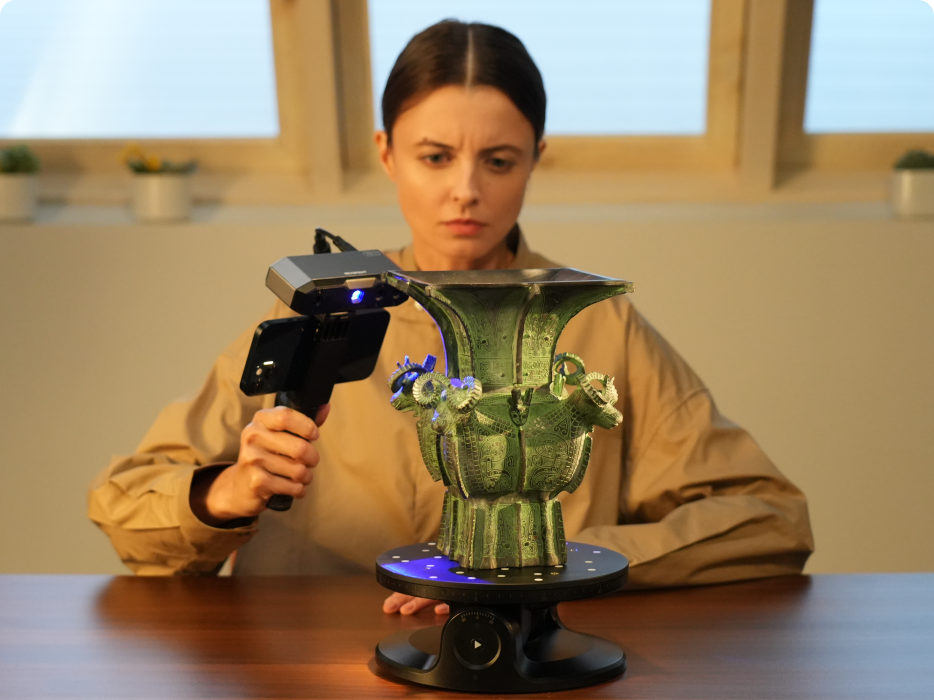

Digitizing History

Capture historical items' intricate details and color for restoration, preservation, or digital exhibitions.

Detailed Design

Create ready-to-use 3D models from organic shapes like flowers or shells for your design projects with no complex 3D modeling needed.

What's in the Box?

Standard
Advanced

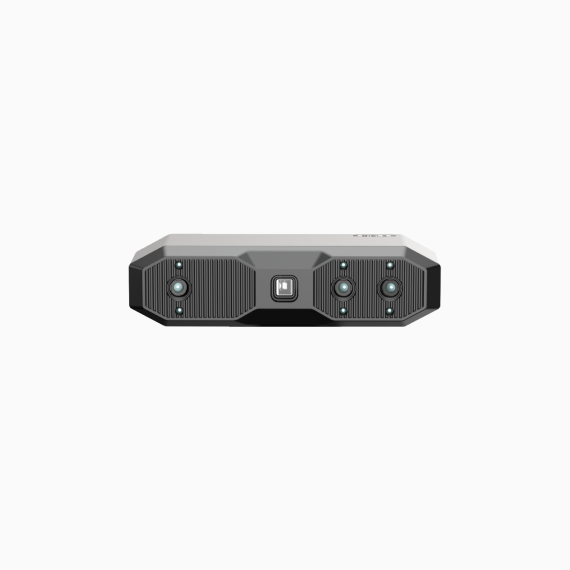

MINI 2 3D Scanner

Standard

BUY NOW

MINI 2 3D Scanner

Tripod

Phone Holder

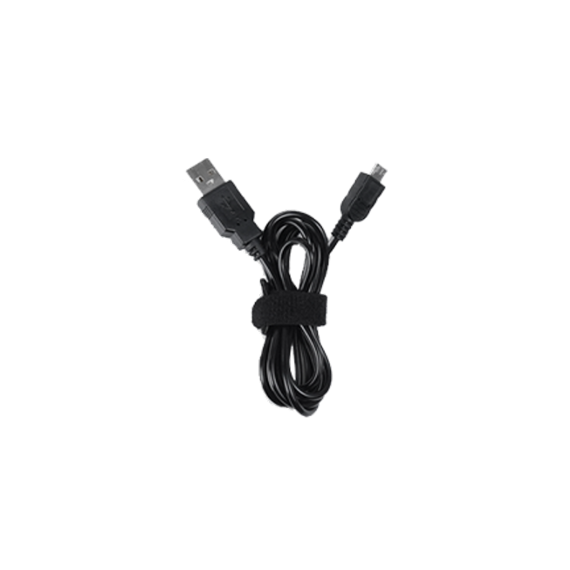

USB Type-A to C Cable

2-in-1 Mobile Cable

USB Type-C Adapter

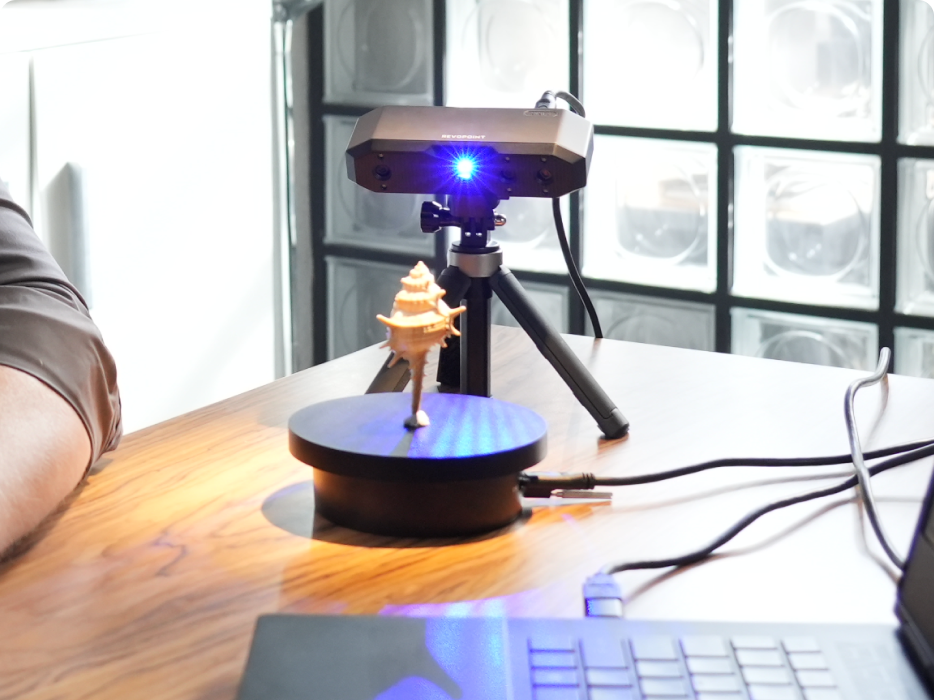

Mini Turntable

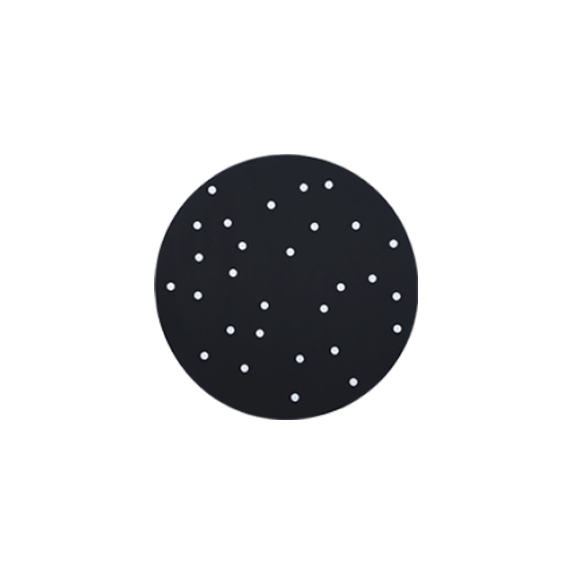

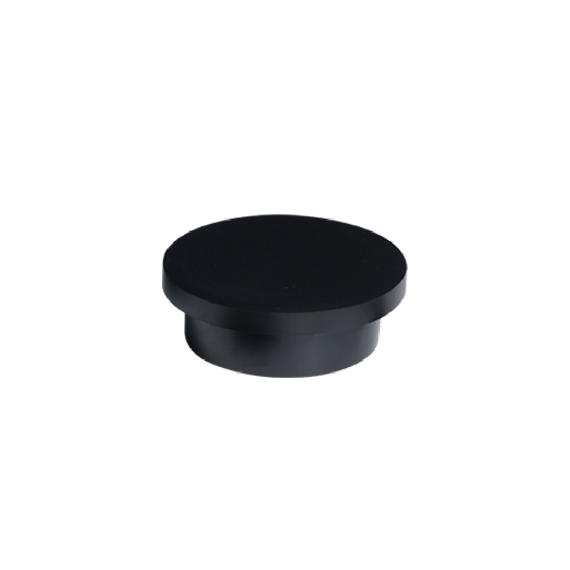

Turntable Topper

Turntable Power Cable

Carrying Case

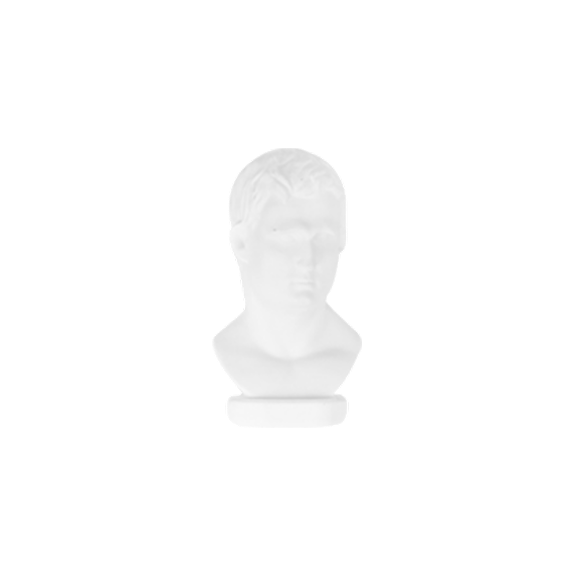

Agrippa

Magic Mat

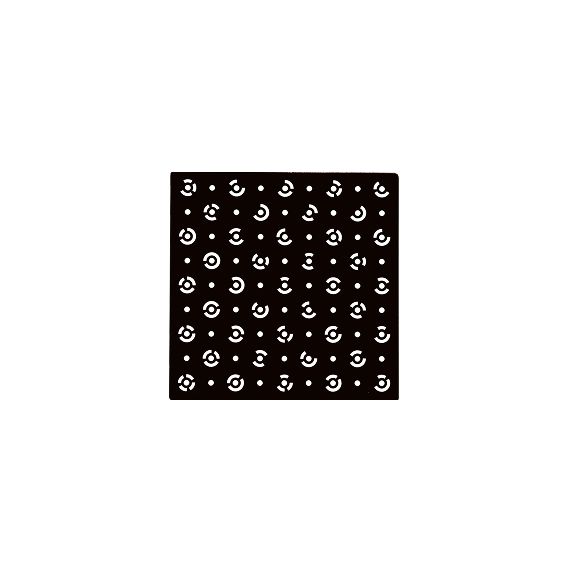

Calibration Board

Markers x 500

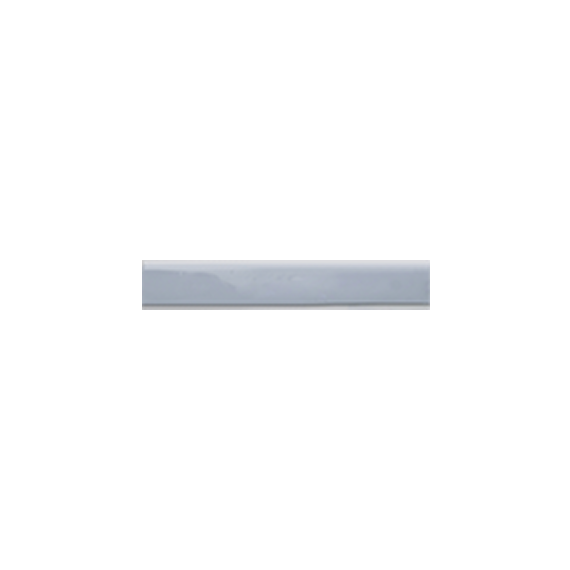

Glue Tack

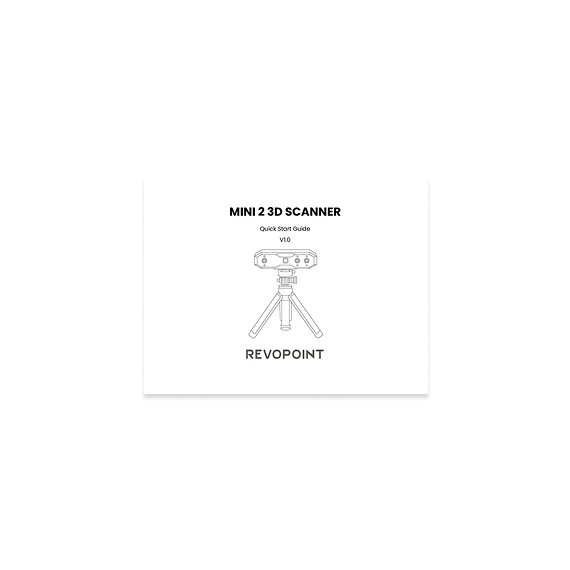

Quick Start Guide
Certificate &Warranty Card

MINI 2 3D Scanner

Advanced

BUY NOW

MINI 2 3D Scanner

Tripod

Phone Holder

USB Type-A to C Cable

2-in-1 Mobile Cable

USB Type-C Adapter

Mini Turntable

Turntable Topper

Turntable Power Cable

Carrying Case

Agrippa

Magic Mat

Calibration Board

Markers x 500

Glue Tack

Quick Start Guide
Certificate &Warranty Card

Dual-axis Turntable

Top Accessories

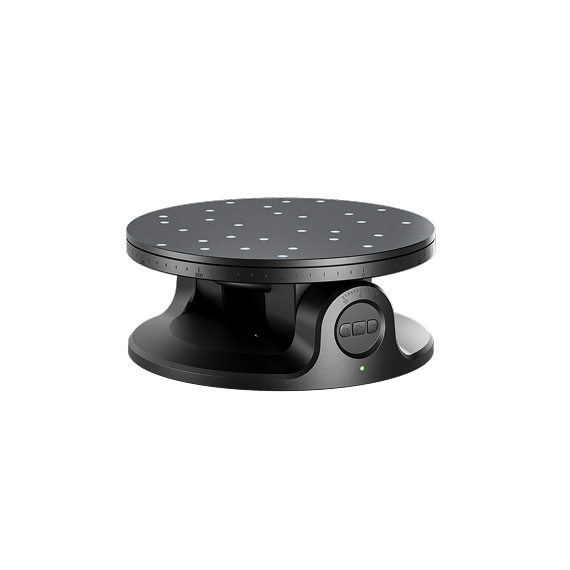

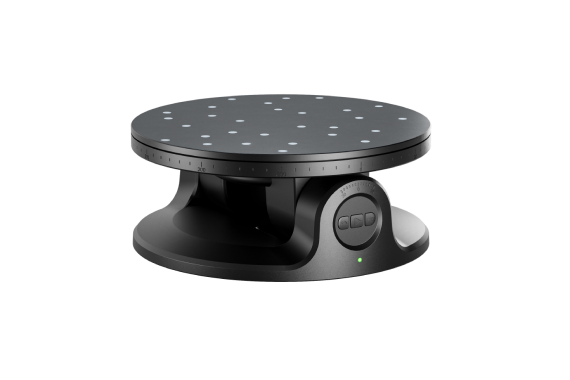

Dual-axis Turntable

Simplify the scanning process and eliminate the need for object repositioning during scanning with the Dual-axis Turntable's adjustable speed, rotation, 30° tilt, and 5 kg max load.

BUY NOW

Mobile Kit

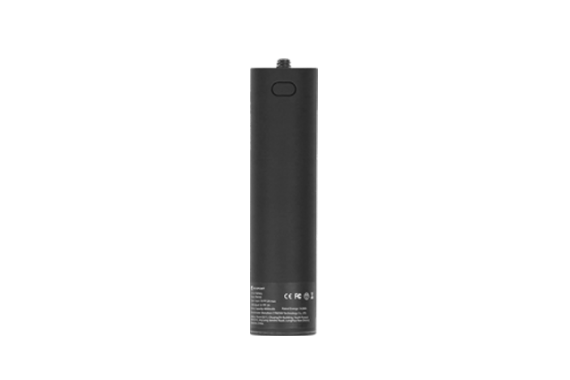

Clip this helpful Handheld Power Bank onto the bottom of your MINI 2 for up to 4 hours of conveniently powered mobile scanning. The package includes a Power Bank Handle and the 2-in-1 Mobile Cable.

BUY NOW

Specifications

Product Name

Revopoint MINI 2

Depth Camera Resolution

2 Megapixels

Technology

Dual-camera Blue Structured Light

RGB Camera Resolution

2 Megapixels

Single-frame Precision

Up to 0.02 mm

Outdoor Scanning

No

Single-frame Accuracy

Up to 0.05 mm

Color Scanning

Yes

Single Capture Area

at Nearest Distance

52 x 64 mm at 120 mm

Scanner Weight

175 g

Single Capture Area

at Furthest Distance

168 x 132 mm at 250 mm

Dimensions (L x W x H)

132 x 53 x 36 mm

Working Distance

120 ~ 250 mm

3D Printing Compatible

Yes

Point Distance

Up to 0.02 mm

Compatible Operating Systems

Window 10/11 (64-bit), Android,

iOS, macOS

Minimum Scan Volume

10 x 10 x 10 mm

White Flash LEDs

Yes

Scanning Speed

Up to 16 fps

CPU

2 core, 1.8 GHz

Position Sensors

9-axis IMU

Wi-Fi

Wi-Fi 6

Light Source

Class 1 Blue Light

Connector Type

USB Type-C

Tracking Methods

Feature, Marker, Global Marker

User Recalibration

Yes

Output File Formats

PLY, OBJ, STL, ASC, 3MF, GLTF, FBX

Special Object Scanning

Use scanning spray for transparent,

dark, or highly reflective objects.

Minimum PC Requirements

macOS
CPU: M1 Pro or better;

RAM ≥ 8GB
Windows
CPU: Intel i7 12th or better;

RAM ≥ 16GB

Recommended PC Requirements

macOS
CPU: M3 or better;

RAM ≥ 8GB
Windows
CPU: Intel i9 11th or better;

RAM ≥ 32GB
