Revopoint Trackit SR: Wireless Optical Tracking 3D Scanner for Marker-free Scans
· Wireless Scans - Move With Freedom
· 30 Cross-line Lasers
· 17 Parallel Laser Lines
· Single Line Laser
· Marker-free Scans
· Capture Objects from 10 mm to 4 m
· Efficient Calibration Workflow
· Portable and Lightweight
· Outdoor Scans
· Smart Temperature Monitoring
· Texture Mapping - Vivid 3D Models
Usually, free shipping for most 3D scanners, 3-5 working days fast receipt. Software is non-refundable, fast digital delivery via email.
Take a Closer Look
Markers Out.
Wireless Freedom In.
Markers Out.
Wireless Freedom In.
Triple Blue Laser Capture
Details Capture -
30 Cross-line Lasers
Fast Scans -
17 Parallel Lines
Scan Deep Holes -
Single Line Laser
High Accuracy
0.025 mm + 0.04 mm × L (m)
Time-saving Marker-Free Scans
Move Freely, Scan Wirelessly
*Battery Life: Up to 2.5 hours.
Lightweight and Portable
Wireless Multi-station
Scan Setup
Robust Carbon Fiber Frame
Detailed Texture Mapping
Always Accurate, Never Wait

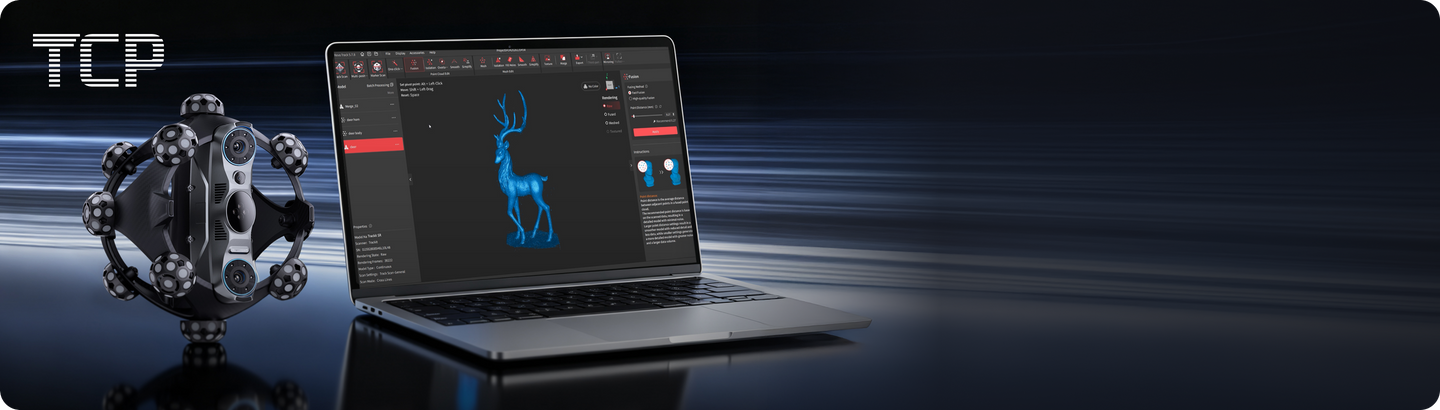

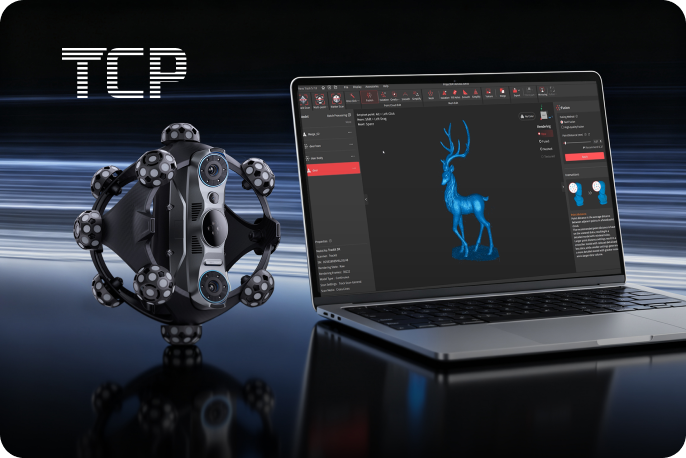

TCP Remote Control
Revo Track Free Post-
processing Software
Output Formats: PLY, OBJ, STL, ASC, 3MF, GLTF, FBX
Revo Design -
Scans-to-CADs
Revo Measure - Scans-
to-Measurements
*Included in the CMM Edition.
30 Cross-line Lasers
17 Parallel Lines
Single Line Laser
0.025 mm + 0.04 mm × L (m)
*Battery Life: Up to 2.5 hours.
Scan Setup
processing Software
Output Formats: PLY, OBJ, STL, ASC, 3MF, GLTF, FBX
Scans-to-CADs
to-Measurements
*Included in the CMM Edition.
Trackit SR 3D Model Gallery
Color Couch
Bike
ATV
Thin Workpiece
What’s in the Box
Standard Edition
Scanner
Tracker
Auto Calibration Dual-axis Gimbal
Tripod
Gimbal Adapter Plate
Quick Release Clamp
Calibration Board
Calibration Pole
Power Adapter
Tracker PC Cable (Tracker - PC)
Scanner PC Cable (Scanner - PC)
Scanner Cable (Tracker - Scanner)
Gimbal Cable (Tracker - Gimbal)
Cable Sleeve
Markers × 20 (Magnetic)
Markers × 200 (Sticky)
Case With Wheels
Scanner Battery × 2
Scanner Battery Charger
CMM Edition
Ball Plate
Revo Measure Software (One-Year License)
*Only Windows 10/11 Supported.
Battery Grip
Battery Grip Power Cable
More Service
Not sure if a Revopoint 3D scanner suits your project? Send us your sample, we'll scan it with your selected scanner, then send you a high-precision STL/OBJ model and a scan-suitability report.
Special Events
Special Discount
If you’re a teacher, veteran, doctor, or student with a valid ID, you can enjoy an extra 5% discount on all of our scanners.
Consult Experts
Speak to expert now! We’re here to help you with all your technical questions and concerns.
Power Up Your Trackit SR: Compatible Software
Specifications
Trackit SR 3D Scanner
Tracker
Trackit SR vs. Trackit
Trackit SR 3D Scanner
Trackit 3D Scanner
(Tracking system)
up to
Far Mode: 17 Blue Parallel Laser Lines
Deep Hole Mode: 1 Blue Single Laser Line
Deep Hole Mode: 1 Blue Single Laser Line
(Tracker)
FAQ
What are the differences between Trackit SR’s three scanning modes?
(1) 30 Cross-line Laser Mode: Provides high-precision and high-efficiency scanning and enables direct scanning of black, reflective, and metallic surfaces without markers.
(2) 17 Parallel-line Laser Mode: With a larger working distance, it is suitable for quickly scanning larger objects.
(3) Single-line Laser Mode: Projects a high-quality blue laser line and is suitable for fine scanning of narrow areas, such as deep holes and grooves, ensuring complete capture of complex structures.
Can I 3D print the 3D models created by Trackit SR?
Yes, the models can be exported in the STL, OBJ, and 3MF formats, which are compatible with most 3D printing slicer software.
Can the 3D models be imported into design software?
Yes, Revo Track supports various file formats compatible with most design software, such as QuickSurface, Geomagic, PolyWorks, Blender, Maya, Rhino, ZBrush, Fusion 360, etc. The supported formats are as follows:
Point Cloud models: PLY, OBJ, ASC
Mesh models: PLY, OBJ, STL, FBX, GLTF, 3MF
Texture models: PLY, OBJ, FBX, GLTF
Can I connect Trackit SR’s Scanner to a PC via Wi-Fi?
Yes, both the Scanner and Tracker can connect to a PC wirelessly via Wi-Fi 6.
Can Trackit SR scan the object with electronic components? Will the laser cause damage?
No, the laser will not damage electronic components if a minimum distance of 200 mm is maintained.
Note: Do not position the components too close to the scanner's laser outlet, as the laser emission area has a high energy density.
What is Trackit SR’s operating temperature range?
For optimal accuracy, it is recommended to use the device within an ambient temperature range of 20°C to 25°C (68°F to 77°F).
Do I need to use markers during scans?
Markers are needed in the following two scenarios:
1) When using the Scanner as a standalone 3D scanner in Marker Scan mode, markers must be placed on the object's surface for frame alignment.
2) When using the Trackit SR in multi-position scan mode, markers serve as global marker coordinates for data alignment when repositioning the Tracker.
How do I calibrate Trackit SR?
Revo Track software enables users to perform the complete Trackit SR calibration process, including Scanner Calibration, Tracker Calibration, and Hand-Eye Calibration.
Open Revo Track and click "Scanner Calibration" in the lower-left corner of the Home page to enter the calibration interface. Once the device has finished warming up, follow the on-screen instructions to import the SN information, perform an accuracy check, and complete the calibration process.
What is Revo Measure? What measurement features does it offer?
Revo Measure is a professional 3D data measurement and analysis software. The software offers dimension measurement (length, angle, volume, etc.), GD&T analysis (geometric dimensioning and tolerancing), deviation analysis (comparing scan data with CAD models), cross-section creation and measurement, and other functions. It also supports generating a deviation color map to visually display error distributions.
Does Revo Measure have to be used with a Revopoint scanner? Can data from other devices be imported?
No, Revo Measure can also work with data from other 3D scanners. The software supports importing point cloud and mesh models in .ply format. However, with a Revopoint scanner, you can jump directly to measurement with one click and retain texture information.
