RANGE 2 3D Scanner

Broader Vision, Boundless Creation

Buy Now

Overview

icon
icon
icon
icon
icon
icon

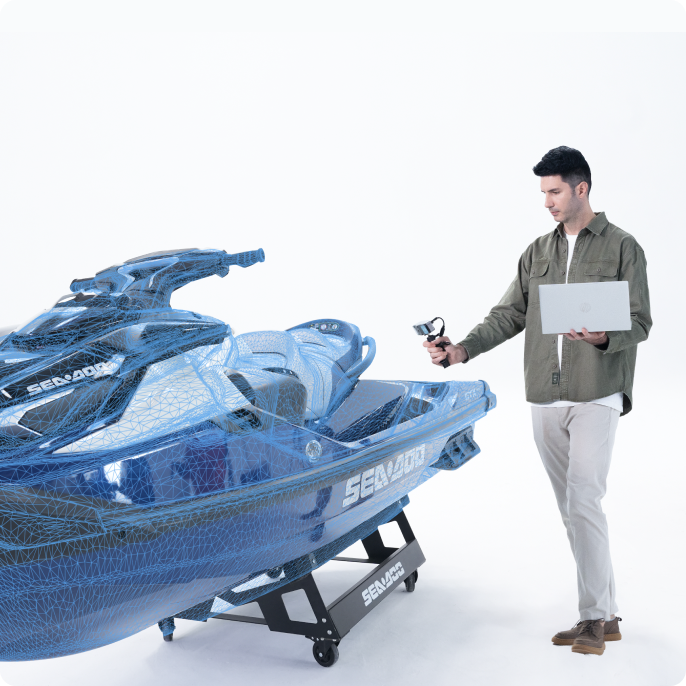

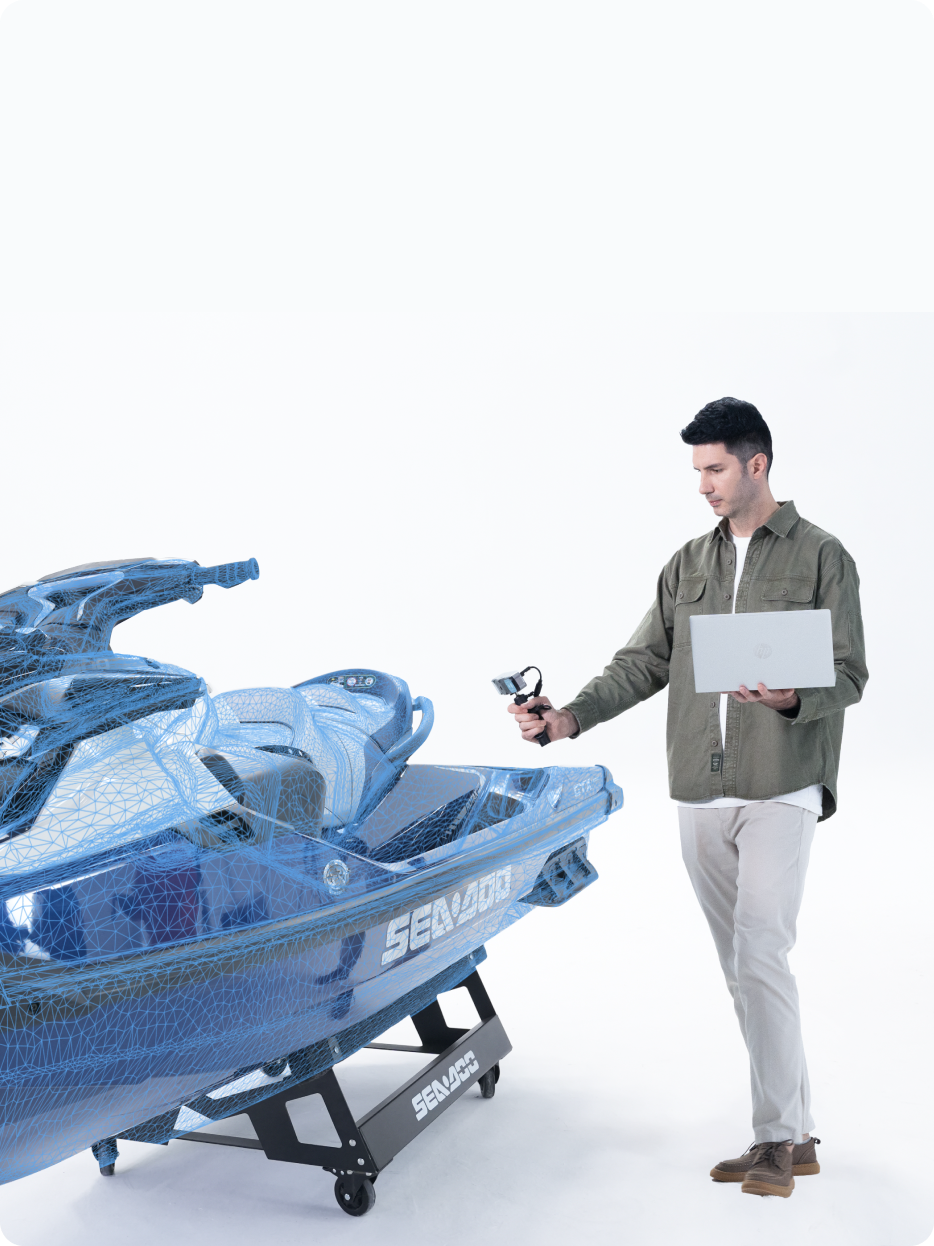

Large-sized objects Scanning

Revopoint RANGE 2 is a portable handheld structured infrared light 3D scanner designed for capturing large objects like furniture, people, and vehicles. Its 60% bigger capture range and scanning distance offer better tracking and faster scans.

Reliability Matters

Reliably and consistently capture objects with RANGE 2's

single-frame precision of up to 0.1 mm.

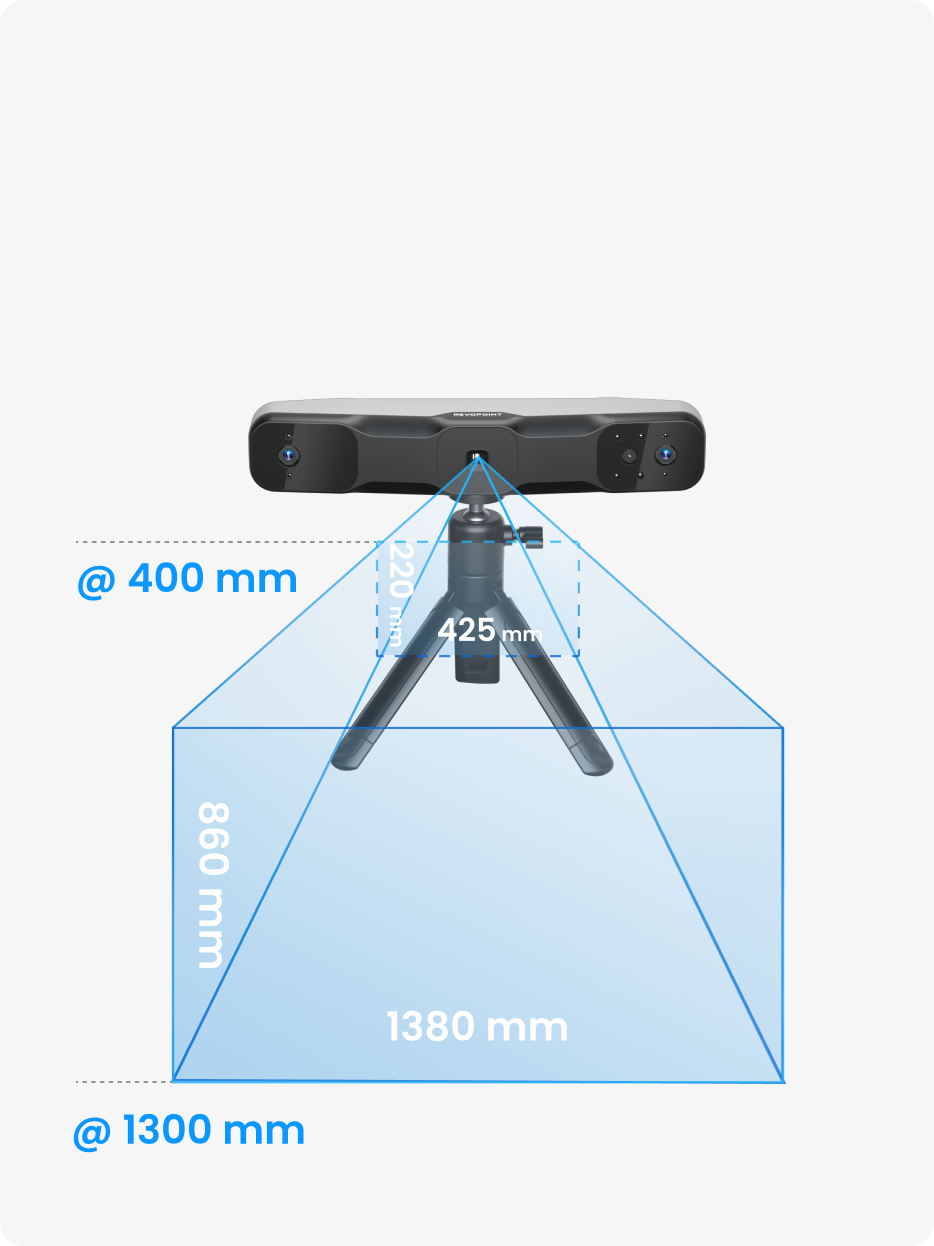

Bigger Capture

Make short work of large object scanning with RANGE 2’s new Depth Cameras powering a 60% bigger 1,300 mm working distance and 860 mm x 1380 mm single capture range for faster, better surface data capture.

Upgraded Camera System

Create sharper 3D models and capture better color scans with RANGE 2's

higher resolution RGB and Depth Cameras.

Popping Color Scans

Create color-accurate 3D models with RANGE 2's new high resolution bigger aperture RGB Camera capturing more color details, and 4 Flash LED lighting system removing shadows for even color capture.

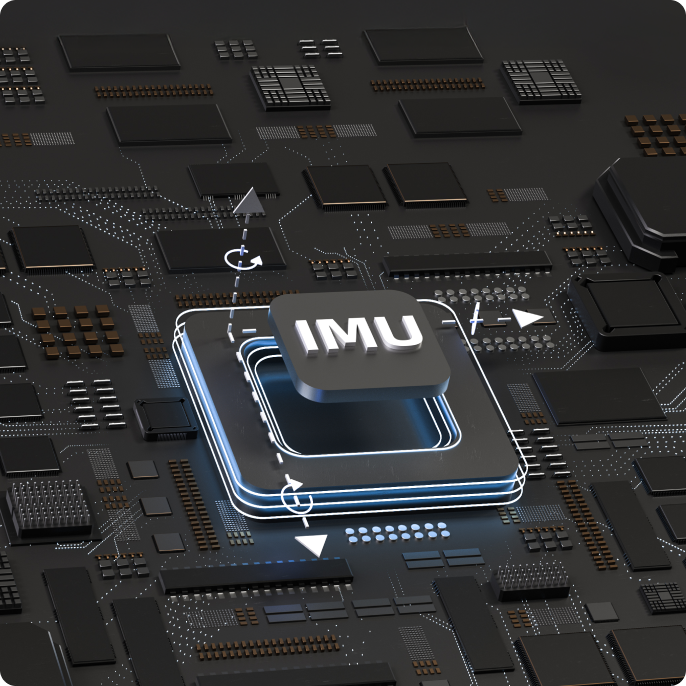

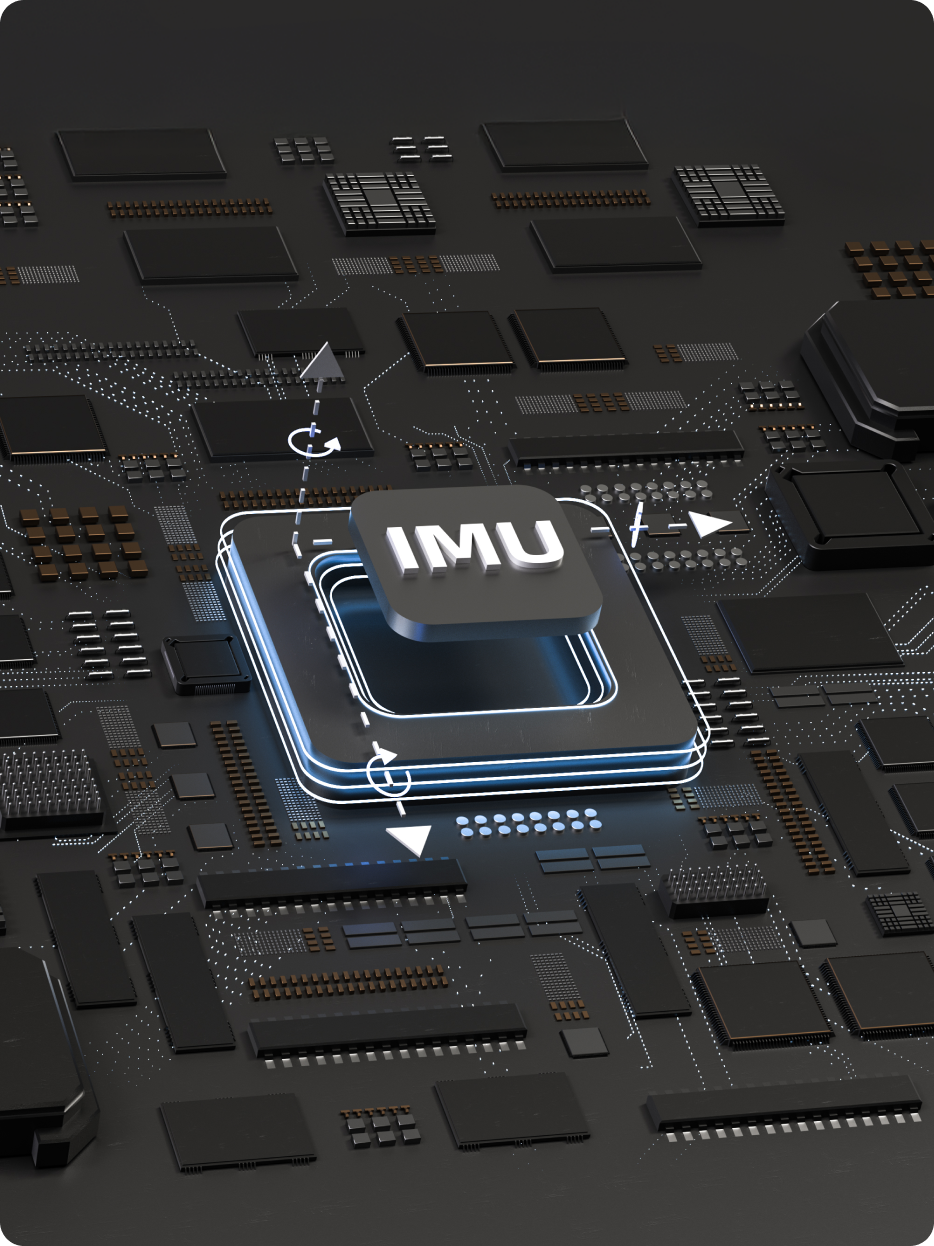

Smarter Tracking

RANGE 2’s improved tracking system provides better frame stitching with the help of its 9-axis IMU’s motion data, removing faulty frames caused by rapid movements and shaking.

CPU

2 core

1.8 GHz

Position Sensors

9-axis IMU

Efficient Scans

Streamline 3D modeling processes by quickly creating ready-to-use 3D models at up to 16 fps scanning speeds.

Greater Control

Seamlessly swap between turntable to handheld scanning to easily capture every surface. Control the scan and adjust its exposure effortlessly using RANGE 2’s three new tactile buttons.

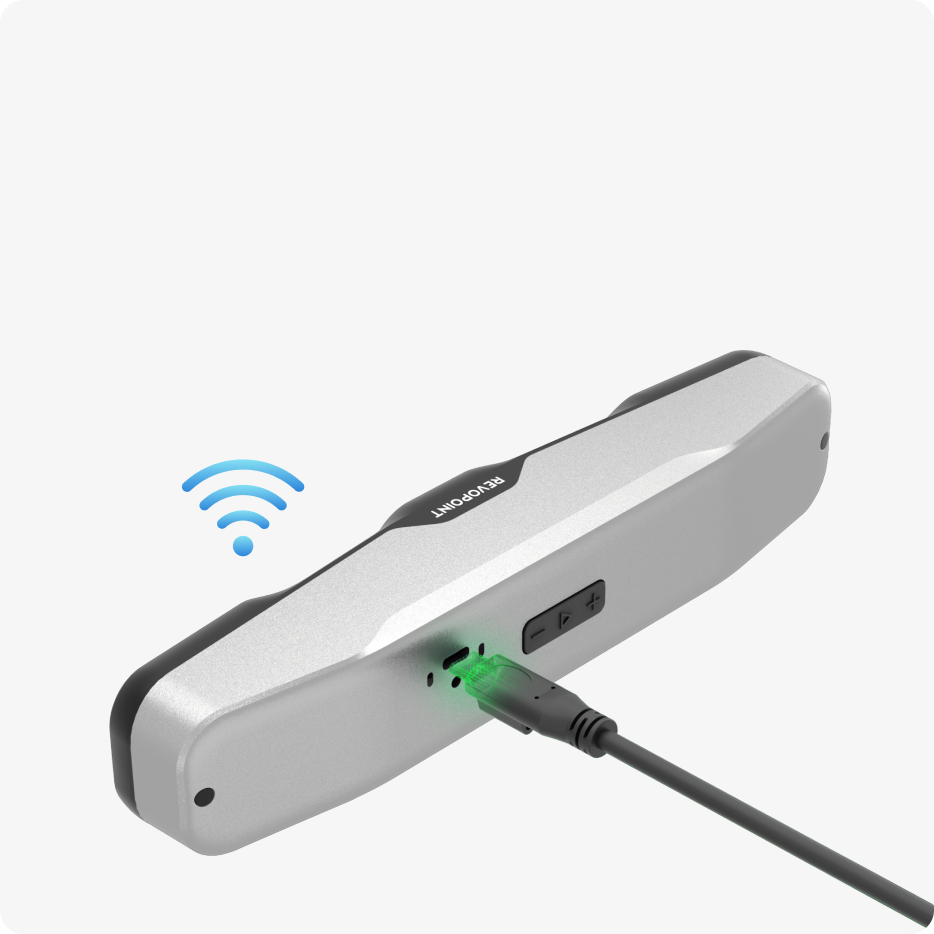

Better Connectivity

RANGE 2 has completely updated its connectivity options with Wi-Fi 6 for faster, lower latency mobile scanning and USB Type-C for plug-and-play PC connections.

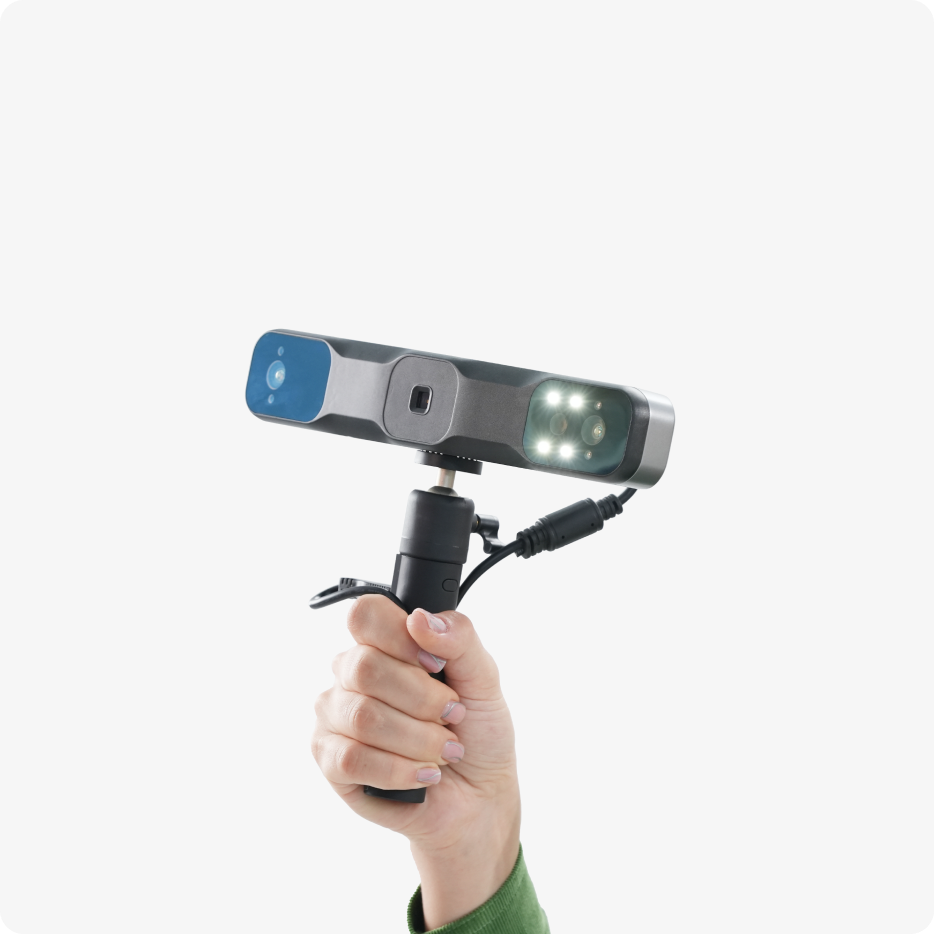

Highly Portable

Go everywhere and scan on the go with RANGE 2's lightweight and compact design combined with compatibility with iOS and Android devices.

High-Performance Software

Revo Scan 5 is your portal to intuitive 3D scanning and powerful editing. And it runs on nearly everything, with full support for iOS, Android, Windows, and macOS devices. Export your models in PLY, OBJ, STL, ASC, 3MF, GLTF or FBX formats for compatibility with most CAD, 3D modeling, and slicer software.

Revo Scan 5

Integrates model scanning, post-processing, and multi-model alignment functionalities

Learn More >

The Buzz on RANGE 2

“The new Revopoint RANGE 2 3D Scanner offers a wide range of features for straightforward, high-quality 3D scanning. ”

Models Made With RANGE 2

Applications

Industrial Modifications

Start saving tens of hours of measurement and modeling time by using RANGE 2’s fast capture speeds to create detailed 3D models in minutes that are ready for replication or modification.

Digitizing Ancient Artifacts

When capturing ancient items or stone reliefs, RANGE 2’s non-contact scanning removes the risk of damage caused by traditional measurement and research methods.

VR/AR

From creating immersive VR gaming experiences to interactive AR educational materials, RANGE 2 helps to streamline content production of lifelike, vivid 3D models.

Clothing Design

Complete full-body scans in less than 60 seconds to create accurate, detail-rich 3D models for fashion design.

What's in the Box?

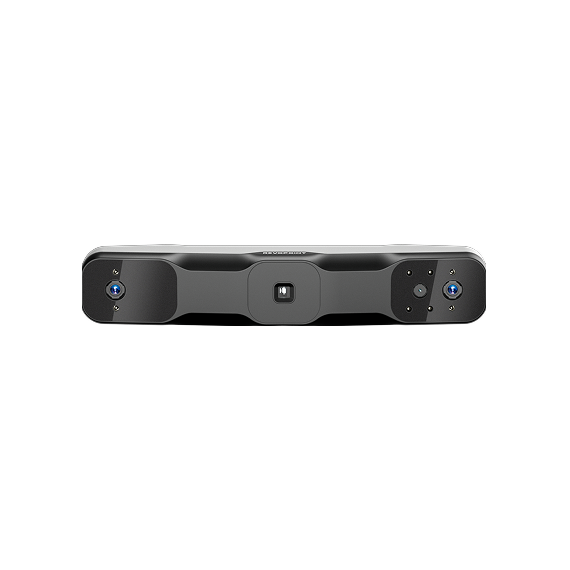

RANGE 2 3D Scanner

Has everything needed to start scanning.

BUY NOW

RANGE 2 3D Scanner

Tripod

Phone Holder

USB Type-A to C Cable

2-in-1 Mobile Cable

USB Type-C Adapter

Carrying Case

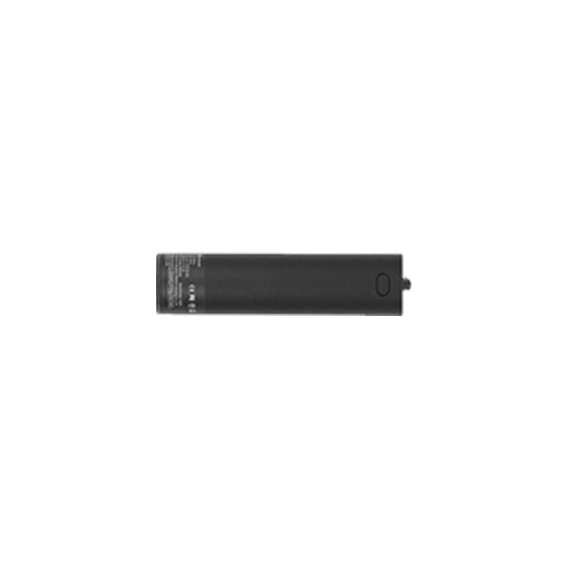

Power Bank Handle

Magic Mat

Markers x 500

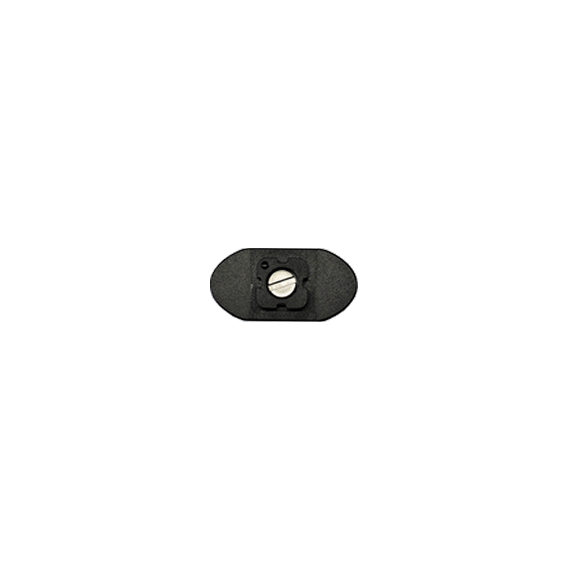

Quick Release Plate

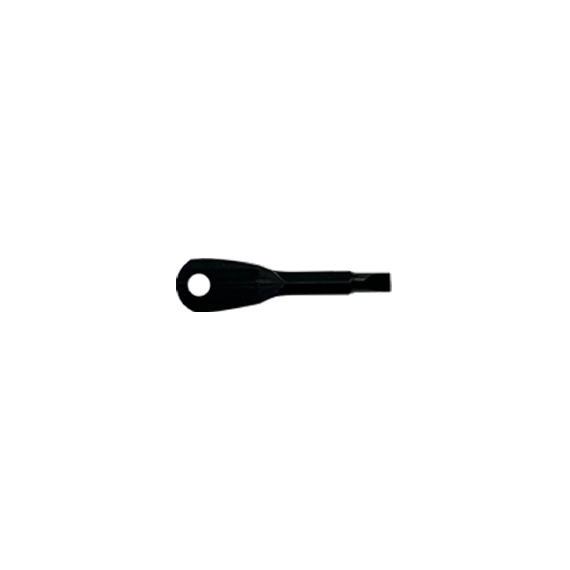

Screwdriver

Top Accessories

Large Turntable

Scan large objects or people even faster with the Large Turntable. It has a maximum load of 200 kg and a powerful motor, keeping the table spinning smoothly even at max weight. Adjust its speed and rotation on the fly through its remote control or app.

BUY NOW

Dual-axis Turntable

Simplify the scanning process and eliminate the need for object repositioning during scanning with the Dual-axis Turntable’s adjustable speed rotation, 30°tilt, and 5kg max load.

BUY NOW

Specifications

Product Name

RANGE 2 3D Scanner

Outdoor Scanning

Yes

Technology

Dual-camera Infrared Structured Light

Color Scanning

Yes

Single-frame Precision

Up to 0.1 mm

Scanner Weight

253 g

Single-frame Accuracy

Up to 0.3 mm

Dimensions (L x W x H)

240 x 43 x 46 mm

Single Capture Area

at Nearest Distance

220 x 425 mm at 400 mm

Ready to Print 3D Models

Yes

Single Capture Area

at Furthest Distance

860 x 1380 mm at 1300 mm

Compatible Operating Systems

Window 10/11 (64-bit), Android, iOS, macOS

Working Distance

400 - 1300 mm

External Controls

Three buttons for Start/

Pause, Exposure +, -

Point Distance

Up to 0.1 mm

Infrared Fill Lights

Yes

Minimum Scan Volume

50 × 50 × 50 mm

White Flash LEDs

Yes

Scanning Speed

Up to 16 fps

Output File Formats

PLY, OBJ, STL, ASC, 3MF, GLTF, FBX

Position Sensors

9-axis IMU

Wi-Fi

Wi-Fi 6

3D Light Source

Class 1 Infrared Light

Connector Type

USB Type-C

Tracking Methods

Feature, Marker, Global Marker

Special Object Scanning

Use scanning spray for transparent,

dark, or highly reflective objects.

Minimum PC Requirements

macOS
CPU: M1 Pro or better;

RAM ≥ 8GB
Windows
CPU: Intel i7 12th or better;

RAM ≥ 16GB

Configuration PC Recommandée

macOS
CPU: M3 or better;

RAM ≥ 8GB
Windows
CPU: Intel i9 11th or better;

RAM ≥ 32GB
