Revopoint MetroX - 3D Laser Scanner for Small to Medium Objects

MetroX

Multi-Line Laser &
Full-Field Blue Light 3D Scanning

*Note: When using MetroX's Full Field or Auto Turntable scanning modes, scanning spray for dark or shiny surfaces is recommended.

Metrological Blue Light Scanner

4 Scanning Modes, Limitless Possibilities

Cross Lines

Quickly capture flat, featureless areas on machinery and objects with shiny or black surfaces with no scanning spray needed at up to 800,000 points per second with MetroX’s 14 crossed blue laser lines.

Parallel Lines

Enhance the clarity of your 3D models by ensuring every fine detail, edge, and complex surface is accurately captured using the 7 high-powered parallel blue laser lines.

Auto Turntable Scanning

Fully automate the capture process and create metrology-grade models every time. Click once, and the Dual-axis Turntable, Revo Scan, and MetroX work together to complete the scan.

Full-field Blue Structured Light

Efficiently capture feature-rich and featureless objects at up to 7 million points per second using 62 powerful lines of structured blue light to create point clouds in seconds.

Metrology-grade Accuracy

Get metrology-grade modes with a precision of up to 0.01 mm, accuracy of up to 0.03 mm, and volumetric accuracy of up to 0.03 mm + 0.1 mm × L(m)*.

*L is the length of the object.

The high-precision calibration board ensures MetroX always maintains its accuracy and precision.

Three Tracking Modes

Feature mode for detail-rich objects, Marker for featureless objects, and Global Marker for increased volumetric accuracy.

Setup Scans Faster

The MetroX Advanced Edition comes with a Marker Block Kit. This kit saves a ton of time by vastly reducing the number of markers needed when setting up laser scans or scanning featureless objects in Full-field mode. The markers are reusable and can be freely combined.

Easy to Control

Effortlessly control your scans, start/pause, adjust depth camera exposure, and digitally zoom on the fly using MetroX’s 4-button control system.

Vivid Color Scans

Capture color-accurate scans for added realism in Auto Turntable mode using MetroX’s HD RGB camera for vivid color reproduction.

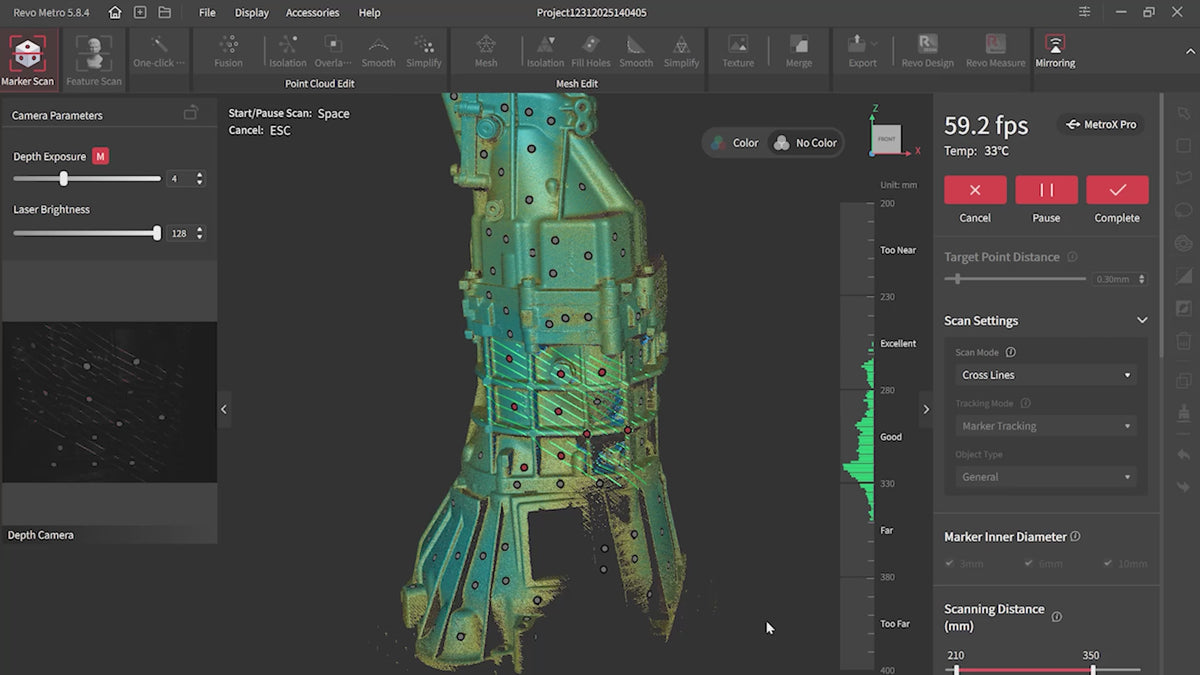

Revo Scan 5 MetroX: Powerful Scanning and Editing Software

Revo Scan 5 MetroX is a user-friendly free software that can do everything from point cloud creation to fusion, meshing, editing, merging, importing, and exporting.

Scan
Easily adjust every scan setting from accuracy and exposure to scanning distance for optimal capture.

Process
You can use the adjustable one-click editing mode to automatically process the scan or do it manually, with full options for keyframe editing, fusion, meshing, and texturing.

Edit
Select and delete unwanted data, clean up overlapped and isolated data, smooth, simplify, and fill holes.

Merge
Scan large or complex projects in sections, then combine the scanned data automatically or manually.

Export
Export your scans in PLY, OBJ, STL, ASC, 3MF, GLTF, and FBX for compatibility with third-party post-processing software, like Quicksurface, Geomagic Wrap, or Geomagic Control. This enables efficient scan-to-CAD workflows or easy integration with quality inspection software.

Scan

Process

Edit

Merge

Export

3D Models Gallery

Explore More >

Why Choose MetroX

"Combining hybrid multi-line blue lasers and full-field structured light, the MetroX 3D scanner is built for professional applications such as reverse engineering, quality control, additive manufacturing, and rapid prototyping, and addresses many of the pain points of traditional 3D scanners."

"In 3D printing and additive manufacturing, MetroX’s 3D data can be used to create high-quality printed prototypes or customized parts."

"MetroX has the ability to capture a wide range of subjects, from motor parts to sculptures, from metallic objects to textured 3D models."

Multiple Applications

Reverse Engineering

Whatever your workpiece, MetroX streamlines your reverse engineering processes with metrology-grade 3D models ready for scan-to-CAD processes.

Quality Control

With MetroX's high-quality 3D models, defects and deviations in the manufacturing process can be rapidly identified to ensure that even complex parts or products meet the design tolerance requirements.

Additive Manufacturing

Use MetroX to create an ultra-accurate digital twin of nearly any small to medium object for consistent 3D-printed reproductions.

Rapid Prototyping

Accelerate rapid prototyping by using MetroX to capture accurate dimensions of objects, ensuring the prototype meets design requirements, minimizes iterations, and saves time and resources.

What’s in the Box

Standard Edition

MetroX 3D Scanner & Wrist Strap

Tripod & Scanner Cradle

Power Adapter

Dual-axis Turntable

Calibration Board

Markers(6 mm) × 500

USB Type-A toType-C Cable

USB Type-C to Type-A Adapter

Carrying Case

Sample Bust

Quick Start Guide

Certificate &Warranty Card

Standard Edition

*The power adapter may vary depending on the country or region.

Advanced Edition

Standard Edition + Marker Block Kit

MetroX 3D Scanner & Wrist Strap

Tripod & Scanner Cradle

Power Adapter

Dual-axis Turntable

Calibration Board

Markers(6 mm) × 500

USB Type-A toType-C Cable

USB Type-C to Type-A Adapter

Carrying Case

Sample Bust

Quick Start Guide

Certificate & Warranty Card

Ball Marker × 10 (Magnetic)

Dome Marker × 10 (Magnetic)

Pyramid Marker × 4 (Magnetic)

Bar Marker × 4

Markers(6 mm) × 500

Standard Edition + Marker Block Kit

*The Marker Block Kit simplifies the workflow by making it much quicker to place markers when scanning featureless objects.

Specifications

Name

MetroX

Compatible Operating Systems

Windows 10/11 (64-bit), macOS 11.0 or better

Scanning Type

Handheld and Desktop

Built-in Chip Computing

Depth Map Computing

Technology

Multi-line Laser Scan and Full-field Structured Light Scan

Buttons

4

Scannable Object Size

Small to Medium

Outdoor Scanning

No

Single-frame Precision, up to

0.01 mm

Output File Formats

PLY, OBJ, STL, ASC, 3MF, GLTF, FBX

Single-frame Accuracy, up to

0.03 mm

Ready to Print 3D Models

Yes

Volumetric Accuracy

0.03 mm + 0.1 mm × L (m)

L is the length of the object

Fused Point Distance, up to

0.05 mm

Working Distance

200 ~ 400 mm

Connector Type

USB Type-C

Single Capture Area at Nearest Distance

160 x 70 mm at 200 mm

Power Requirements

DC 12V, 3A

Single Capture Area at Furthest Distance

320 x 215 mm at 400 mm

3D Light Source

14 Blue Cross Laser Lines

7 Blue Parallel Laser Lines

62 Line Blue Full-field Structured Light

Angular Field of View (H x V)

43 × 33°

Dimensions (L x W x H)

209 × 88 × 44 mm

Maximum Scan Volume

1 × 1 × 1 m

Minimum Scan Volume

10 × 10 × 10 mm

User Recalibration

Yes

Scanning Speed, up to

Multi-line Blue Laser: 800,000 Points/s

Full Field Blue Light: 7,000,000 Points/s

Special Object Scanning

Please use scanning spray when scanning transparent or specular surfaces in Multi-Line Laser modes.

Using scanning spray is recommended when scanning transparent, black, specular, or highly reflective surfaces in Full-Field Structured Light modes.

Depth Camera Resolution, up to

2 Megapixels

RGB Camera Resolution

2 Megapixels

Supported Accessories

Dual-axis Turntable, Marker Block Kit

Color Scanning

Only in Auto Turntable Mode

CPU

4 core ARM, 2.0 GHz

Tracking Methods

Feature, Marker, Global Marker

Fill Lights

12 Blue LEDs

Minimum PC Requirements(*4)

macOS

CPU: M1 Pro/Max/Ultra

RAM ≥ 16GB

Windows

CPU: Intel i7 10th Gen 10700 or

AMD Ryzen 7 5800

RAM ≥ 32GB

GPU (Optional):

NVIDIA GeForce RTX 3050 (8GB)

Recommended PC Requirements

macOS

CPU: M2 Pro/Max/Ultra, M3 Pro/Max/Ultra

RAM ≥ 24GB

Windows

CPU: Intel i9 12th Gen or

better

RAM ≥ 64GB

GPU:

NVIDIA RTX 4060 (8 GB) or better

Note:

1. Precision is how close repeated measurements of the same object at a single angle are to each other. Accuracy is how close a measured value at a single angle is to the actual (true) value. They were both acquired in a controlled lab environment. Actual results might vary, subject to the operation environment.

2. Class 2M Laser Safety Tips:

(1) The product uses a Class 2M laser projector. Avoid looking directly at it at close range! Please refer to the Class 2M laser standard document for details.

(2) To avoid retina damage, don't look directly into the laser beam through optical instruments capable of magnifying it (e.g., telescopes, and camera lenses).

(3) To prevent laser reflection, avoid placing reflective surfaces like mirrors or glass in the path of the laser beam.

3. This product has flashing lights, which may not be suitable for people with photosensitive epilepsy.

4. If you're unsure about the CPU configuration, please ensure that the CPU has cores≥8, threads≥16, and a base frequency ≥2.4GHz.
