POP 4

Aperçu

68% More Accuracy*
0.025 + 0.04 mm x L (m)

* Compared to POP 3 Plus

Blazingly Fast Laser Scans

Scanning Volume

Small to Medium Objects

Near-to-Far Coverage

200 - 800 mm

Outdoor Scans
100,000

No Scanning Spray Needed

Full-color Capture

Create Vivid 3D Models

Dynamic AI Segmentation

AI-Powered ROI Selection

Flexible Scanning

Wireless Scanning
and Real-time Screen Mirroring

Photo-Realistic 3D Objects

Gaussian Splatting

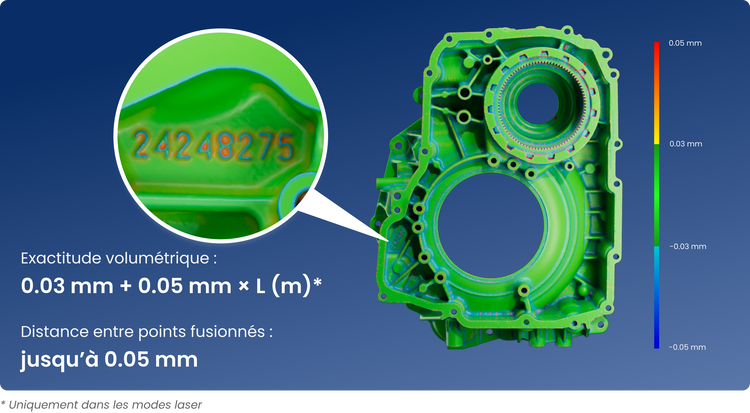

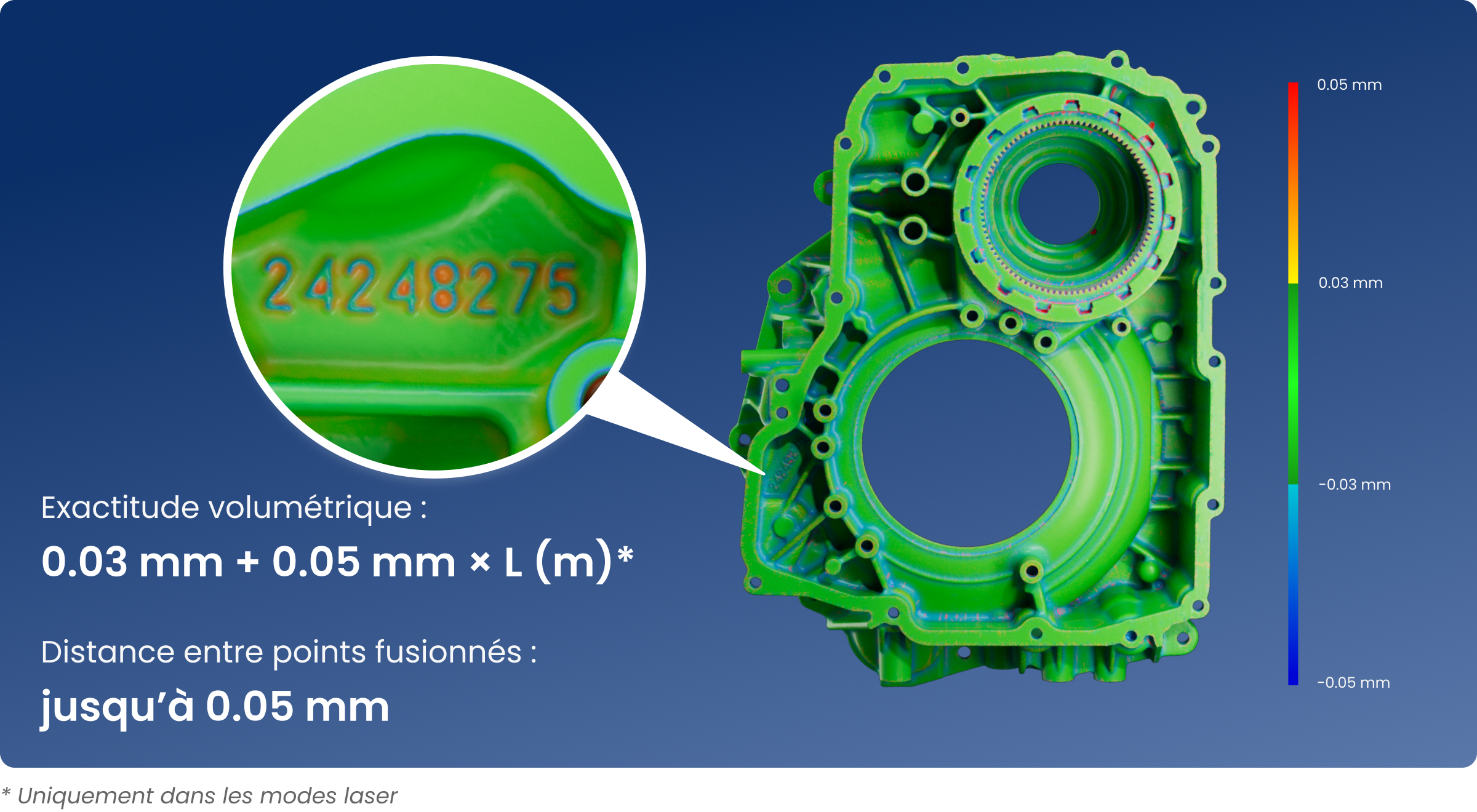

68% More Accuracy*

Capture even the most complex geometries with exceptional accuracy. POP 4 delivers high detail 3D models ready for 3D printing, reverse engineering, and scan-to-CAD workflows.

*Comparing the single-frame accuracy of POP 4 and POP 3 Plus.

Modes. Total Coverage

From small indoor objects to medium outdoor workpieces, POP 4’s hybrid blue laser and infrared structured light scanning system gives you the flexibility to capture almost anything.

Speed - 30 Cross-lines Deep Holes - Single Line Marker-free - Infrared Structured Light Outdoors - VCSEL Infrared Scans

Rapidly scan flat, shiny, or dark surfaces at up to 2M points/s and 100 fps* for fast, accurate results. *Scanning speeds may vary depending on PC hardware.

Ensure complete data capture in hard-to-reach areas such as deep holes, crevices, and grilles.

Easily capture bodies, faces, and feature-rich objects without using markers at speeds up to 5M points/s.

Switch to the speckle-patterned infrared VCSEL mode for fast, up to 30 fps scans that easily capture larger feature-rich workpieces and people marker-free, even in direct sunlight.

See It. POP It

With wireless connectivity, outdoor-ready performance, and a portable 5600 mAh battery grip for mobile operation, POP 4 makes it easy to create detailed 3D models anywhere.

Wireless Scanning

Leave the PC behind and take the POP 4 mobile to perform infrared light scans, using your smartphone's Wi-Fi (iOS and Android) or USB-C (Android only) to connect. For maximum detail, stream blue laser scans powered by your PC directly to your mobile device using Revo Mirror*.

*Works on: Windows, macOS, iOS, Android

Outdoor Scanning

Scan anywhere, even in direct sunlight conditions up to 60,000 lux. POP 4's high-intensity VCSEL projector emits speckled infrared patterns that are resistant to light interference, enabling fast and reliable outdoor scans.

Using the Outdoor Filter increases the lux rating up to xxx lux.

Near-to-Far Coverage

Get in close for detailed blue laser scans at 200 mm or switch to VCSEL and pull back for rapid large-area scans at up to 800 mm away.

Full-Color Capture

The advanced RGB camera instantly adjusts white balance and exposure for vibrant, optimal color scans.

langs.pages.pop4.features.title_4_html

No Scanning Spray Needed

Scan dark or shiny surfaces easily with POP 4's blue laser modes, no scanning spray needed.

Dynamic AI Segmentation

Scan only what matters with AI-powered targeting, allowing you to choose the areas you want to capture, saving editing time and increasing accuracy.

3D Gaussian Splatting

Turn scans into hyper-realistic 3D models with POP 4's new Gaussian splatting mode, exportable in splat.

Revo Scan 6 - Free Scanning Software

Intuitively create complete 3D models in four simple steps using POP 4's powerful Revo Scan 6 software.

Scan Process Edit Export

Granular scan settings let you control every aspect of the scanning process, ensuring optimal point cloud capture.

Seamless 3D Scanning Ecosystem

No more juggling software. Enjoy a unified workflow from scan-to-CAD to inspection with POP 4, Revo Design, and Revo Measure working together as one professional ecosystem.

Revo Design

Powerful tools for transforming scans-to-CADs, reverse engineering, surface modeling, and basic design projects*.
*Revo Design is sold separately.

Revo Measure

Evaluate objects' shape, dimensions, and quality by comparing point cloud or mesh data to CAD models or drawings.*
*Revo Measure is sold separately.

Captured with POP 4

Cliquez pour Explorer >

Mold
Height: 45 cm

Women
Height: 176cm

Conical Part
Height: 23 cm

Parrot
Height: 34 cm

Professional Solutions

Reverse Engineering

Fix broken parts, upgrade designs, or restore vintage items with volumetrically accurate 3D data ready for scan-to-CAD conversion in Revo Design or Geomagic Design X.

3D Printing

Whether you're outdoors or in your workshop, POP 4 effortlessly creates 3D models that seamlessly integrate into your 3D printing workflow.odeling

Product Design

Transform your workflow with rapid design iterations and seamless product customization, driven by POP 4’s accurate dimensional data and fast capture speeds.ling

Animation & Digital Media

Accurately capture the shapes and textures of characters, props, and environments, reducing manual modeling time and costs in CGI, game development, and VR.

Historical Preservation

Created detailed, colored scans of artefacts for restoration, preservation, or teaching, enabling experts and students alike to study every feature with clarity.

Spécifications

Name	POP 4
Scanning Type	Portable et de Bureau
Technology	Laser bleu multi-lignes, lumière structurée infrarouge plein champ et lumière structurée infrarouge à speckle VCSEL
Scannable Object Size	De Petit à Moyen
Single-frame Precision, up to*	/
Single-frame Accuracy, up to*	Exactitude laser multi-lignes : 0,025 mm Exactitude lumière structurée plein champ : 0,08 mm Exactitude lumière structurée à speckle : 0,10 mm @ 300–500 mm, 0,20 mm @ 500–800 mm
Volumetric Accuracy	0,025 mm + 0,04 mm × L (m), L correspond à la longueur de l'objet. (Remarque : en mode laser multi-lignes)
Fused Point Distance, up to	0,05 mm
Working Distance	200 – 400 mm (mode laser multi-lignes) 250 – 500 mm (mode plein champ) 300 – 800 mm (mode speckle)
Single Capture Area at Nearest Distance	131 × 134 mm à 200 mm
Single Capture Area at Furthest Distance	312 × 269 mm à 400 mm (laser multi-lignes, plein champ) 505 × 538 mm à 800 mm (speckle)
Angular Field of View (H × V)	46 × 37 °
Minimum Scan Volume	10 × 10 × 10 mm
Maximum Scan Volume	2 × 2 × 2 m
Scanning Speed, up to	Scan laser multi-lignes : 105 fps (GPU NVIDIA), 60 fps (CPU) Scan speckle : 30 fps Scan lumière structurée plein champ : 20 fps
Point Return Rate	Laser multi-lignes : 2 000 000 points/s Scan lumière structurée plein champ : 5 000 000 points/s
RGB Camera Resolution	1,3 mégapixels
Color Scanning	Oui
Tracking Methods	Fonctionnalité, Marqueur, Marqueur global, Couleur
Outdoor Scanning*	Oui Conditions d'éclairage requises : Laser multi-lignes ≤ 50 000 lux, Speckle VCSEL ≤ 100 000 lux (Lorsque le mode laser multi-lignes est utilisé avec un filtre extérieur, la numérisation est possible dans des conditions d'éclairage allant jusqu'à 100 000 lux.)
3D Light Source*	30 lignes laser bleues croisées 1 ligne laser bleue unique (mode trous profonds) Lumière structurée infrarouge plein champ Lumière structurée infrarouge à speckle VCSEL
Fill Lights*	8 (4 LED infrarouges + 4 LED bleues)
White Flash LEDs*	2
CPU	2 cœurs, 1,8 GHz
Built in Chip Computing	Calcul de la carte de profondeur
Buttons	4

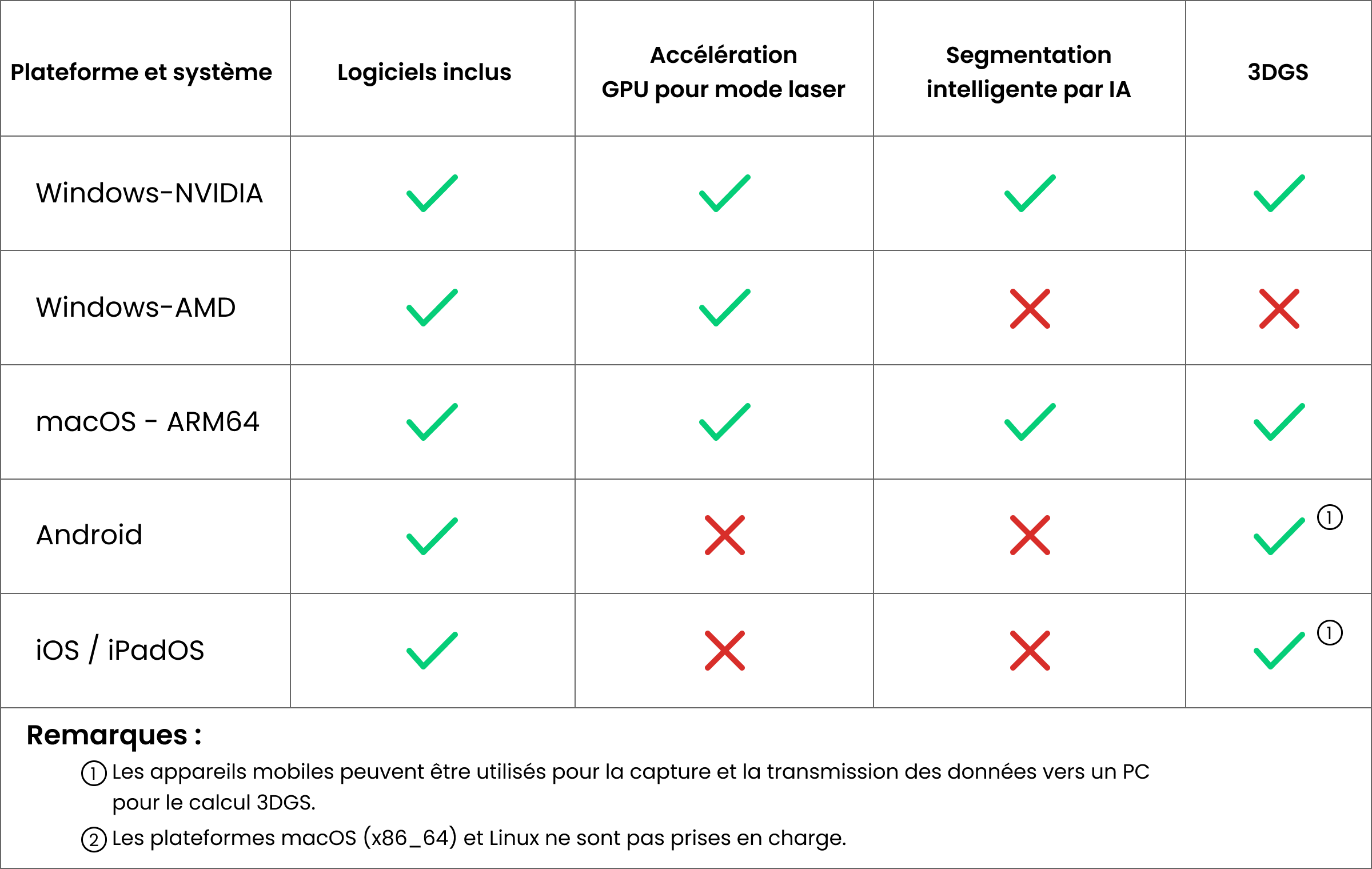

Minimum PC Requirements*	macOS CPU : M1 Pro / Max / Ultra RAM ≥ 16 Go Windows CPU : Intel i7 13ᵉ génération ou AMD Ryzen 7 5800 RAM ≥ 16 Go GPU : NVIDIA GeForce RTX 3060 (8 Go) Remarques : ① En cas de doute sur la configuration du processeur, assurez-vous que celui-ci dispose d'au moins 8 cœurs, 16 threads et une fréquence de base ≥ 2,4 GHz. ② Une carte graphique dédiée est requise uniquement pour les modes de numérisation laser. Les GPU AMD et Mac ne prennent pas actuellement en charge cette accélération.
Recommended PC Requirements*	macOS CPU : M2 Pro / Max / Ultra, M3 Pro / Max / Ultra RAM ≥ 24 Go Windows CPU : Intel i9 12ᵉ génération ou supérieur RAM ≥ 32 Go GPU : NVIDIA RTX 4060 (8 Go) ou supérieure
Mobile Requirements	① Android Version système : 9.0 ou supérieure ; RAM ≥ 8 Go ; Stockage ≥ 128 Go ② iPhone Modèles postérieurs à iPhone X ; Version système : iOS 14.0 ou supérieure ; RAM > 4 Go ; Stockage ≥ 64 Go ③ iPad 10ᵉ génération ou ultérieure Remarque : Le mode multi-lignes ne fonctionne pas de manière autonome sur mobile. Le scanner doit être connecté à un PC via Wi-Fi, avec l'écran diffusé en temps réel sur le téléphone. Les modes plein champ et speckle peuvent être utilisés de manière autonome avec un téléphone.
Compatible Operating Systems	Windows 10/11 (64 bits), Android, iOS, macOS 11.0 ou supérieur
Output File Formats	PLY, OBJ, STL, ASC, 3MF, GLTF, FBX, Splat
Ready to Print 3D Models	✔
Wi-Fi	6
Bluetooth	4.1
Connector Type	USB Type-C vers Type-C (USB 3.0)
Power Requirements	DC 5V, 2A
Scanner Weight	286 g
Dimensions (L × W × H)	160 × 30 × 72 mm
Special Object Scanning	Utilisez un spray de scan pour les surfaces transparentes ou spéculaires en mode laser et en mode speckle. L'utilisation d'un spray de scan est recommandée pour les surfaces transparentes, noires, spéculaires ou hautement réfléchissantes en mode lumière structurée plein champ.
User Recalibration	Oui
Supported Accessories	Kit de blocs marquers, Kit mobile (4ᵉ génération), Plateau tournant à double axe (II)
Power Bank Capacity	5 600 mAh (Lorsque le POP 4 utilise la poignée batterie, l'autonomie moyenne est d'environ 4 heures.)
Note	1. L'exactitude correspond à la proximité entre une valeur mesurée et la valeur réelle (vraie). Les données ont été obtenues en laboratoire, dans des conditions contrôlées. Les résultats réels peuvent varier en fonction de l'environnement d'utilisation. 2. Laser de classe 1 : Évitez une exposition directe prolongée des yeux. Reportez-vous aux normes relatives aux lasers de classe 1 pour plus de détails. 3. Certains produits comportent des lumières clignotantes susceptibles de ne pas convenir aux personnes souffrant d'épilepsie photosensible.
