Revo Design Software

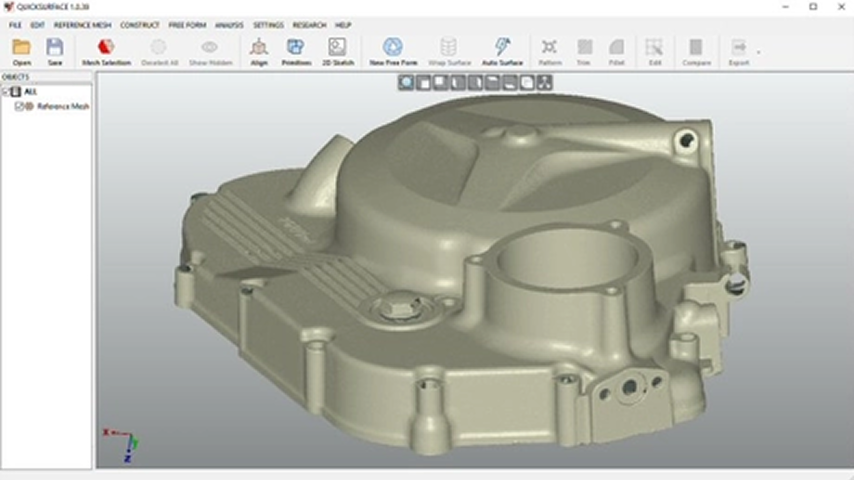

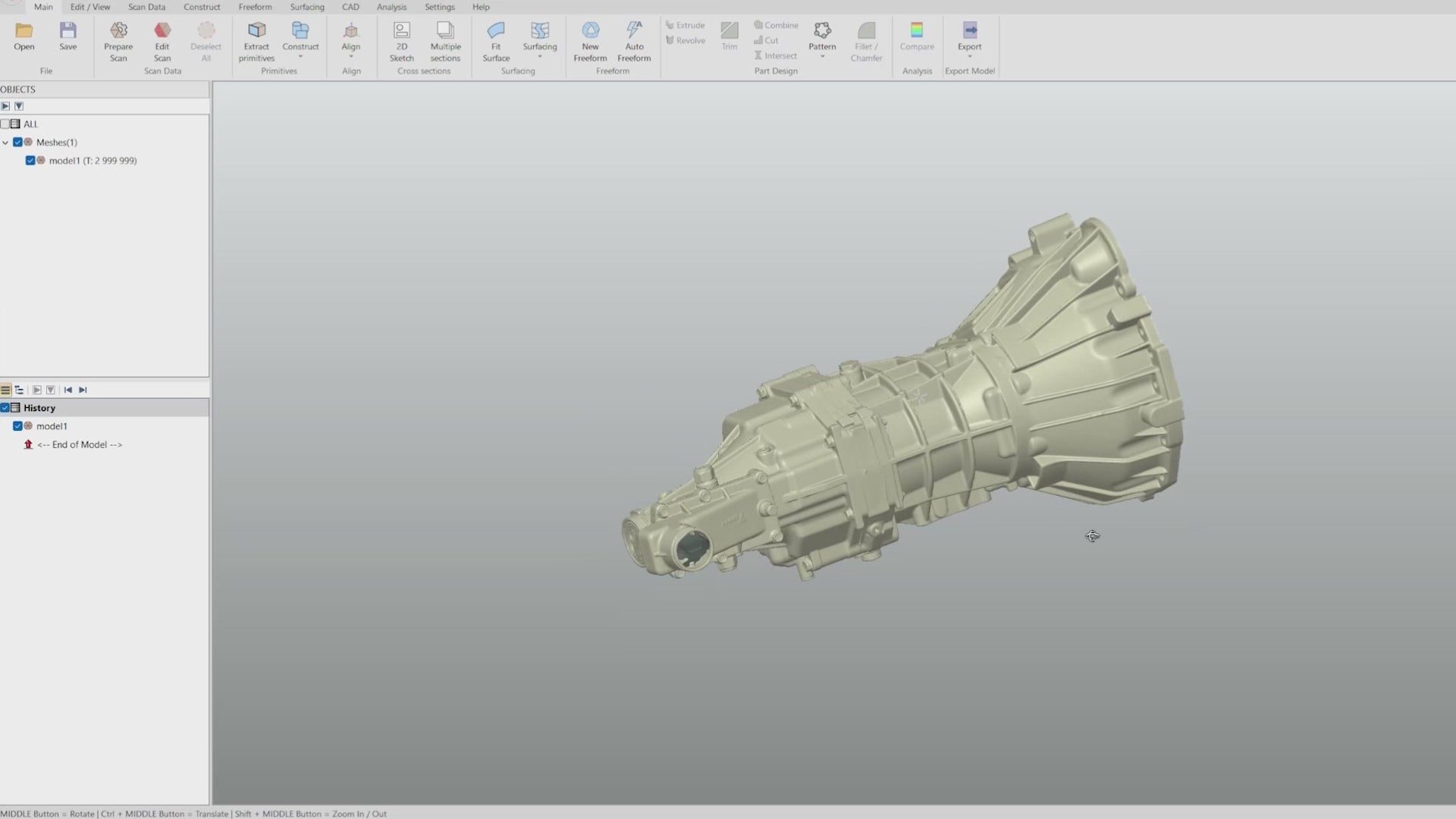

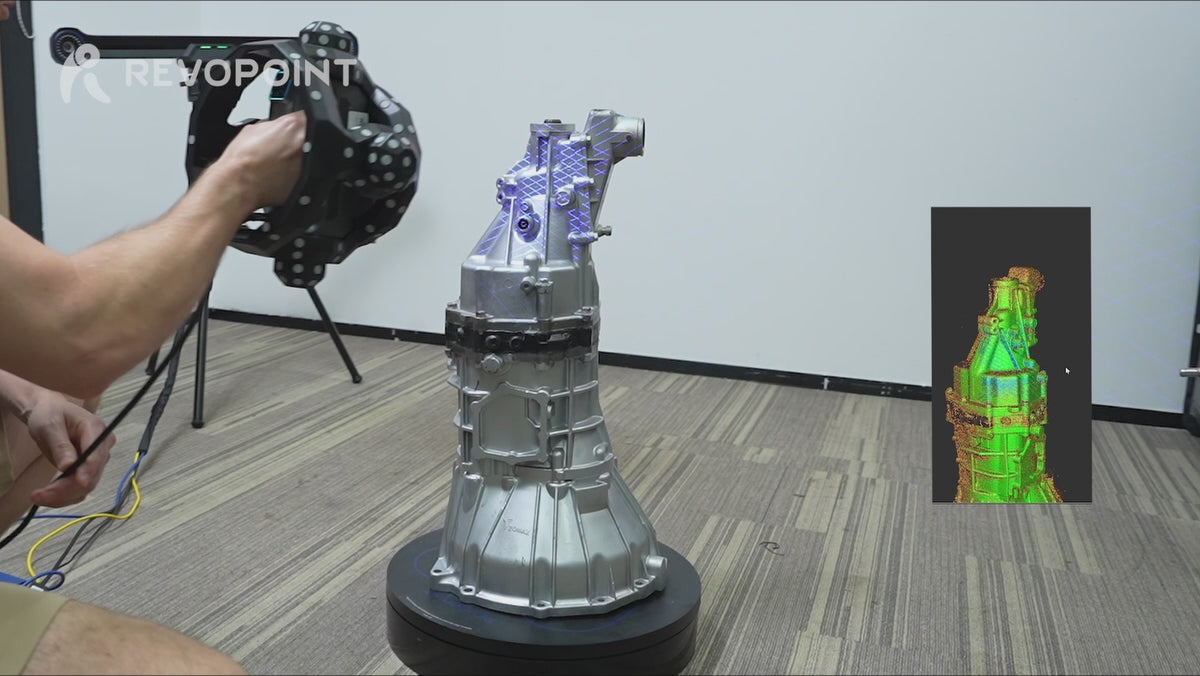

Import scan data from any scanner saved as STL, OBJ, or PLY mesh files into Revo Design. For long-range scanners, the data can be imported using the PTX file format. Revo Design allows users to load meshes of any size.

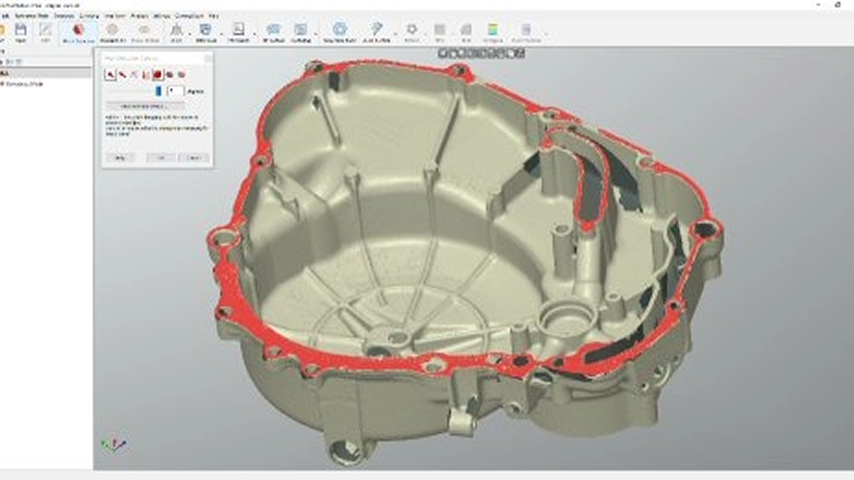

Revo Design's simple-to-use mesh editing tools allow you to easily reduce data size without losing accuracy, fill holes, and remove mesh outliers. Create watertight meshes for 3D printing or reverse engineering.

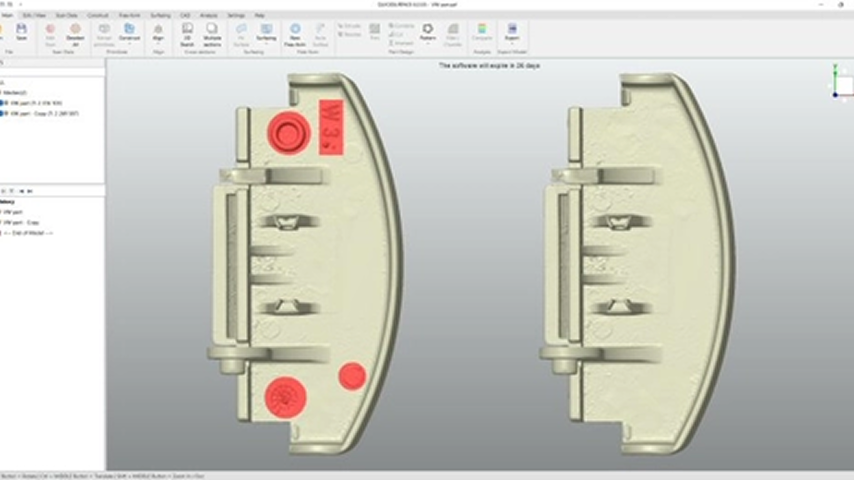

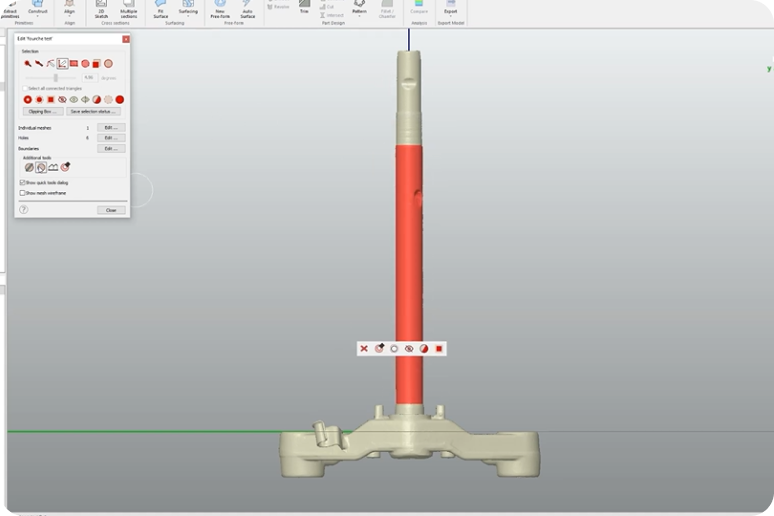

With Revo Design, you can remove stamps, markers, or other features. Select and ‘de-feature’ with a single button click.

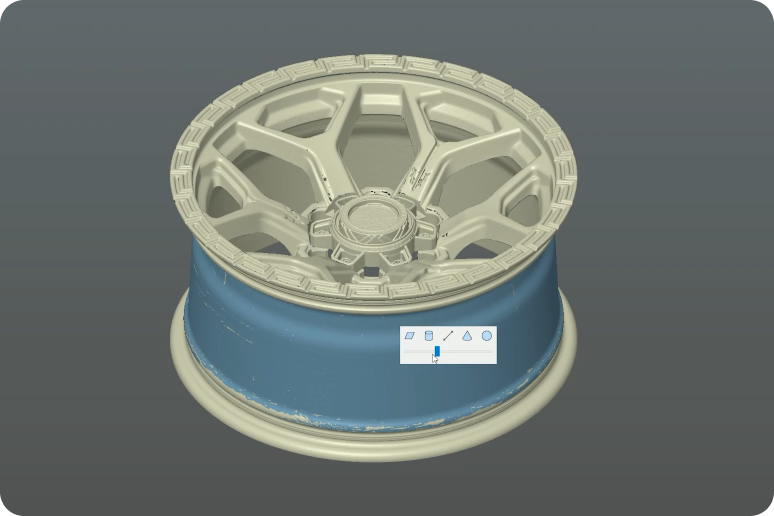

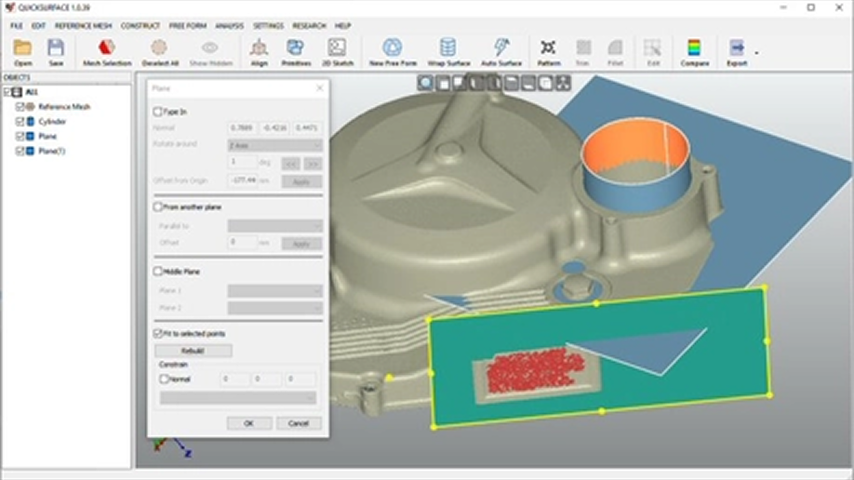

Quickly reconstruct planes, cylinders, cones, and spheres. Additionally, create reference geometries like lines and points for use in aligning meshes to the world coordinate system or to other scans.

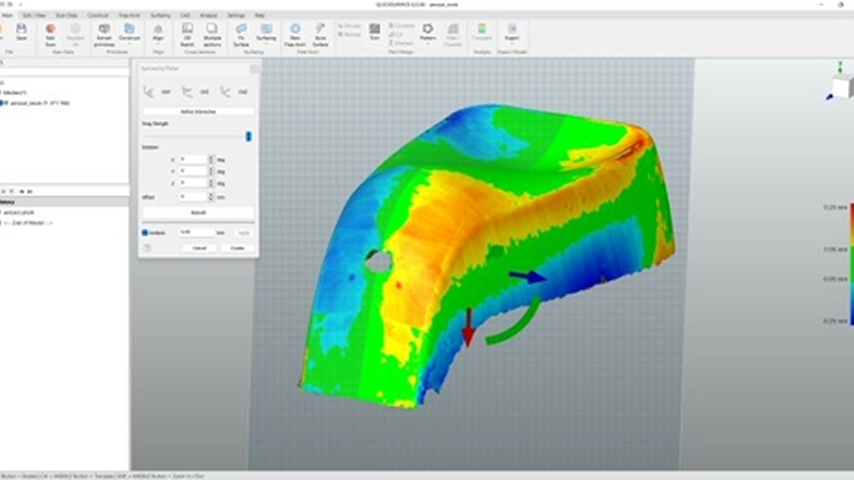

Define the symmetry plane and use the analyzer to assess the quality of the plane's position. Fine-tune the placement with on-screen controls for optimal results.

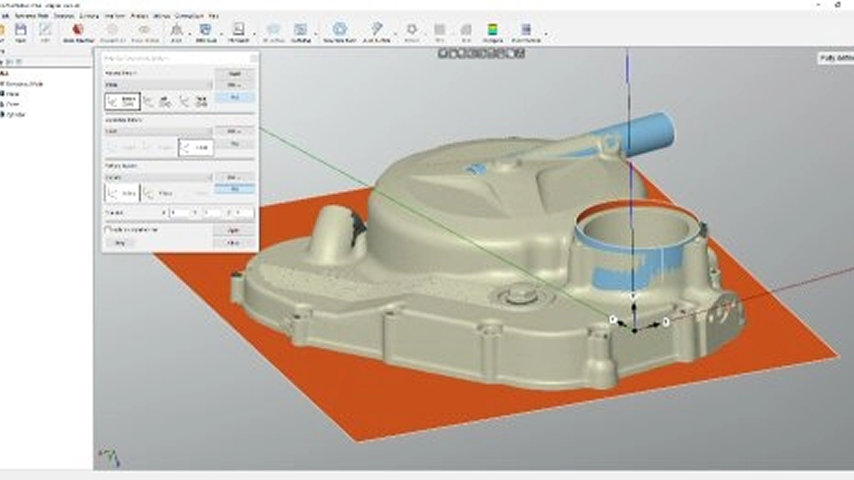

Position the object within the world coordinate system using the extracted primitives. The interactive definition of the coordinate system enables you to adjust the object's correct orientation.

Easily draw freeform curves directly on the reference mesh. Blend these curves and prepare them for advanced CAD surfacing operations, such as fill surface or creating freeform shapes from 3D sketches.

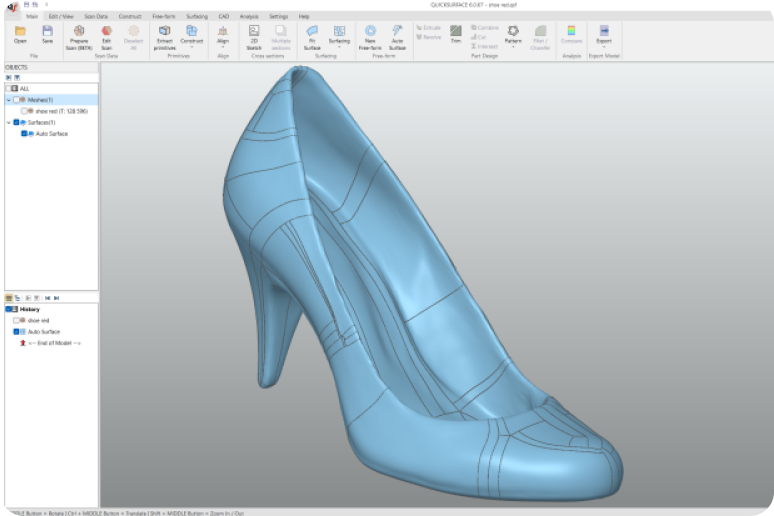

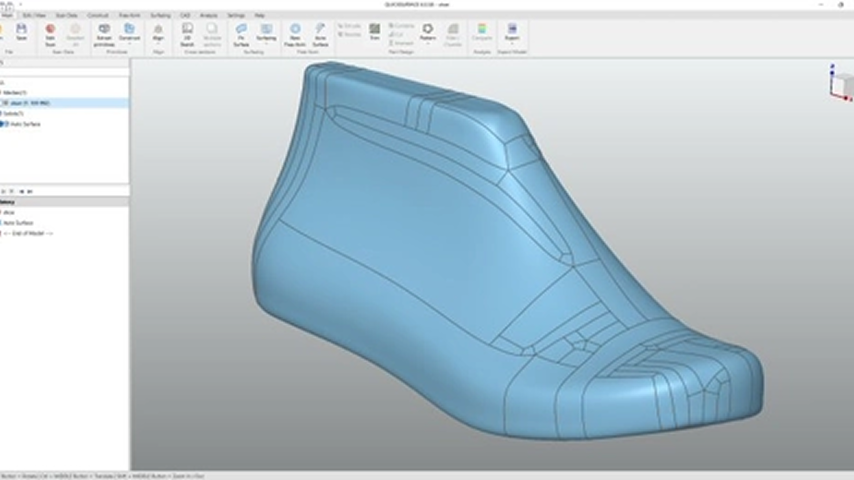

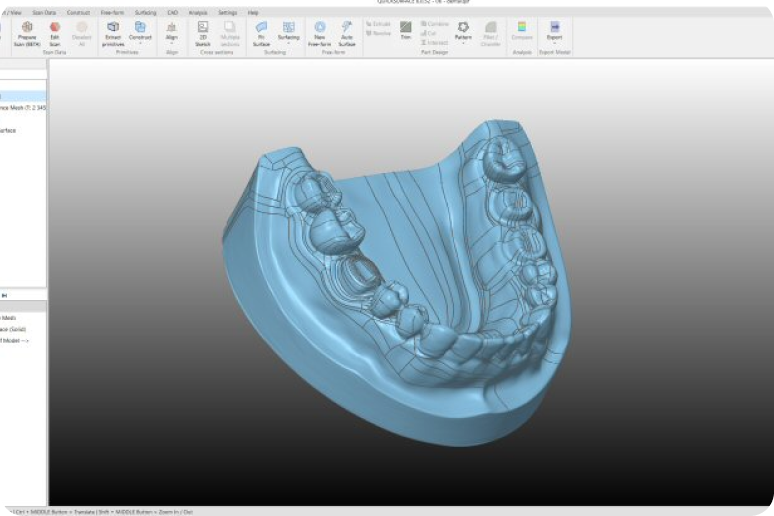

Instantly create surfaces on complex, organic shapes with a single click. The resulting surface maintains G2 continuity throughout, with G1 continuity at extraordinary points.

The chamfer and fillet tools include a real-time analyzer. Drag the arrow to set the fillet radius on the screen and instantly see how the fillets deviate from the reference mesh, all in real-time.

Create repetitive object patterns by arranging them in linear or circular formations. Also, use object mirroring for extra symmetry when needed.

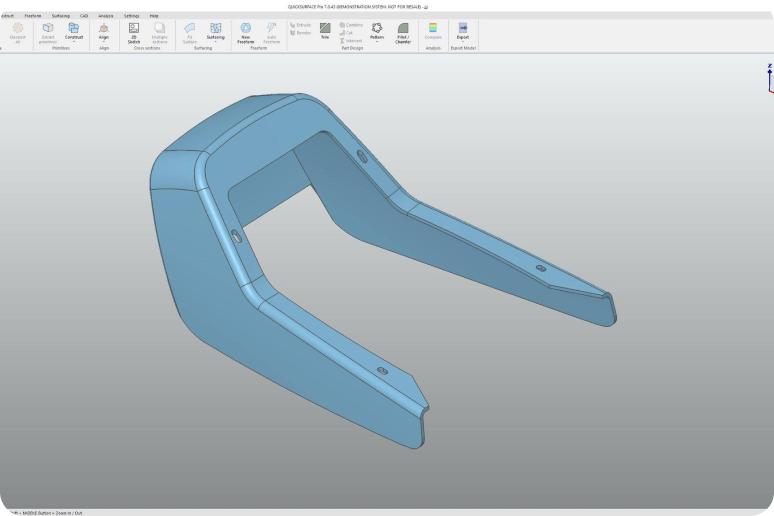

Revo Design goes beyond standard parametric modeling by allowing you to combine free-form and prismatic features in your CAD models. You can easily revisit, refine, and reshape free-form surfaces to achieve precise and repeatable results.

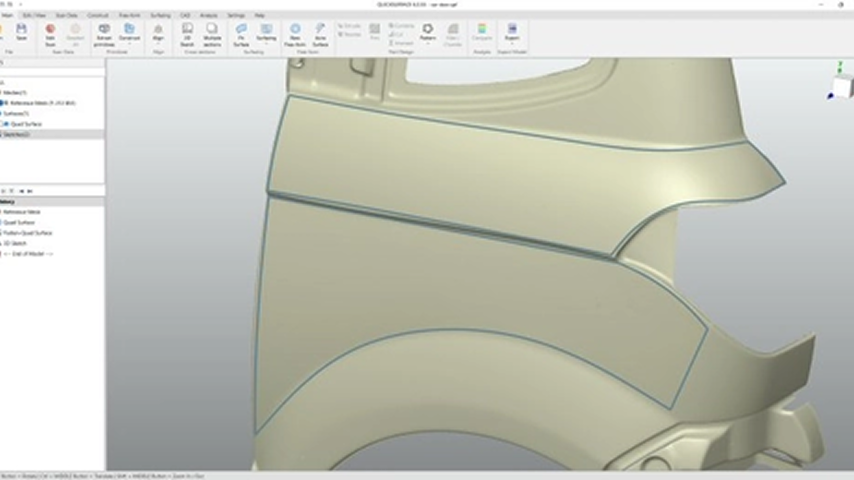

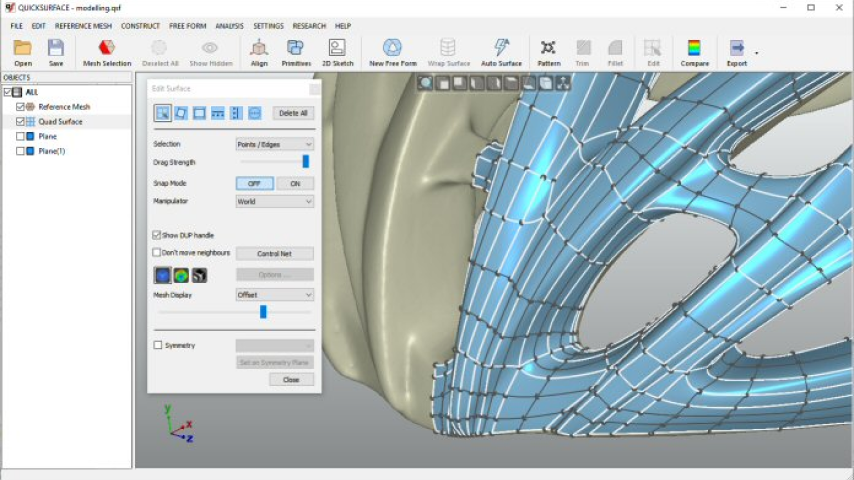

The Quad surface feature empowers you to reconstruct free-form surfaces. Its snap-to-mesh technology enables even non-professionals to effortlessly create shapes, a unique feature not found in any other solutions.

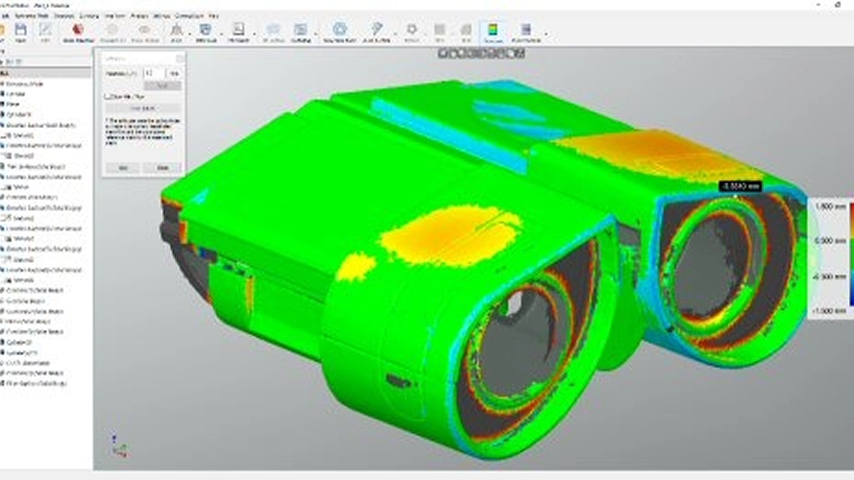

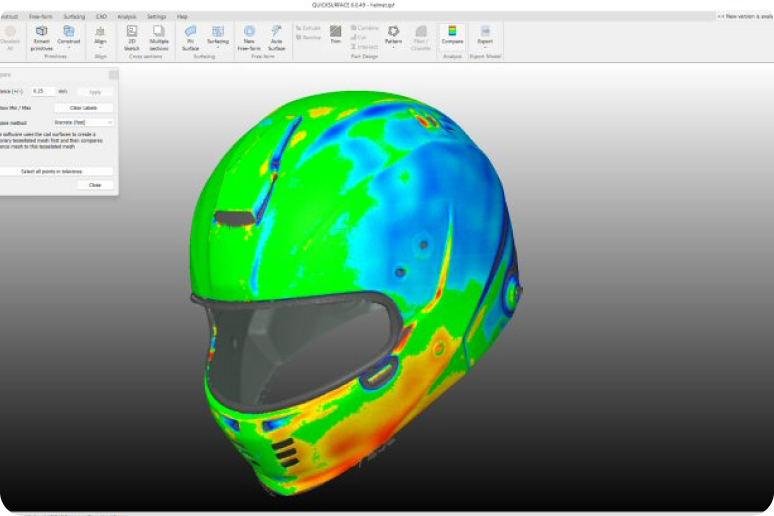

Confidently verify your models, reduce errors, and maintain strict adherence to specifications, boosting efficiency and product quality throughout the reverse engineering and manufacturing cycle.

Get your design production-ready by adjusting draft angles to ensure smooth and accurate molding.

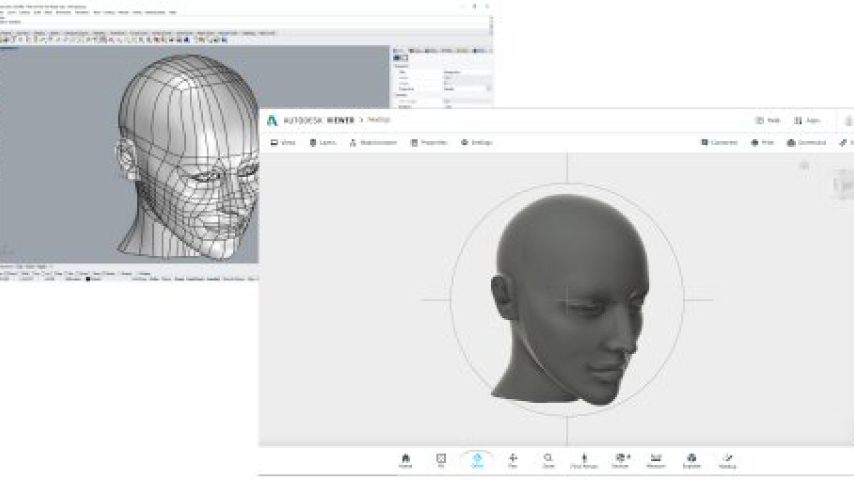

Revo Design can export your high-quality models in standard IGES or STEP file formats to other CAD/CAM programs, enabling you to finish the entire CAD creation process.
