Revopoint Trackit SR 3D Scanner: Wireless Optical Tracking

Startseite

/

3D-Scanner

/

Trackit SR Detail

Trackit SR

Overview

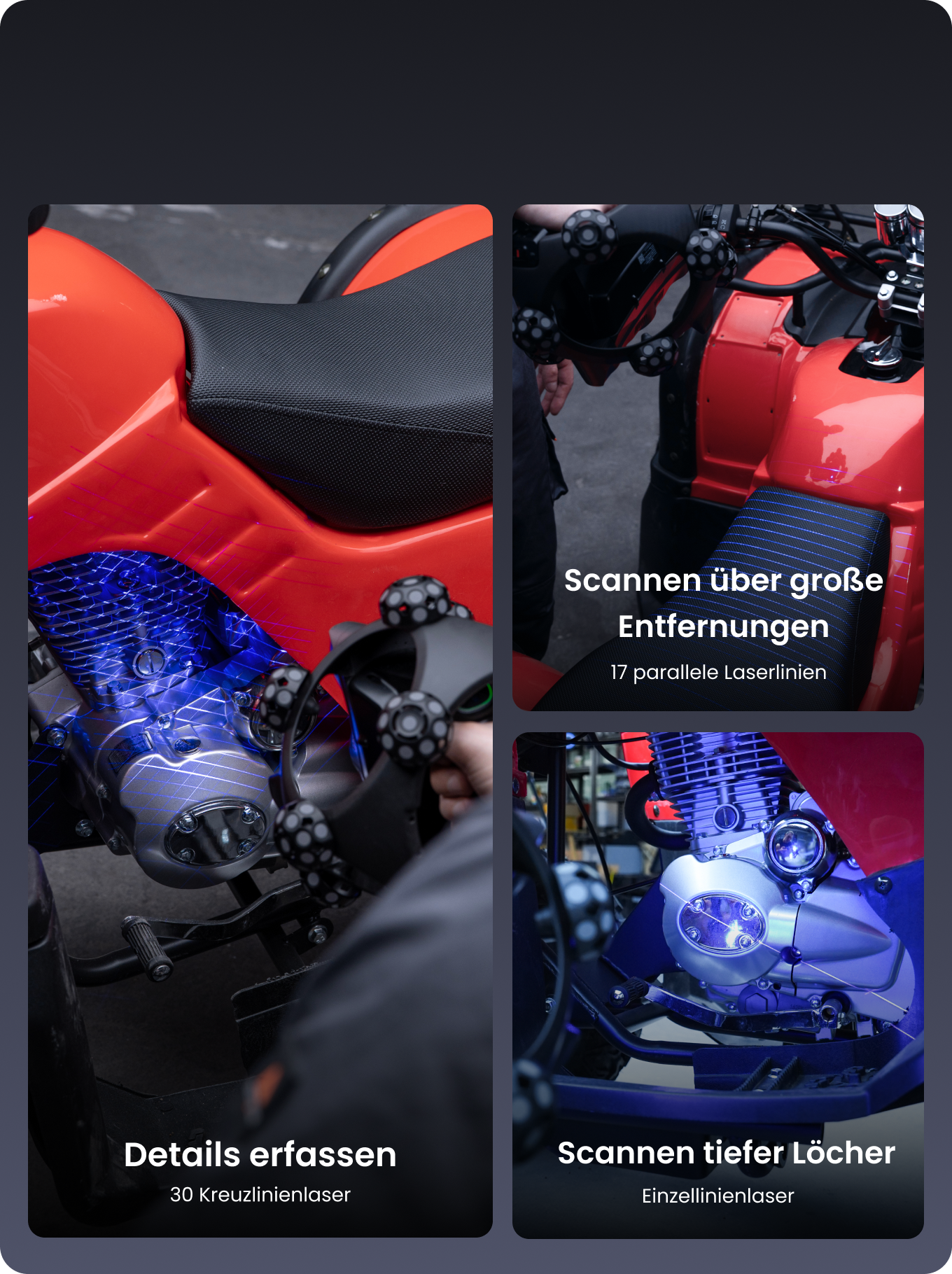

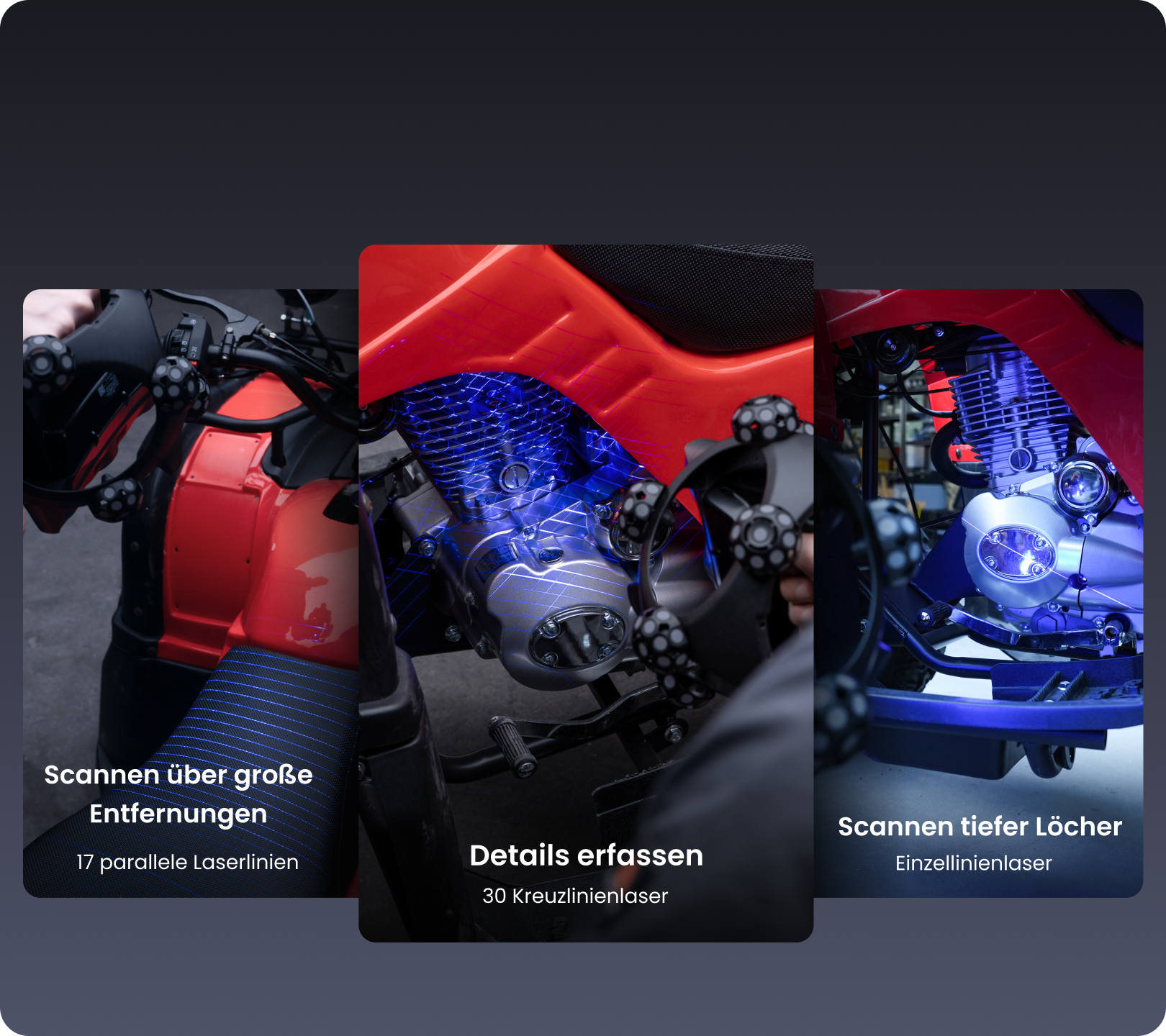

3 Scanning Modes

0.02 + 0.04 mm × L (m)

High Accuracy Scans

Move With Freedom

Wireless Scans

Wireless Multi-station Scans

Fast Setup for Large Workpiece Scans

Fast Warmup

Real-time Temperature Monitoring

Marker-free Scans

Powerful Optical Tracking

Capture Small to Big Objects

10 mm to 4 m

Detailed Texture Mapping

Vivid Color Create

Scan Anywhere

Lightweight 1 kg Handheld Scanner

Exceptional Outdoor Scans

Up to

Post-processing Software

Revo Measurement Software

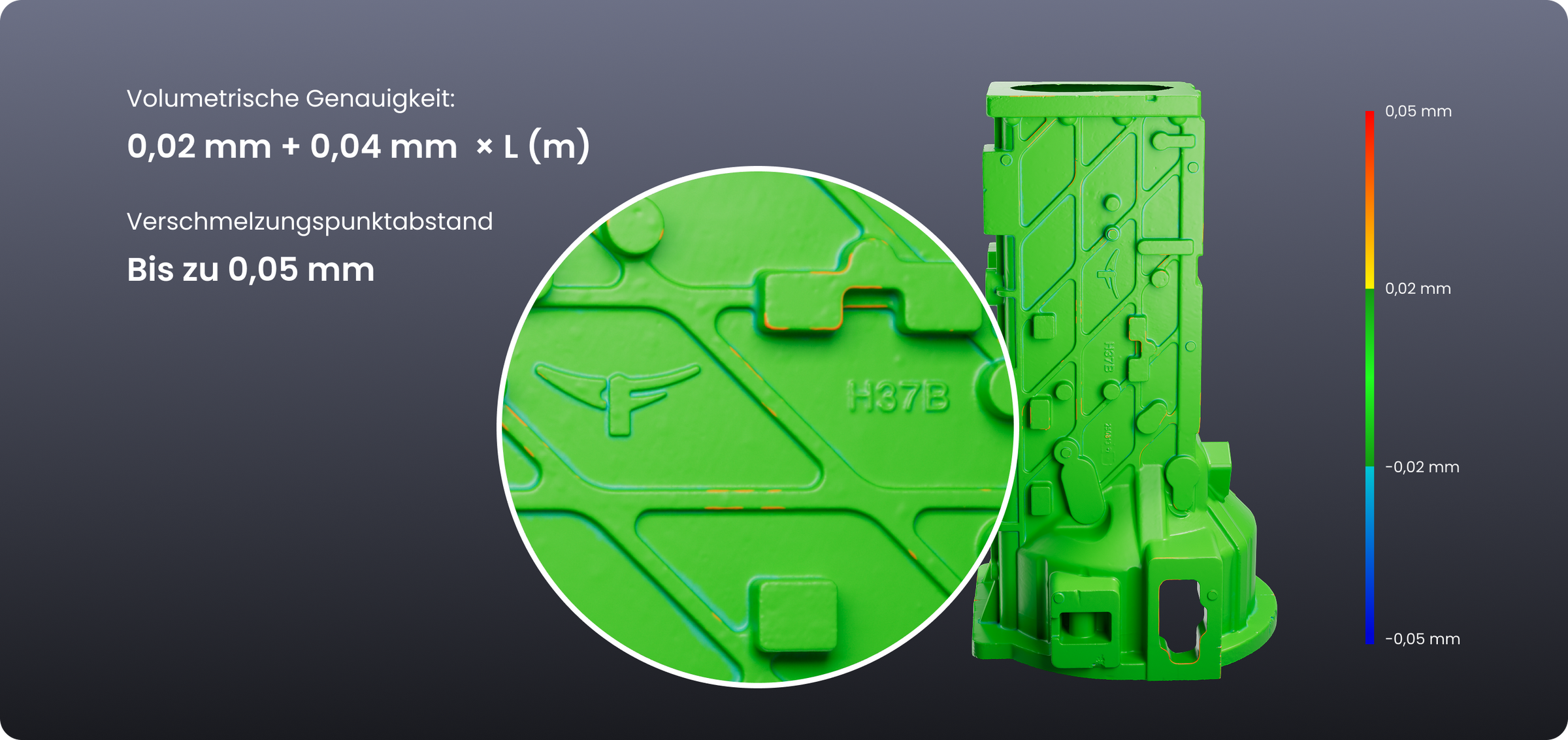

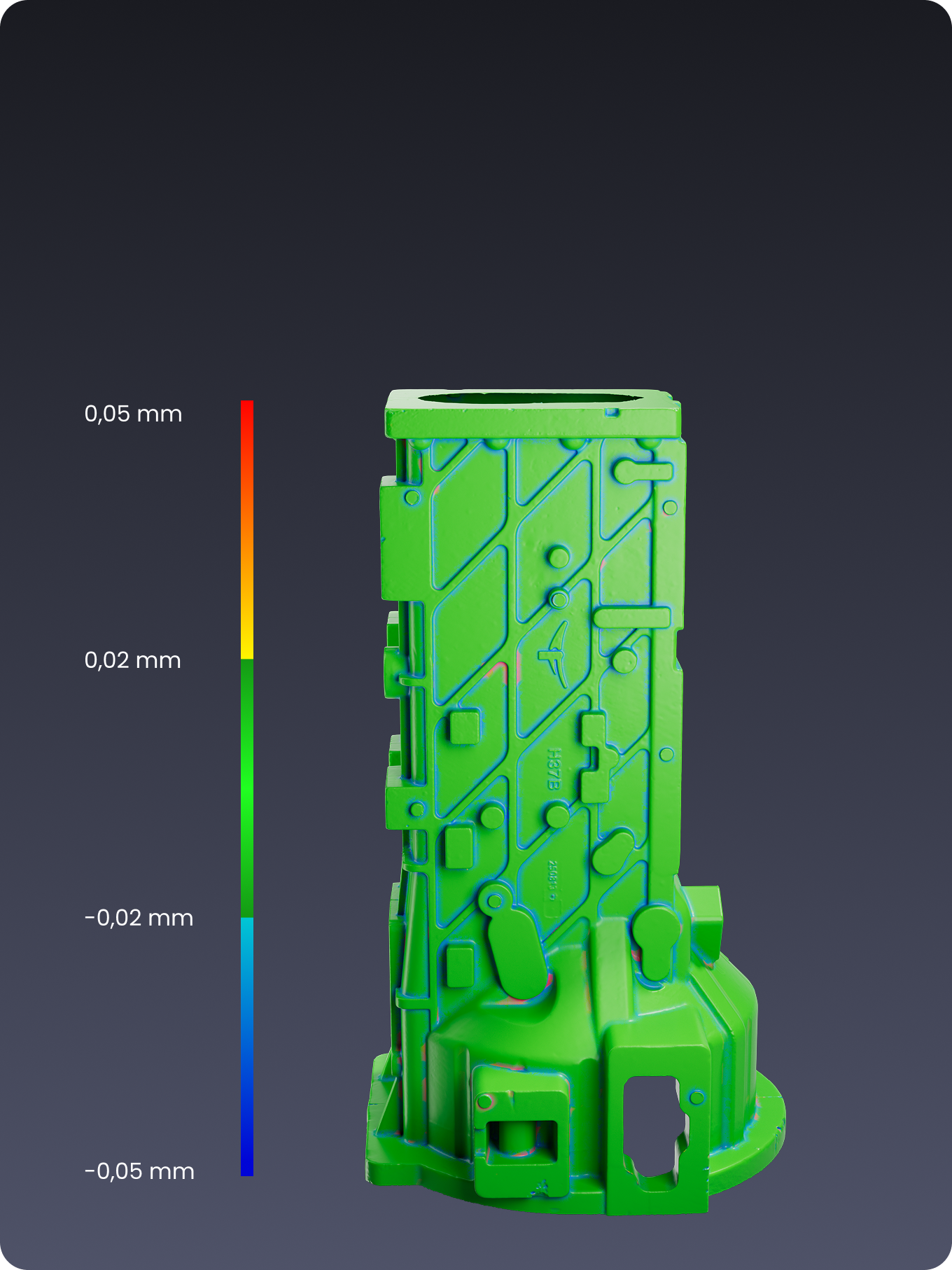

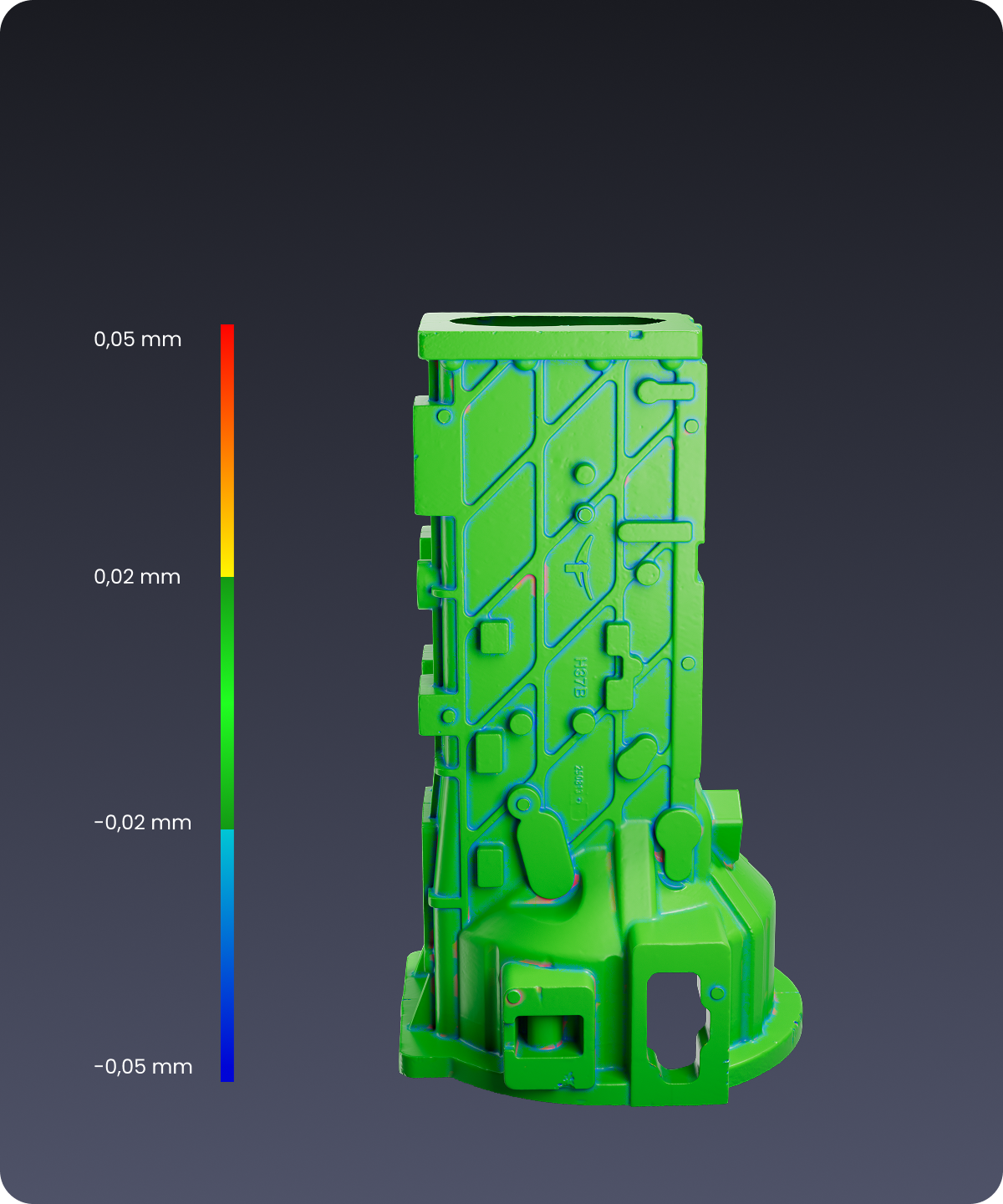

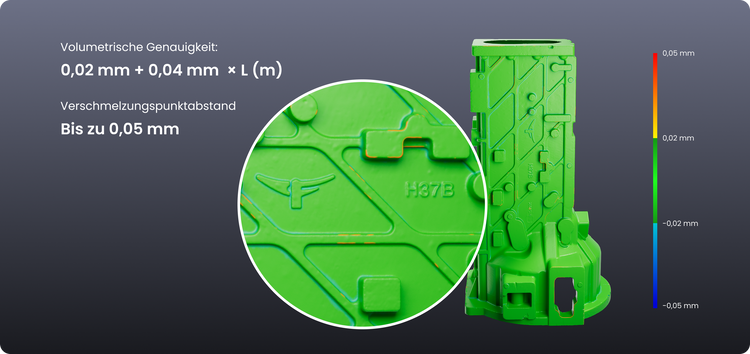

Superb Accuracy

Create highly detailed 3D models ready for dimensional inspection, quality control, or scan-to-CAD
conversion for reverse engineering.

On-Site Accuracy Verification

Ensure stable, reliable on-site accuracy verification with the metrology-grade carbon fiber ball plate*. Engineered to withstand ambient temperature changes, it pairs seamlessly with Revo Measure* software for fast, real-time performance confirmation in the field.

*Ball Plate & Revo Measure: Included in CMM Edition (also sold separately).

Portable Larger Workpiece Scans

Maximum Tracking Frame Area:
2075 × 1778 mm @ 2500 mm

Maximum Tracking Frame Area:
0.8 to 2.5 m

Fast Marker-Free Scans

Advanced optical tracking enables Trackit SR to follow its position in real time, delivering high-accuracy 3D scans without time-consuming marker application and removal on black and metal objects. Ideal for parts ranging from 10 mm to 4 m, its dual-camera base station maximizes efficiency in demanding workflows.

Always Accurate, Never Wait

Built-in active heating reaches peak thermal stability within 2 minutes. Internal and external temperature
sensors continuously monitor conditions throughout every scan.

Move Freely, Scan Wirelessly

Move freely without worries about cables tangling or snagging. Trackit SR’s scanner features a swappable battery* and Wi-Fi 6 for direct streaming to your PC, or mirror the scan view to a mobile device for remote control and real-time previews. It also operates wirelessly and independently for standalone marker scanning.

*Scanner Battery Life: Up to 2.5 hours.

Wireless Multi-station Scan Setup

Wirelessly reposition the battery-powered Tracker to scan large workpieces without cable clutter. With just 5 shared reference points between stations, Trackit SR’s anchor block system ensures accurate, reliable frame stitching every time.

*Battery Grip is sold separately.

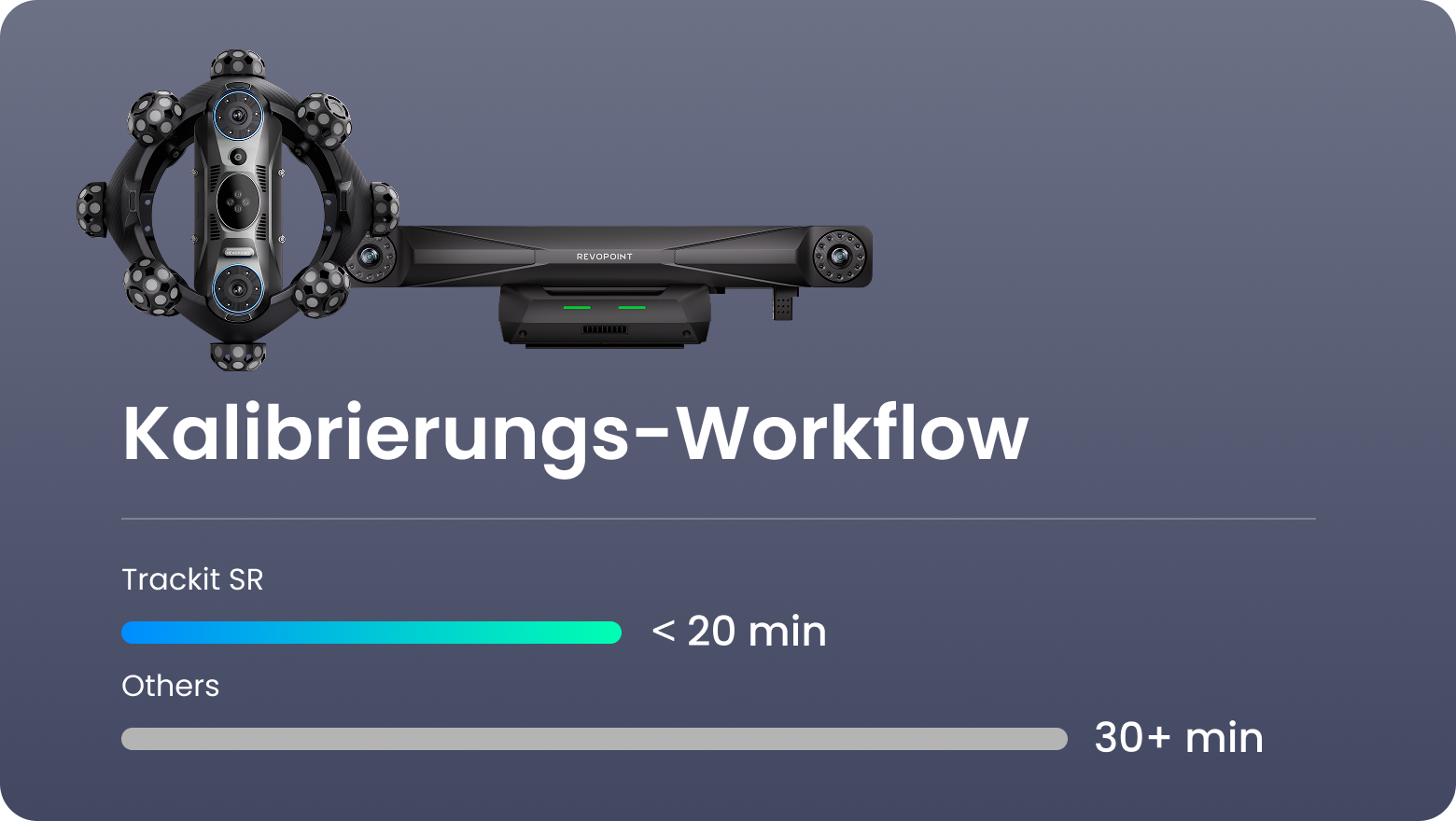

50% Faster Calibration Workflow*

Featuring an automated gimbal calibration system, the Tracker enables rapid multi-pose calibration — with flexible scanner and hand-eye calibration completing full-process setup within 20 minutes.

*Compared to Others

Portable and Lightweight

Weighing a total of 2.5 kg, the Tracker (1.5 kg) and Scanner (1 kg), along with their accessories, fit into a single
durable wheeled carry case for safe and easy transport to worksites.

Robust Carbon Fiber Frame

Ensure reliable scans with Trackit SR’s robustly engineered one-piece carbon fiber frame. Both the Scanner's target spheres and the Tracker's frame are made of high-strength and lightweight carbon fiber, making them easier to carry for extended periods of mobile scanning.

Detailed Texture Mapping

Capture surface textures in vivid detail using Trackit SR’s high-resolution RGB camera. Generate realistic 3D models or leverage texture data in Revo Measure for accurate measurements and professional reporting.

Smart Temperature Monitoring

With 2 minutes warm-up times and high-sensitivity sensors monitoring temperature changes, Trackit SR is ready for scans quickly and maintains stable scanning temperatures throughout, ensuring accuracy.

Revo Track: Free Scanning Software

Intuitively create and export 3D models in four easy steps using Trackit SR’s free and powerful software.

Works On: Windows
Output Formats: PLY, OBJ, STL, ASC, 3MF, GLTF, FBX

Scan Process Edit Export

Granular scan settings let you control every aspect of the scanning process, ensuring optimal point cloud capture.

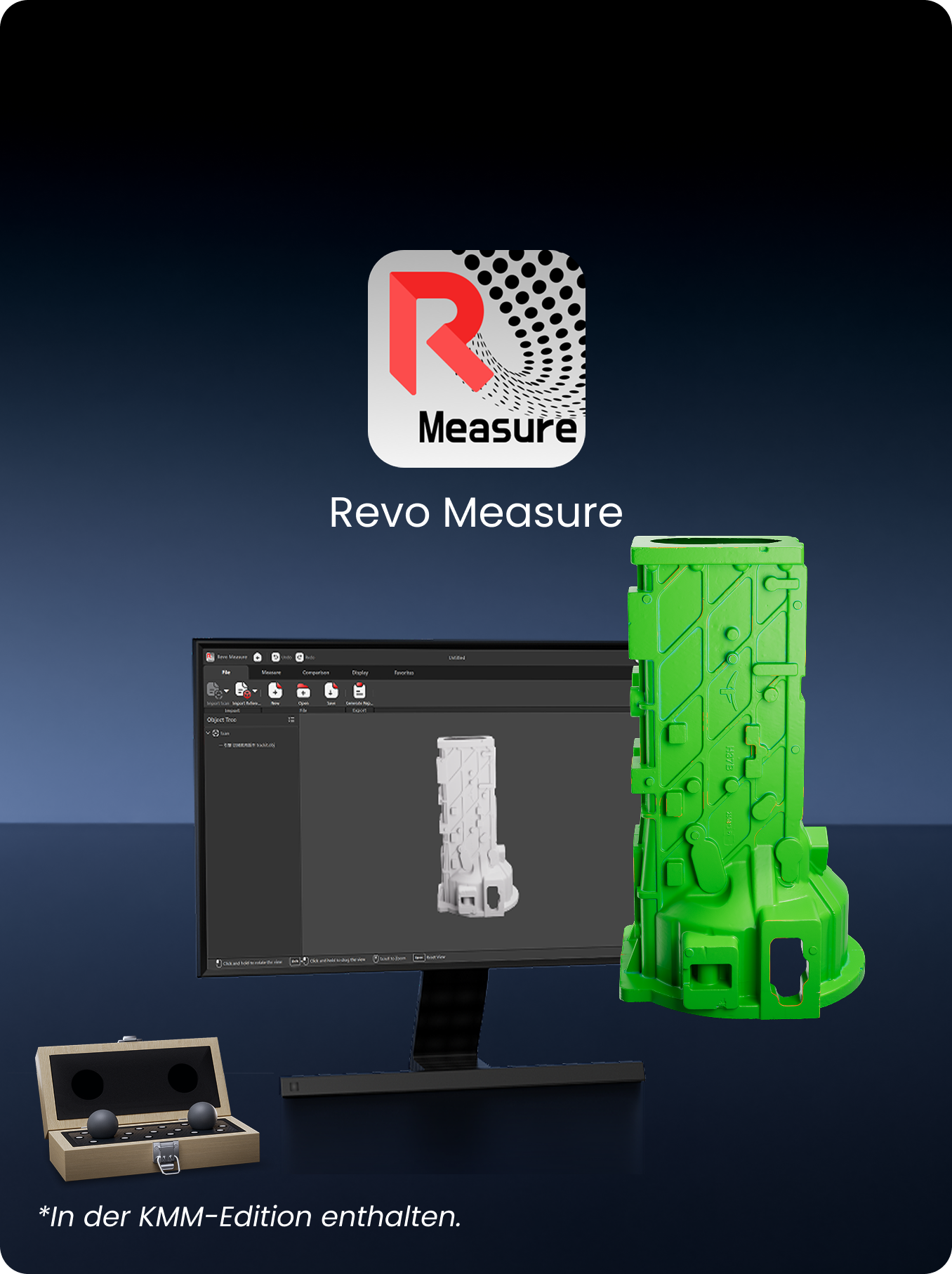

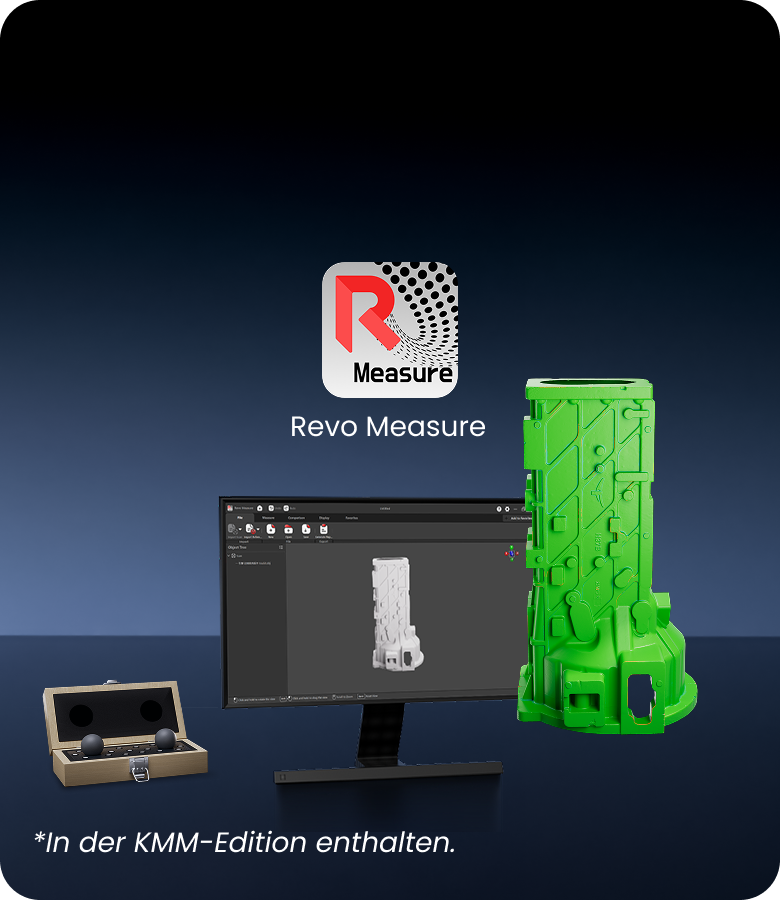

Revo Measure

Scans-to-Measurements

Transform your 3D scan data into accurate, verifiable measurements to ensure every part meets its design specifications. Powered by PTB-certified metrology algorithms, Revo Measure* delivers reliable, standards-based inspection for critical engineering and quality control workflows.

*Included in the CMM Edition.

Revo Design

Scans-to-CADs

Simplify converting 3D scan data into CAD with Revo Design*. Featuring powerful tools for mesh editing, freeform and parametric modeling, and scan-to-CAD workflows, Revo Design is perfect for reverse engineering, product development, and industrial design.
*Revo Design is sold separately.

Trackit SR 3D Model Gallery

Explore More >

Color Couch

Bike

ATV

Thin Workpiece

Professional Solutions

Automotive Applications

Efficiently capture complete vehicles or individual components without time-consuming marker placement, making it ideal for repair, reproduction, prototyping, and quality control.

Quality Control

Ensure product quality and streamline quality control with quickly created 3D models ready for dimension inspection.

Artistic Creation

Artistic Creation Capture fine surface details and textures across metal, plaster, ceramic, and wooden sculptures without marker placement — ideal for digital art, artifact reproduction, and VR content creation.

Rapid Prototyping

Trackit SR provides high-accuracy 3D scanning for fast prototyping and design verification. Quickly capture complex shapes to accelerate product development and shorten time-to-market.

Aerospace

Evaluate and repair aircraft efficiently with Trackit SR’s optical tracking system, rapidly capturing parts to assess wear and fatigue or create replacement components.

Why Choose Trackit SR

" With optical tracking, marker-free scanning, and wireless capability, the Trackit SR aims to meet the demand of industrial metrology, reverse engineering, and on-site quality inspection. "

" Trackit SR allows the manufacturer to bypass two typical hurdles of traditional laser tracking scanners: the application of reference marks on the object and the cable connection to the computer. "

" Trackit SR is an industrial-grade addition to the professional 3D scanner market, designed for high-accuracy work that can move from the measurement lab to the shop floor, and out into the field. "

" Die Kombination aus optischem Tracking (ohne Marker), völlig kabelloser Wi-Fi-6-Anbindung, dem flexiblen Standalone-Modus und den starken Lasermodi für dunkle Oberflächen sollte höchstwahrscheinlich eine Erleichterung im Workflow bringen. "

Lieferumfang

Trackit SR Tracking-3D-Scanner

Scanner

Tracker

Automatisch kalibrierendes Zweiachs-Gimbal

Stativ

Gimbal-Adapterplatte

Schnellspannklemme

Kalibrierungstafel

Kalibrierungsstab

Netzteil

Tracker-PC-Kabel
(Tracker – PC)

Scanner-PC-Kabel
(Scanner – PC)

Scanner-Kabel
(Tracker – Scanner)

Gimbal-Kabel (Tracker – Gimbal)

Kabelhülse

Marker × 20
(Magnetisch)

Marker × 200 (Haftmarker)

Transportkoffer mit Rollen

Scanner-Akku × 2

Scanner-Akku-Ladegerät

CMM-Edition

Trackit SR Standard-Edition +

Kugelplatte

Revo Measure Software (Ein-Jahres-Lizenz)
*Nur Windows 10/11 unterstützt.

Spezifikationen

Trackit SR 3D Scanner

Tracker

Single-frame Accuracy①

0.02 mm

Fused Point Distance, up to

0.05 mm

Depth Camera Resolution

2,000,000 Point/s

RGB Camera Resolution

/

Scanning Speed, up to

2,000,000 Point/s

Light Source②

Fine Mode: 30 Blue Cross Laser Lines Far Mode: 17 Blue Parallel Laser Lines Deep Hole Mode: 1 Blue Single Laser Line

Working Distance

Cross Laser Lines: 200 - 400 mm Parallel Laser Lines: 250 - 500 mm Single Laser Line: 200 - 400 mm

Single Capture Area at Nearest Distance

123 × 130 mm at 200 mm

Single Capture Area at Furthest Distance

330 × 325 mm at 500 mm

Wi-Fi

6

Weight

1.0 kg

Dimensions (L × W × H)

250 × 250 × 177 mm

Operating Temperature Range③

0 ℃ - 30 ℃

Output Formats

PLY, OBJ, STL, ASC, 3MF, GLTF, FBX

Material

Frame: Carbon Fiber Housing: Polycarbonate

Part Size Range (Recommended)

0.01 - 4 m

Volumetric Accuracy (Tracking system)

0.02 mm + 0.04 mm × L (m)

Working Distance

800 mm - 2500 mm

Minimum Tracking Frame

587 × 569 mm @ 800 mm

Maximum Tracking Frame

2075 × 1778 mm @ 2500 mm

Tracking Volume

3 m³

Camera Resolution (Tracking system)

/

Wi-Fi

6

Weight

1.5 kg

Dimensions (L × W × H)

441 × 111 × 103 mm

Tracking Band

NIR

User Recalibration

Manual Calibration

Supported Accessories

Calibration Board, Calibration Pole, Anchor Block, Battery Grip

Note:
① Accuracy are acquired in a controlled lab environment. Actual results might vary, subject to the operation environment.
② Class 2 Laser Safety Tips:
1) The product uses a Class 2 laser projector. Avoid looking directly at it at close range! Please refer to the Class 2 laser standard document for details.
2) To avoid retina damage, don't look directly into the laser beam through optical instruments capable of magnifying it (e.g., telescopes, and camera lenses).
3) To prevent laser reflection, avoid placing reflective surfaces like mirrors or glass in the path of the laser beam.
③ To ensure accuracy, it's recommended to use the product within an environment temperature range of 20℃ to 25℃ (68℉ to 77℉).
④ This product has flashing lights, which may not be suitable for people with photosensitive epilepsy.
