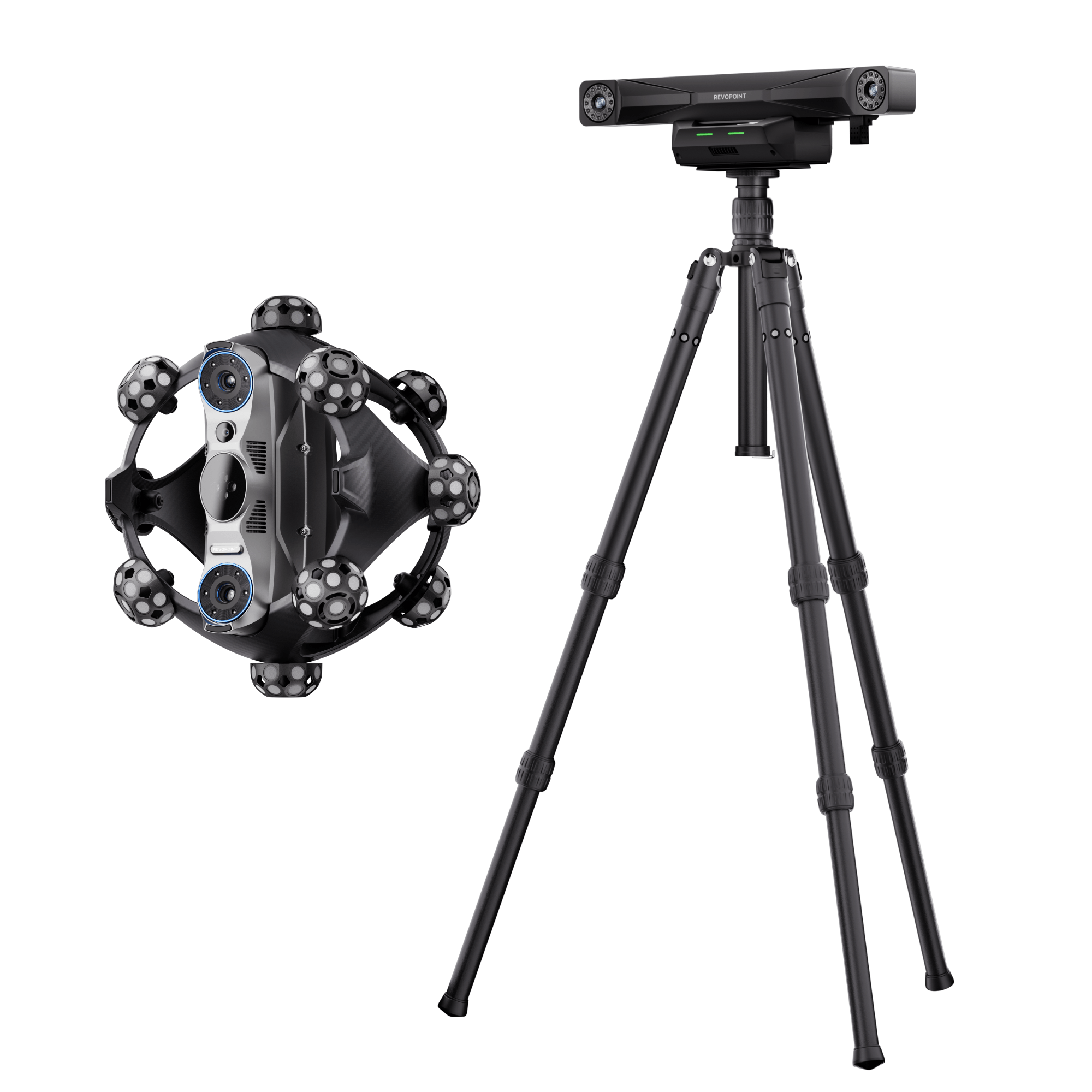

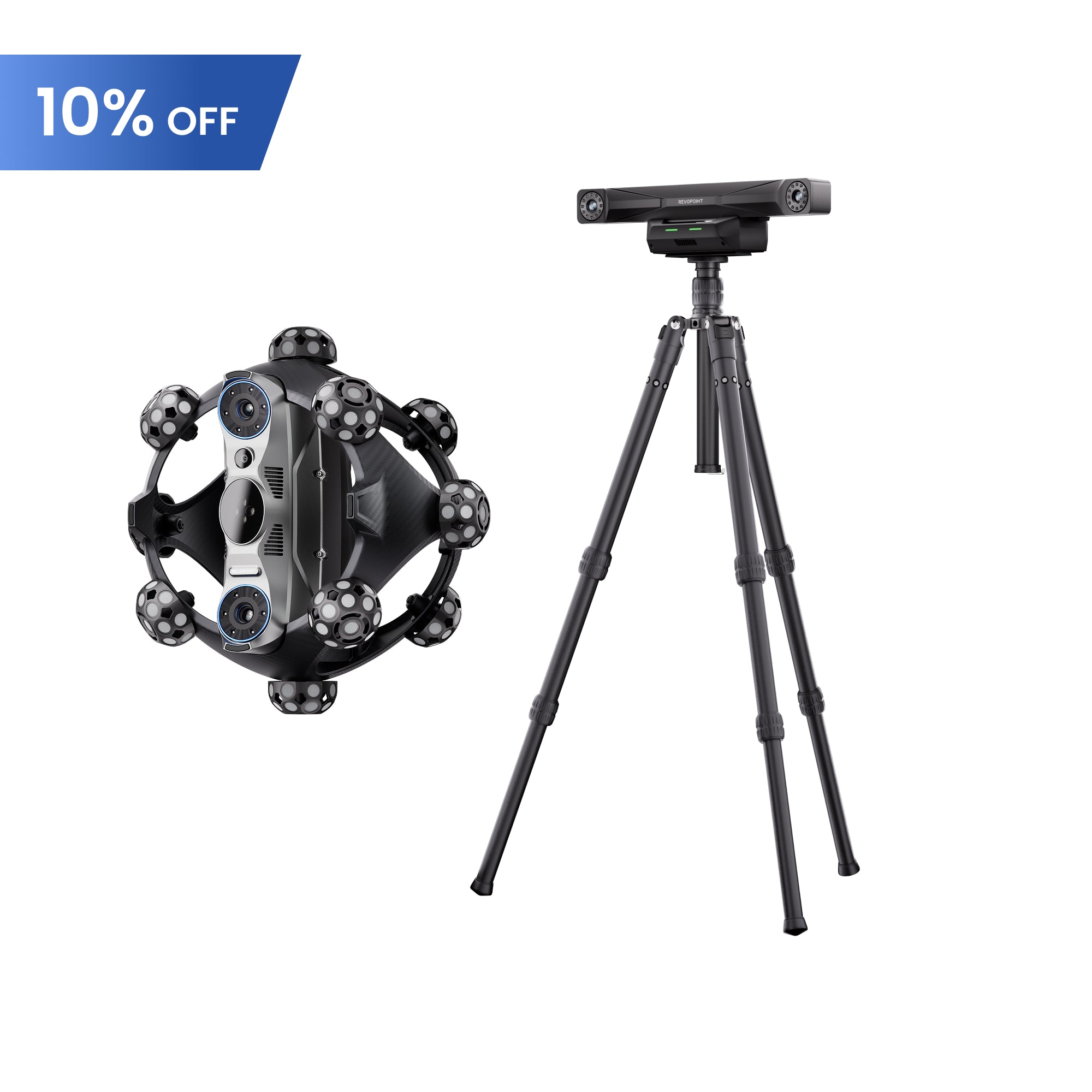

Revopoint Trackit SR: Wireless Optical Tracking 3D Scanner for Marker-free Scans
· Numérisation sans fil – Déplacez‑vous en toute liberté
· 30 lignes laser croisées
· 17 lignes laser parallèles
· Ligne laser unique
· Scans sans marqueurs
· Capture d'objets de 10 mm à 4 m
· Flux d'étalonnage efficace
· Portable et léger
· Surveillance intelligente de la température
Les unités précommandées seront expédiées à partir du 15 juillet. Les logiciels ne sont pas remboursables et sont livrés rapidement par voie numérique par e-mail.
Take a Closer Look
Markers Out.
Wireless Freedom In.
Markers Out.
Wireless Freedom In.
Triple Blue Laser Capture
Details Capture -
30 Cross-line Lasers
Fast Scans -
17 Parallel Lines
Scan Deep Holes -
Single Line Laser
High Accuracy
0.02 mm + 0.04 mm × L (m)
Intelligent Tracking Scan
Move Freely, Scan Wirelessly
*Battery Life: Up to 2.5 hours.
Lightweight and Portable
Wireless Multi-station
Scan Setup
Robust Carbon Fiber Frame
Detailed Texture Mapping
Always Accurate, Never Wait
Revo Track Free Post-
processing Software
Output Formats: PLY, OBJ, STL, ASC, 3MF, GLTF, FBX
Revo Design -
Scans-to-CADs
Revo Measure - Scans-
to-Measurements
*Included in the CMM Edition.
30 Cross-line Lasers
17 Parallel Lines
Single Line Laser
0.02 mm + 0.04 mm × L (m)
*Battery Life: Up to 2.5 hours.
Scan Setup
processing Software
Output Formats: PLY, OBJ, STL, ASC, 3MF, GLTF, FBX
Scans-to-CADs
to-Measurements
*Included in the CMM Edition.
Trackit SR 3D Model Gallery
Color Couch
Bike
ATV
Thin Workpiece
Contenu de la boîte
Édition Standard
Scanner
Tracker
Cardan bi‑axial à étalonnage automatique
Trépied
Plaque d'adaptation pour cardan
Raccord à dégagement rapide
Carte d'étalonnage
Perche d'étalonnage
Adaptateur secteur
Câble Tracker – PC
(Tracker vers PC)
Câble Scanner – PC
(Scanner vers PC)
Câble Scanner
(Tracker vers Scanner)
Câble cardan
(Tracker vers cardan)
Gaine de câbles
Marqueurs × 20 (magnétiques)
Marqueurs × 200 (autocollants)
Étui avec Roulettes
Batteries scanner × 2
Chargeur pour batteries scanner
Édition CMM
Plaque à billes
Logiciel Revo Measure (licence 1 an)
*Windows 10/11 uniquement.
Plus de services
Vous ne savez pas si un scanner 3D Revopoint convient à votre projet ? Envoyez‑nous votre échantillon, nous le scannerons avec le scanner de votre choix, puis nous vous enverrons un modèle STL/OBJ haute précision et un rapport d'adéquation.
Power Up Your Trackit SR: Compatible Software
Spécifications
Trackit SR 3D Scanner
Tracker
FAQ
What are the differences between Trackit SR’s three scanning modes?
(1) 30 Cross-line Laser Mode: Provides high-precision and high-efficiency scanning and enables direct scanning of black, reflective, and metallic surfaces without markers.
(2) 17 Parallel-line Laser Mode: With a larger working distance, it is suitable for quickly scanning larger objects.
(3) Single-line Laser Mode: Projects a high-quality blue laser line and is suitable for fine scanning of narrow areas, such as deep holes and grooves, ensuring complete capture of complex structures.
Can I 3D print the 3D models created by Trackit SR?
Yes, the models can be exported in the STL, OBJ, and 3MF formats, which are compatible with most 3D printing slicer software.
Can the 3D models be imported into design software?
Yes, Revo Track supports various file formats compatible with most design software, such as QuickSurface, Geomagic, PolyWorks, Blender, Maya, Rhino, ZBrush, Fusion 360, etc. The supported formats are as follows:
Point Cloud models: PLY, OBJ, ASC
Mesh models: PLY, OBJ, STL, FBX, GLTF, 3MF
Texture models: PLY, OBJ, FBX, GLTF
Can I connect Trackit SR’s Scanner to a PC via Wi-Fi?
Yes, both the Scanner and Tracker can connect to a PC wirelessly via Wi-Fi 6.
Can Trackit SR scan the object with electronic components? Will the laser cause damage?
No, the laser will not damage electronic components if a minimum distance of 200 mm is maintained.
Note: Do not position the components too close to the scanner's laser outlet, as the laser emission area has a high energy density.
What is Trackit SR’s operating temperature range?
For optimal accuracy, it is recommended to use the device within an ambient temperature range of 20°C to 25°C (68°F to 77°F).
Do I need to use markers during scans?
Markers are needed in the following two scenarios:
1) When using the Scanner as a standalone 3D scanner in Marker Scan mode, markers must be placed on the object's surface for frame alignment.
2) When using the Trackit SR in multi-position scan mode, markers serve as global marker coordinates for data alignment when repositioning the Tracker.
How do I calibrate Trackit SR?
Revo Track software enables users to perform the complete Trackit SR calibration process, including Scanner Calibration, Tracker Calibration, and Hand-Eye Calibration.
Open Revo Track and click "Scanner Calibration" in the lower-left corner of the Home page to enter the calibration interface. Once the device has finished warming up, follow the on-screen instructions to import the SN information, perform an accuracy check, and complete the calibration process.
What is Revo Measure? What measurement features does it offer?
Revo Measure is a professional 3D data measurement and analysis software. The software offers dimension measurement (length, angle, volume, etc.), GD&T analysis (geometric dimensioning and tolerancing), deviation analysis (comparing scan data with CAD models), cross-section creation and measurement, and other functions. It also supports generating a deviation color map to visually display error distributions.
Does Revo Measure have to be used with a Revopoint scanner? Can data from other devices be imported?
No, Revo Measure can also work with data from other 3D scanners. The software supports importing point cloud and mesh models in .ply format. However, with a Revopoint scanner, you can jump directly to measurement with one click and retain texture information.
