Aperçu
Revopoint INSPIRE
Our Most Cost-Effective 3D Scanner
Technology
Binocular Dual-Camera Infrared Light
Seamless Connectivity
Wi-Fi 6 & USB Type-C

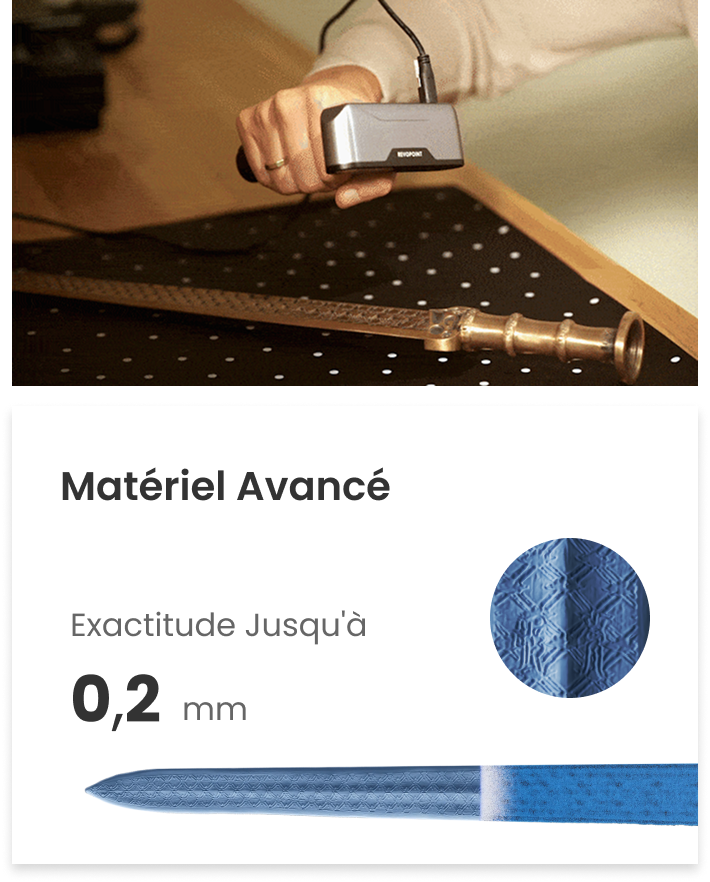

Accurate 3D Model Creation
Become a 3D modeling wizard with Revopoint INSPIRE 3D scanner's engineering-grade accuracy of up to 0.2mm and fast 14 fps to 18 fps scanning speeds, delivering ready-to use 3D models quickly.
Compact Versatility
With a compact 140g pocketable body, INSPIRE scanner can go everywhere and works as a handheld or turntable 3D scanner. It even connects to your Android or iOS smartphone for accessible on-the-go mobile scanning.
Popping Color Scans
Capture sharper scans as INSPIRE automatically removes faulty frames caused by unsteady hands or sudden movement with its 9-axis IMU (inertial measurement unit) and smart algorithms.
User-friendly Maker Tracking
Scan featureless objects with ease using Magic Mat (a 50cm x 50cm mat with pre-placed marker points) and INSPIRE's dual infrared LEDs, increasing marker visibility and smart algorithms stitching the frames together.
High-Performance Software
Revo Scan 5 is your portal to intuitive 3D scanning and powerful editing. And it runs on nearly everything, with full support for iOS, Android, Windows, and macOS devices. Export your models in STL, PLY, or OBJ formats for compatibility with most CAD, 3D modeling, and slicer software.
Revo Scan 5
Integrates model scanning, post-processing, and multi-model alignment functionalities
Learn More >
The Buzz on INSPIRE
“The new Revopoint INSPIRE 3D Scanner offers a wide range of features for straightforward, high-quality 3D scanning. ”
Models Made With INSPIRE
Click to Explore
Applications
3D Printing
Stop relying on others for your 3D prints and start making ready-to-import 3D models with INSPIRE.
Historical Preservation
Get accurate full-color scans of historical artifacts and antiques to aid in their restoration, preservation, or for educational purposes.
Mod a Game
Add a unique twist to your favorite video games by creating and importing a scan of your face, pet, clothes, or anything you want into the game engine.
Explore Digital Design
Explore your creativity by capturing models with INSPIRE, then transform them however you want in 3D modeling software to create something entirely new.
Top Accessories
Large Turntable
Scan large objects or people even faster with the Large Turntable. It has a maximum load of 200 kg and a powerful motor, keeping the table spinning smoothly even at max weight. Adjust its speed and rotation on the fly through its remote control or app.
COMMANDER
Dual-axis Turntable
Simplify the scanning process and eliminate the need for object repositioning during scanning with the Dual-axis Turntable’s adjustable speed rotation, 30°tilt, and 5kg max load.
COMMANDER
Specifications
Product Name
Revopoint INSPIRE
Scanning Environment
Indoors and Outdoors
Technology
Dual-camera Infrared Structured Light
Scanner Weight
140 g
Single-frame Accuracy
Up to 0.2 mm
Dimensions (L x W x H)
132 × 45 x 27 mm
Fused Point Distance
Up to 0.1 mm
3D Printing Compatible
Yes
Single Capture Area
Nearest Distance
162 × 111 mm at 250 mm
Single Capture Area
Furthest Distance
308 × 225 mm at 500 mm
Compatible Operating Systems
Windows 10/11, Android,
IOS, macos
Working Distance
250 mm ~ 500 mm
Auxiliary Lighting
2 IR LEDS / 1 Flash LED
Minimum Scan Volume
50 × 50 x 50 mm
Color Scanning
Yes
Scanning Speed,up to
18 fps
Connector Type
USB Type-C
IMU
9-axis
External Controls
Buttons 1
3D Light Source
Class 1 Infrared Light
Output Formats
PLY, OBJ, and STL
Tracking Methods
Feature, Marker
PC Requirements (macos)
RAM: ≥8GB
CPU (or better):
Ml Pro/Ml Max/Ml Ultra
M2/M2 Pro/M2 Max/M2 Ultra
M3/M3 Pro/M3 Max
PC Requirements
(Windows)
RAM: ≥16GB
CPU (or better):
i5 12th/13th/14th
i7 12th/13th/14th
i9 all series
Special Object Scanning
Use scanning spray for transparent,
Reviews on YouTube
INSPIRE ’s
Brochure
Software Download
User-friendly scanning, editing, and model merging.
User-friendly scanning, editing, and model merging.
