Marker Block Kit
Free shipping for 3D scanners, 3-5 days fast receipt.
Safe and Reliable Payment Methods.
Easily Scan
Featureless Objects
Magnetically Attaches
Highly-reflective
Reusable
* Markers (6 mm) need to be applied to the blocks by the user.
Marker Block Kit
The Marker Block Kit* is a tracking aid designed to quickly provide multiple reference points from different angles during a 3D scan. The markers are reusable and can be easily combined to suit various needs. This kit greatly streamlines the workflow when preparing featureless objects for a scan or using MetroX's laser modes and improves the accuracy of marker tracking and alignment.
*Works with all Revopoint 3D scanners.

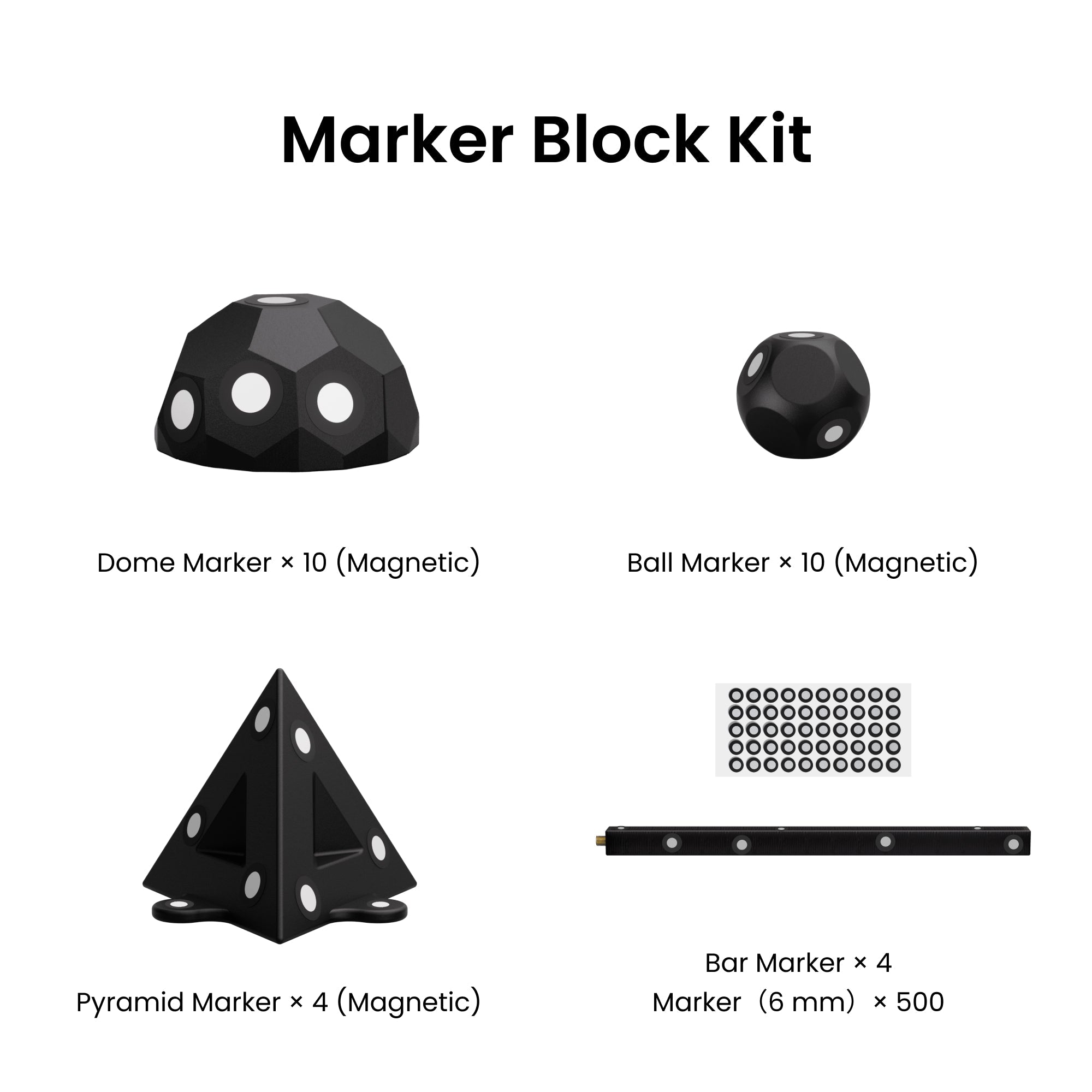

What’s in the Box
How to Use Them
You can freely combine various types of marker blocks. Place the marker blocks in or around the object to provide tracking points and distribute them evenly within the scanning area.
Ensure that the marker block is secure and does not shift or move during placement.
When scanning larger or irregular objects, the kit can be combined with high-contrast markers.
During the scanning process, all marker blocks should be positioned in an area that is not easily obscured to minimize tracking loss.
Placement Examples
Use Tips
1. Place the marker blocks in or around the object to provide tracking points.
2. The marker blocks should be stored in their case to prevent scratches or damage.
3. Ensure the marker blocks are clean and free of oil, dust, or other debris, as these can affect their recognition and extraction.
4. The markers on the blocks should remain clear and intact. If there is any wear or fading that could affect recognition, you can replace them with the new markers in the kit.
5. The pyramid markers have sharp edges. Please handle them with care to avoid injury.
Specifications
Name
Marker Block Kit
Parts Included
Ball Marker (Magnetic) × 10, Dome Marker (Magnetic) × 10, Pyramid Marker (Magnetic) × 4, Bar Marker × 4, Markers × 500
1) Ball Marker (Magnetic)
Diameter
30 mm
Weight
15 g/piece
Material
PP
Magnet Diameter
8 mm
2) Dome Marker (Magnetic)
Size
41 mm（Base）× 22 mm（H）
Weight
10 g/piece
Material
PP
Magnet Diameter
8 mm
3) Pyramid Marker (Magnetic)
Size
67 mm (Base) × 55 mm (H)
Weight
40 g/piece
Material
PP
Magnet Diameter
8 mm
4) Bar Marker
Size
12 × 12 × 205 mm
Weight
45 g/piece
Material
PP
5) Markers
Marker Size
Inner Diameter - 6 mm, Outer Diameter - 10 mm
Compatible Devices
POP, POP 2, POP 3, MINI, RANGE, MINI 2, RANGE 2, INSPIRE, MIRACO, MIRACO Pro, POP 3 Plus, MIRACO Plus, MetroX (Note: The kit comes with 6mm inner and 10mm outer markers. Users can replace the markers themselves if they need to use the kit with MINI or MINI 2.)

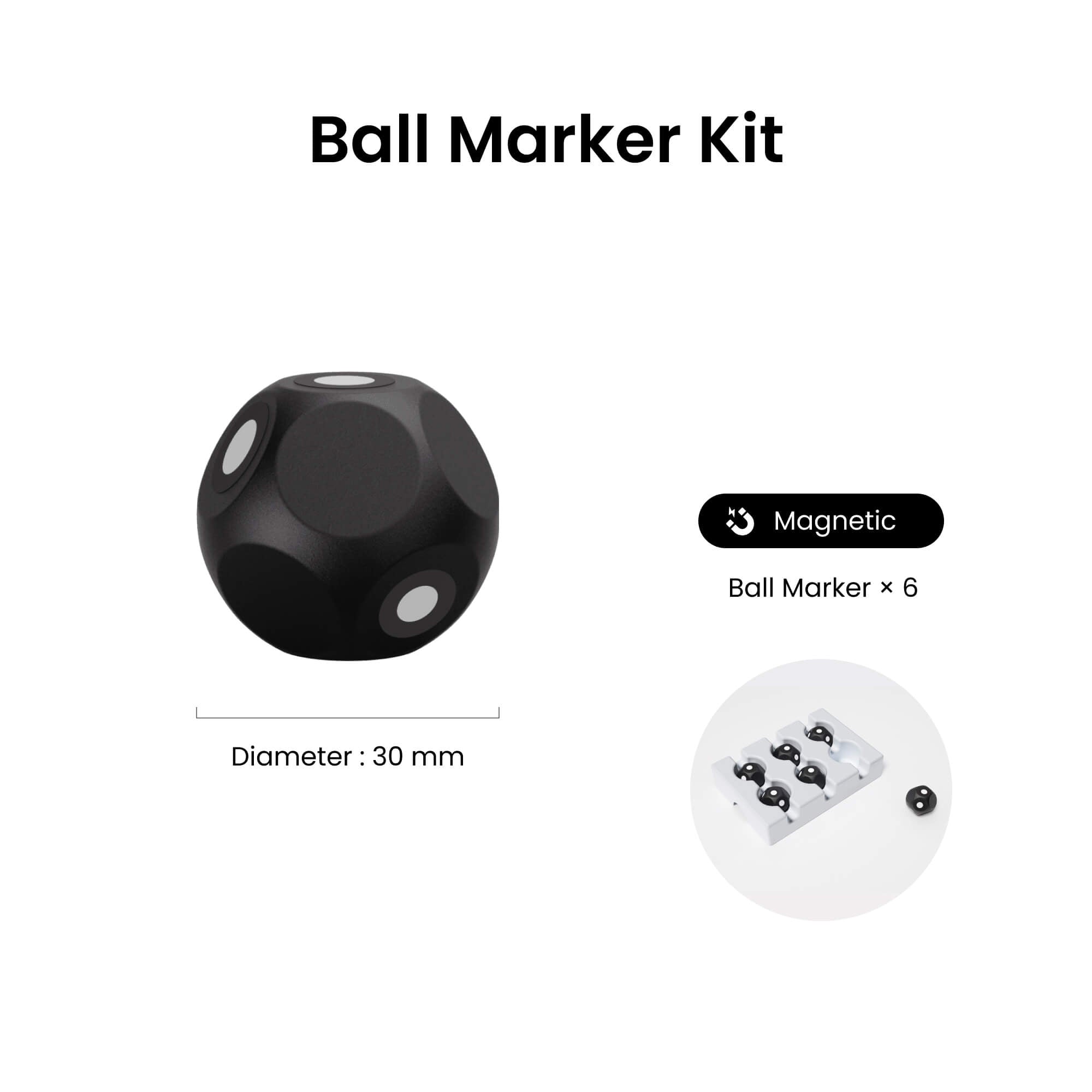

Name
Ball Marker Kit
Parts Included
Ball Marker (Magnetic) × 6

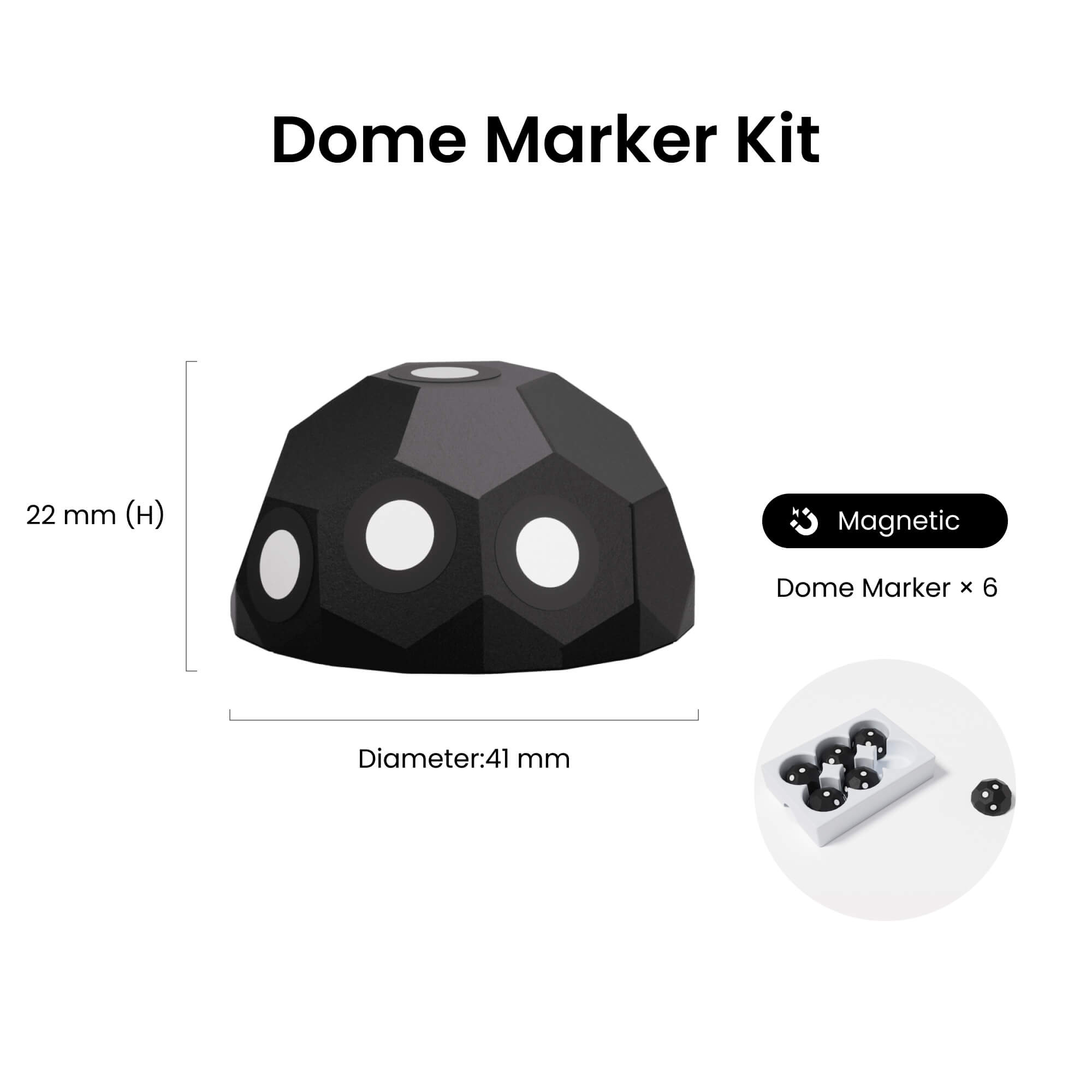

Name
Dome Marker Kit
Parts Included
Dome Marker (Magnetic) × 6

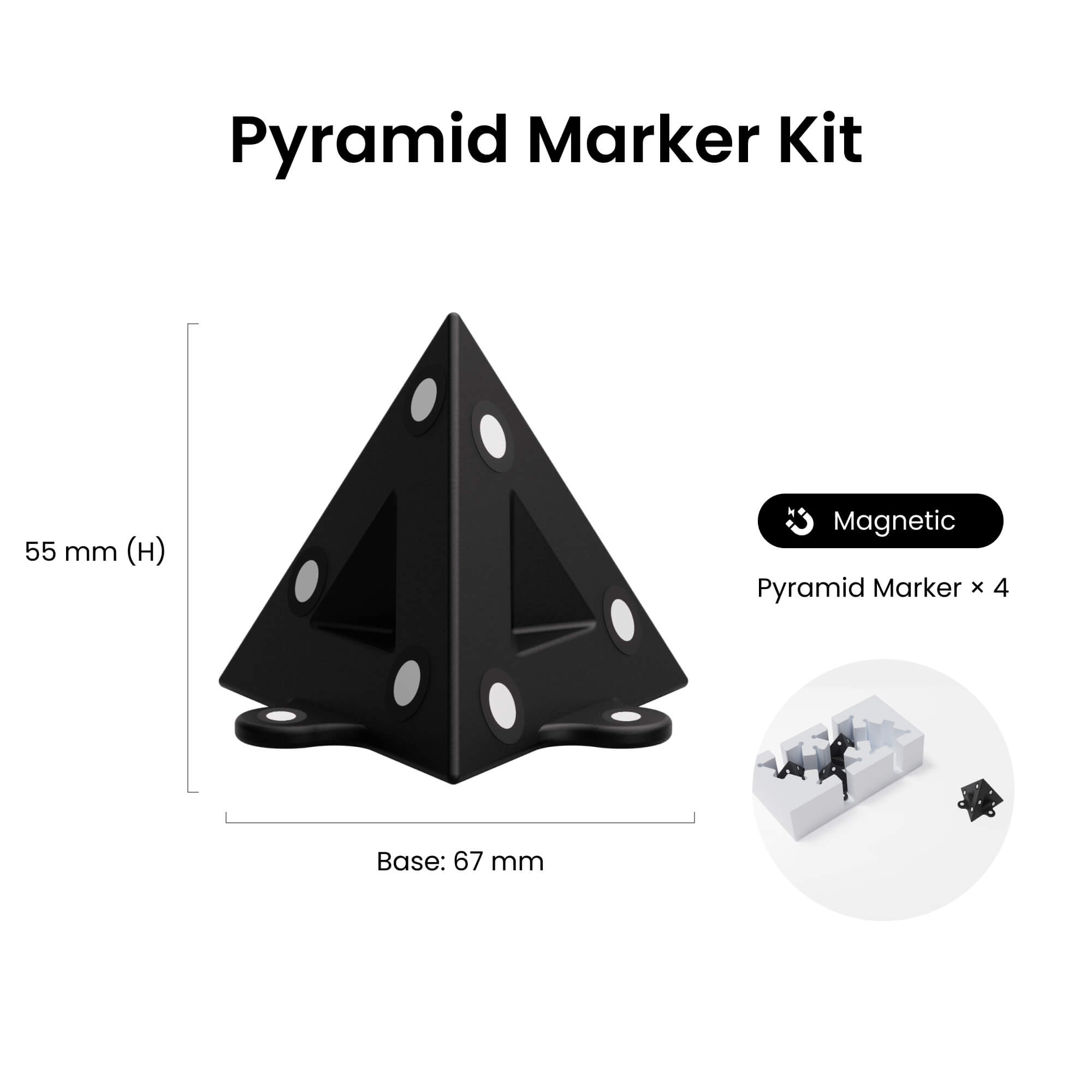

Name
Pyramid Marker Kit
Parts Included
Pyramid Marker (Magnetic) × 4
Name
Bar Marker Kit
Parts Included
Bar Marker × 4, Marker × 500
