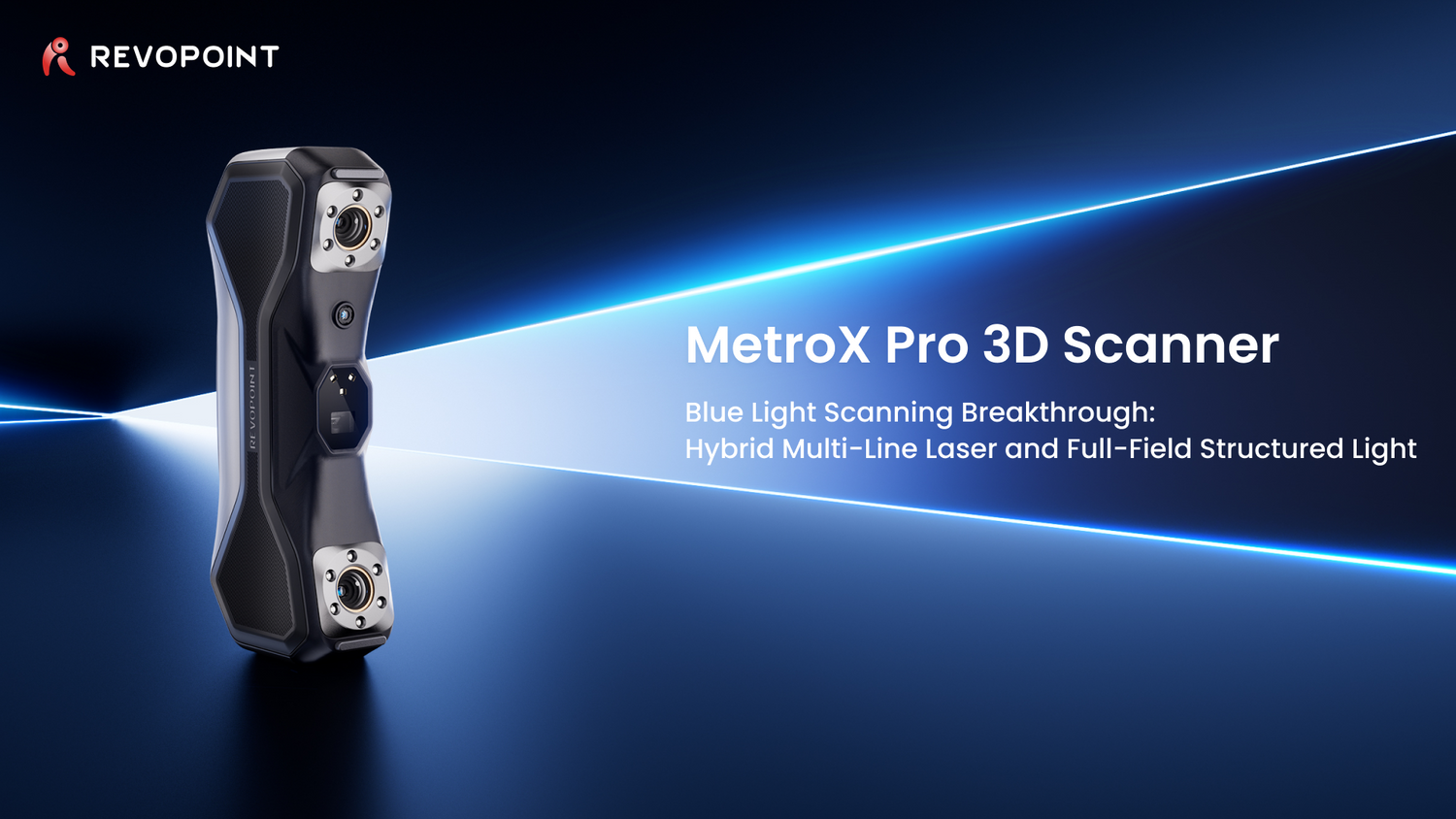

As the calendar moves through December, approaching Christmas and the New Year, the focus in the engineering community often shifts to preparing for the year ahead. It is against this seasonal backdrop of gratitude and renewal that the MetroX Pro serves as a timely addition to the professional toolkit.
Primarily, MetroX Pro provides a 20% increase in measurement reliability over MetroX, with volumetric accuracy improving to 0.02mm + 0.04mm/(L) m. This tighter tolerance is essential for professionals who need precise data for quality control and industrial inspection.
Additionally, the scan speeds are now 150% faster than the MetroX, thanks to the MetroX Pro's 30 blue laser cross lines, which can capture up to 2,000,000 points per second compared to the MetroX's 800,000. The number of parallel lines has also more than doubled, with the MetroX Pro now featuring 15 lines versus the MetroX's 7.
Finally, the MetroX Pro now also offers PC-to-mobile scan streaming via the Revo Mirror app, enabling easier movement around larger workpieces without having to hold your laptop in one hand.
Most importantly, these performance improvements are available at the original MetroX starting price, ensuring that upgraded specs don't require a higher budget.
For more information and pre-order inquiries, please visit: https://global.revopoint3d.com/news-metroxpro
|
Name |
MetroX Pro |
MetroX |
|
Scanning Type |
Handheld and Desktop |
Handheld and Desktop |
|
Technology |
Multi-line Laser Scan and Full-field Structured Light Scan |
Multi-line Laser Scan and Full-field Structured Light Scan |
|
Scannable Object Size |
Small to Medium |
Small to Medium |
|
Single-frame Precision, up to* |
0.01 mm |
0.01 mm |
|
Single-frame Accuracy, up to* |
0.02 mm |
0.02 mm |
|
Volumetric Accuracy |
0.02 mm + 0.04 mm × L (m), L is the length of the object. |
0.025 mm + 0.05 mm × L (m) L is the length of the object. |
|
Fused Point Distance, up to |
0.05 mm |
0.05 mm |
|
Working Distance |
200 ~ 400 mm |
200 ~ 400 mm |
|
Single Capture Area at Nearest Distance |
160 × 70 mm at 200 mm |
160 × 70 mm at 200 mm |
|
Single Capture Area at Furthest Distance |
320 × 215 mm at 400 mm |
320 × 215 mm at 400 mm |
|
Angular Field of View (H × V) |
43 × 33° |
43 × 33° |
|
Minimum Scan Volume |
10 × 10 × 10 mm |
10 × 10 × 10 mm |
|
Maximum Scan Volume |
1 × 1 × 1 m |
1 × 1 × 1 m |
|
Scanning Speed, up to |
Multi-line Laser Scan: 2,000,000 Points/s Full-field Structured Light Scan: 7,000,000 Points/s |
Multi-line Laser Scan: 800,000 Points/s Full-field Structured Light Scan: 7,000,000 Points/s |
|
RGB Camera Resolution |
2 Megapixels |
2 Megapixels |
|
Color Scanning |
Only in Auto Turntable Mode |
Only in Auto Turntable Mode |
|
Tracking Methods |
Feature, Marker, Global Marker |
Feature, Marker, Global Marker |
|
Outdoor Scanning* |
No |
No |
|
3D Light Source* |
30 Blue Cross Laser Lines 15 Blue Parallel Laser Lines 62 Line Blue Full-field Structured Light |
14 Blue Cross Laser Lines 7 Blue Parallel Laser Lines 62 Line Blue Full-field Structured Light |
|
Fill Lights* |
12 Blue LEDs |
12 Blue LEDs |
|
CPU |
4 core ARM, 2.0 GHz |
4 core ARM, 2.0 GHz |
|
Minimum PC Requirements* |
macOS CPU: M3 Pro/M4 RAM ≥ 18GB Windows CPU: Intel i7 13th Gen or AMD Ryzen 7 5800 RAM ≥ 32GB GPU: NVIDIA GeForce RTX 3060 (8GB)
Note: ① If you're unsure about the CPU configuration, please ensure that the CPU has cores≥8, threads≥16, and a base frequency ≥2.4GHz. ② Only in Laser Line Scanning modes, a dedicated graphics card is required for acceleration. AMD and MAC GPUs do not currently support acceleration. |
macOS CPU: M1 Pro/Max/Ultra RAM ≥ 16GB Windows CPU: Intel i7 13th Gen or AMD Ryzen 7 5800 RAM ≥ 32GB GPU: NVIDIA GeForce RTX 3060 (8GB)
Note: ① If you're unsure about the CPU configuration, please ensure that the CPU has cores≥8, threads≥16, and a base frequency ≥2.4GHz. ② Only in Laser Line Scanning modes, a dedicated graphics card is required for acceleration. AMD and MAC GPUs do not currently support acceleration. |
|
Recommended PC Requirements* |
macOS CPU: M4 Pro or better RAM ≥ 24GB
Windows CPU: Intel i9 12th Gen or better RAM ≥ 64GB GPU: NVIDIA RTX 4060 (8 GB) or better |
macOS CPU: M2 Pro/Max/Ultra, M3 Pro/Max/Ultra RAM ≥ 24GB Windows CPU: Intel i9 12th Gen or better RAM ≥ 64GB GPU: NVIDIA RTX 4060 (8 GB) or better |
|
Compatible Operating Systems |
Windows 10/11 (64-bit), macOS 11.0 or better |
Windows 10/11 (64-bit), macOS 11.0 or better |
|
Output File Formats |
PLY, OBJ, STL, ASC, 3MF, GLTF, FBX |
PLY, OBJ, STL, ASC, 3MF, GLTF, FBX |
|
Ready to Print 3D Models |
✔ |
✔ |
|
Connector Type |
USB Type-C to Type-C |
USB Type-C |
|
Power Requirements |
DC 12V, 3A |
DC 12V, 3A |
|
Dimensions (L × W × H) |
209 × 88 × 44 mm |
209 × 88 × 44 mm |
